16000 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Camera Screen (Optional)
The camera screen (not shown) displays camera options
and items for selecting and operating. The camera option
includes up to three different cameras to monitor drum
spooling and the area behind the crane.
Use Select buttons to select the camera screen on the Menu
screen. Press Enter button to access the screen.
Use Select buttons to select desired camera view.
Press Exit button until Menu screen appears.
Pressure Test and Calibration Screen
The Pressure Test and Calibration Screen (see Figure 3-61)
is used to initiate and monitor the four hydraulic test and
calibration procedures described in this section.
The screen shows the pump commands and pressure levels
for all primary crane functions. Use the data box in the upper
left corner of the screen to select and start a specific test or
calibration procedure.
Pressure Test and Calibration screen operates on two
levels.
Level 1 — Test data box highlighted blue.
Level 2 — Test data box highlighted red. Use Select buttons
to choose the test or calibration procedure.
All test and calibration procedures must be run at a particular
engine speed. If a test is started at the wrong speed, the
appropriate prompt shown below appears in the data box
and the procedure is aborted.
Engine Off
The yellow engine pressure 0 icon indicates that
the test must be run with engine off.
Engine Low Idle
The yellow engine pressure down arrow icon
indicates that the test must be run with engine at
low idle.
Engine High Idle
The yellow engine pressure up arrow icon
indicates that the test must be run with engine at
high idle.
The yellow open circuit icon indicates a circuit fault
that must be serviced immediately.
The yellow short to ground icon indicates a circuit
fault that must be serviced immediately.
Pressure Sender Test
See Figure 3-61 for the following procedure.
The pressure sender test calculates the zero-pressure
output level for each pressure sender. Pressure sender null
(0) must be within 0.65 to 1.35 volts.
Perform this test when:
- A new pressure sender is installed.
- A new controller node that monitors pressure
senders is installed.
- A new master node or master node software is
installed.
- Pressure readings are noticeably in error.
Be aware that if there is any residual pressure in the
system during the calibration process, the display
pressure reading in the cab may not reflect actual
system pressure. See Note on page 3-70
.
Test pressure senders as follows:
1. Stop engine and turn ignition switch to run position.
Push Enter button to go to Pressure Test and Calibration
screen from Menu screen.
2. Press Enter button to go to level 2. Use
Select buttons to show PRESSURE
SENDER icon in data box.
3. Press Confirm button to start test.
4. Test starts and percent of completion is displayed in data
box.
5. When test is complete, pressure sender icon reappears
in data box.
Pressure senders must show a signal within a specified
range during this test. Any sender signal out of this
range is highlighted yellow. Troubleshoot failed senders
to determine cause of fault.

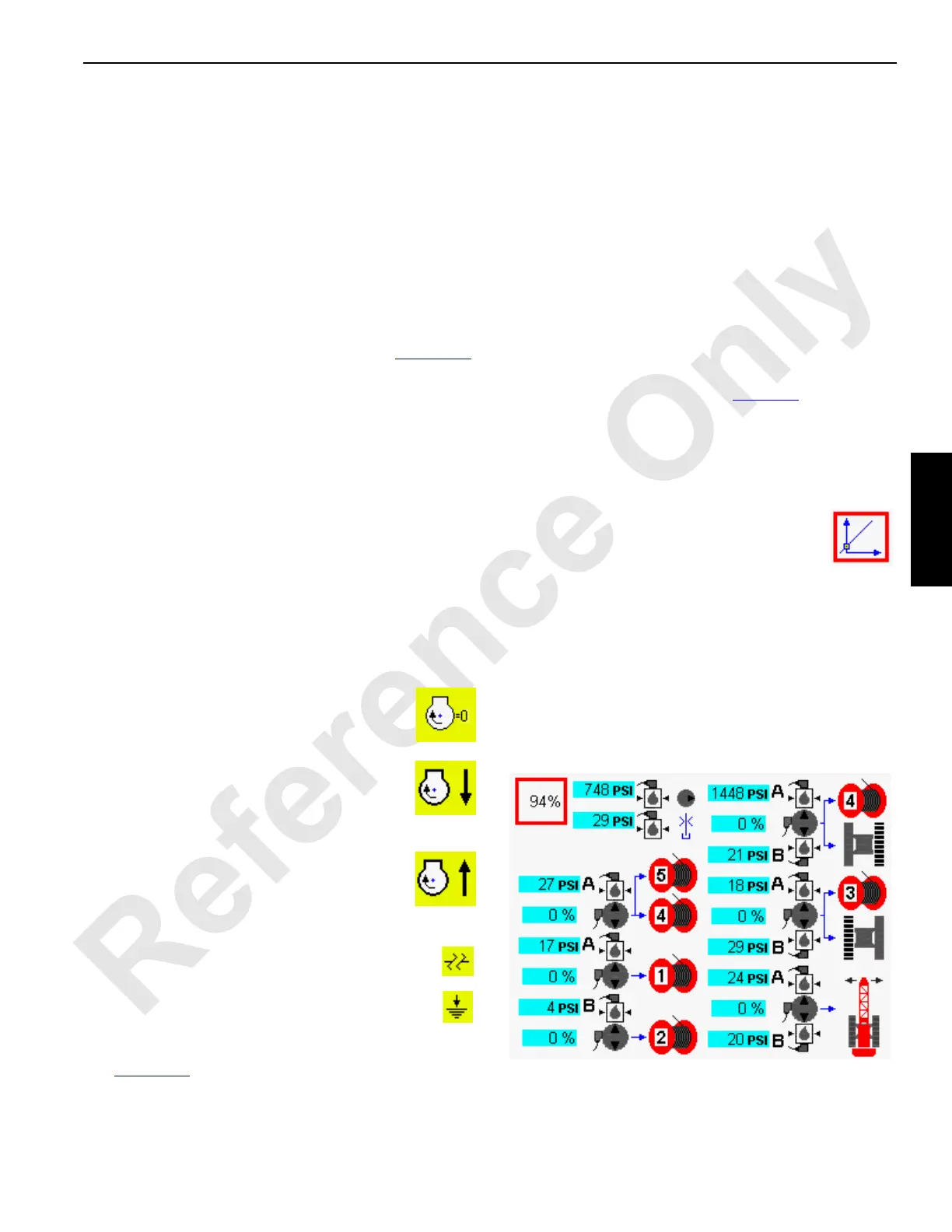

FIGURE 3-61
D16-26AA
Data
Box
