SET-UP AND INSTALLATION 16000 OPERATOR MANUAL
4-70
Published 05-09-17, Control # 011-29_v2
RIGGING WINCH OPERATION
If your crane is equipped with the optional rigging winch
(Drum 0) see the Rigging Winch Assembly drawing at the
end of this section for wire rope routing.
Selecting Rigging Winch Mode
See Figure 4-42 and Figure 4-43 in the following procedure.
TO TURN RIGGING WINCH MODE ON —
1. Go to Function Mode screen in main display.
2. In level 2, use the select buttons to enter selected drum
screen options. Select rigging winch data box
(Figure 4-42
).
NOTE: The rigging winch data box will only appear if this
feature is available.
3. In level 3, enter data box and use the select buttons to
turn ON rigging winch.
4. The yellow box with “I” icon appears when winch is ON.
5. Drum 4 handle (boom hoist) will now control the rigging
winch (Drum 0). “0” will appear in the indicator at the
boom hoist handle.
TO TURN RIGGING WINCH MODE OFF —
1. Go to Function Mode screen in main display.
2. In level 2, use the select buttons to enter selected drum
options screen. Select rigging winch data box
(Figure 4-42
).
3. In level 3, enter data box and use the select buttons to
turn OFF rigging winch.
NOTE: The rigging mode will automatically turn OFF when
power to the control system is turned off.
Operating Rigging Winch
Free-Spool Operation
The winch has a free-spool clutch which allows the drum
barrel to be disconnected from the drive mechanism. This
position allows the drum to turned by hand.
Past Production Figure 4-43
:
TO TURN FREE-SPOOL ON —
1. Pull out locking pin (1) and hold.
2. Pull out knob (2).
3. Release locking pin (1).
TO TURN FREE-SPOOL OFF —
1. Pull out locking pin (1) and hold.
2. Push knob (2) in.
3. Release locking pin (1).
Current Production Figure 4-44
:
TO TURN FREE-SPOOL ON —
1. Winch must be “at rest” and have no load on cable.
2. Rotate gear shifting lever (1) 90
o
up.
TO TURN FREE-SPOOL OFF —
1. Winch must be “at rest” and have no load on cable.
2. Rotate gear shifting lever (1) 90
o
down.

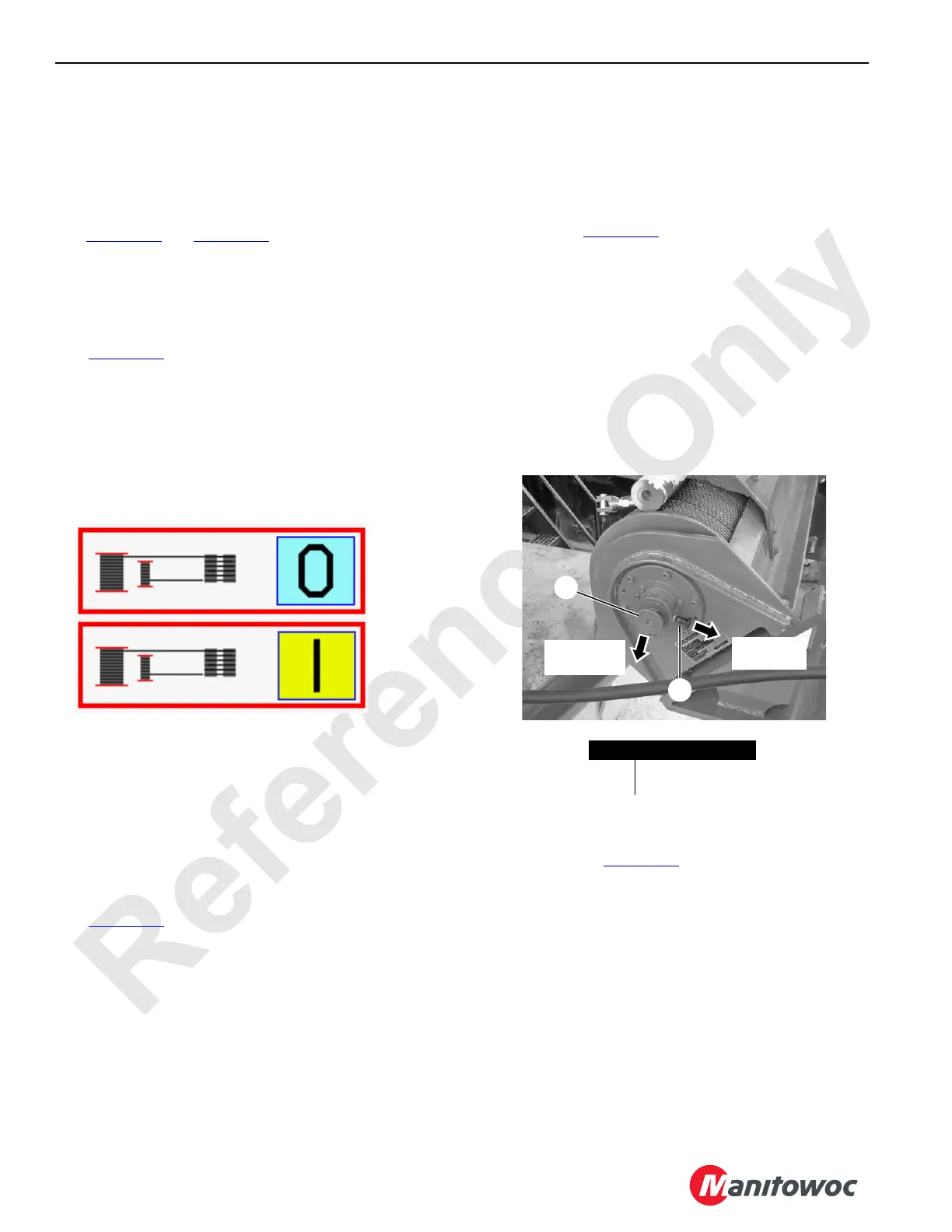

FIGURE 4-42
Rigging Winch Mode
ON
OFF
FIGURE 4-43
1
Free-Wheel
ON
2
Disengage
Gear Mode
Item Description
1 Locking Pin
2 Knob
P2314
