16000 OPERATOR MANUAL SET-UP AND INSTALLATION
4
PRE-START CHECKS
Make the following checks before starting the engine upon
arrival at the assembly site. See Section 3 for starting
instructions.
Engine
1. Check for leaks.
2. Check fuel, oil, and coolant levels.
3. Repair or refill as required.
Gear Boxes
1. Check for leaks.
2. Check levels.
3. Repair or refill as required.
Hydraulic System
1. Check for leaks.
2. Check level.
3. Repair or refill as required.
4. Make sure hydraulic shut-off valve is open.
STARTING CRANE ENGINE
The engine may not start (faults will occur) until terminator

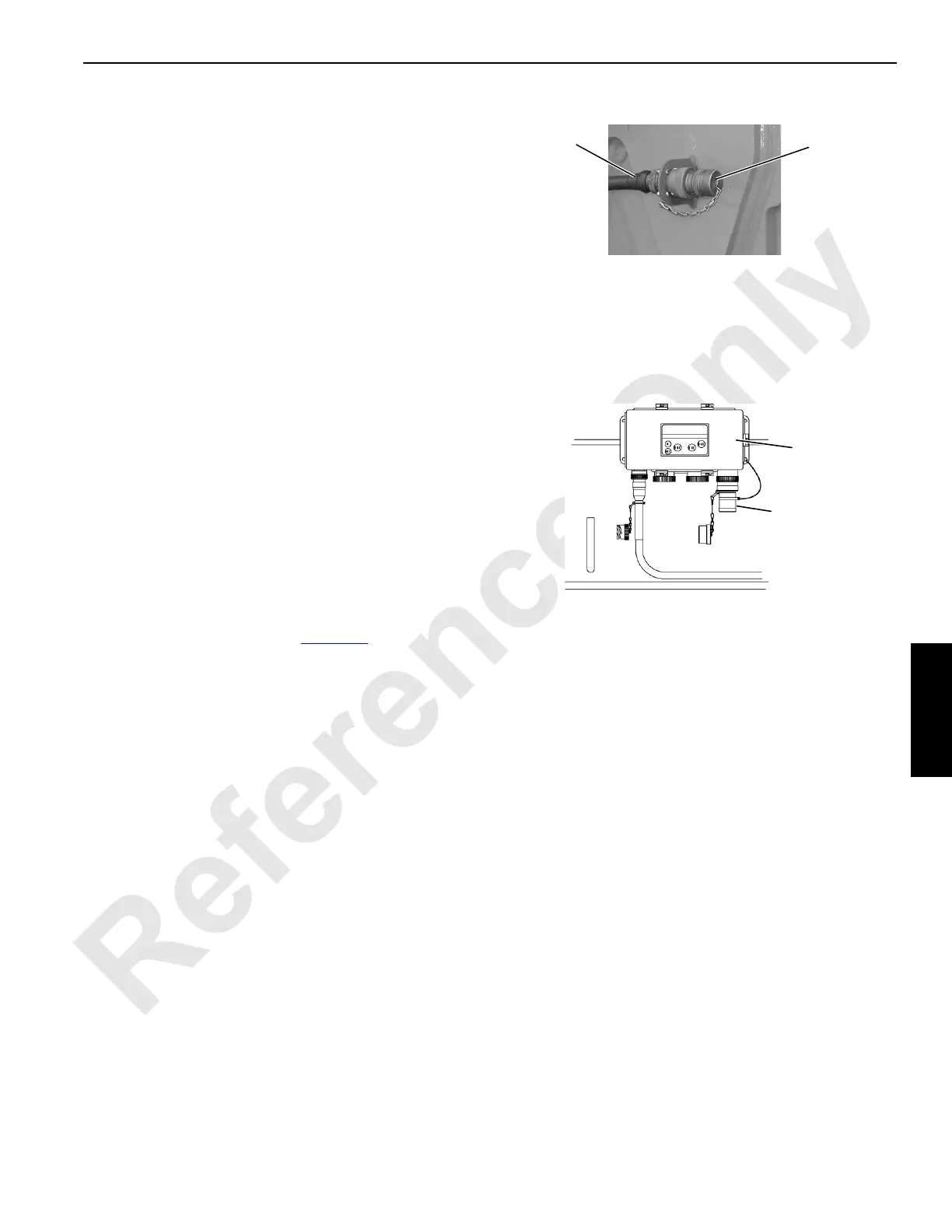

plugs are connected as shown in Figure 4-5
.
FIGURE 4-5
P2235
Terminator
Plug
Cable
View A
On Right Outboard or
Inboard Side of Rotating Bed
View B
On Front of Rotating Bed
Node 6
W66
Terminator
Plug
M4-3ff-1
Node 6
