Identifying Boom and Jib Components

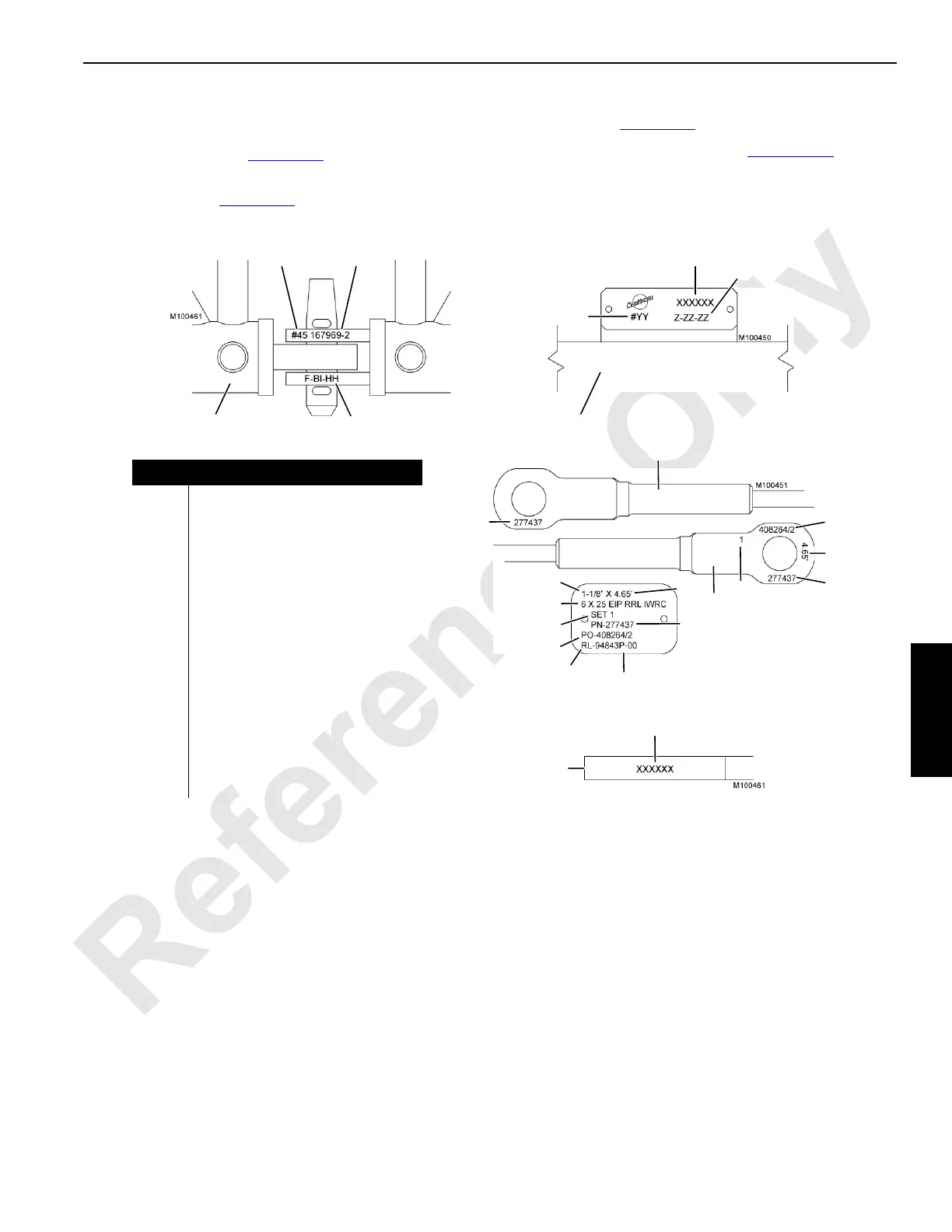

Boom and jib sections are marked for proper identification as
shown in Views A and B, Figure 4-24
.
Boom and jib pendants are marked for proper identification
as shown in View C, Figure 4-24
.
Boom straps and links are marked for proper identification as
shown in View D, Figure 4-24
.
NOTE: The markings shown in Figure 4-24
can vary
depending on when your crane was produced and
the original equipment manufacturer.
FIGURE 4-24
View B
View D
2
Item Description
1 Boom or Jib Chord
2 Boom or Jib Number
3 Manitowoc Part Number
4 Manitowoc Manufacturing Code
5 Pendant
5a Aluminum Tag (if equipped)
6 Manitowoc Purchase Order Number
7 Manufacturer’s Number
8 Wire Rope Type
9Diameter
10 Length
11 Set Number
12 Strap or Link
4
1
3
1
2
3
4
3
5
5
11
3
5a
3
10
6
3
8
9
11
6
7
10
View A
12
View C
