SET-UP AND INSTALLATION 16000 OPERATOR MANUAL
4-48
Published 05-09-17, Control # 011-29_v2

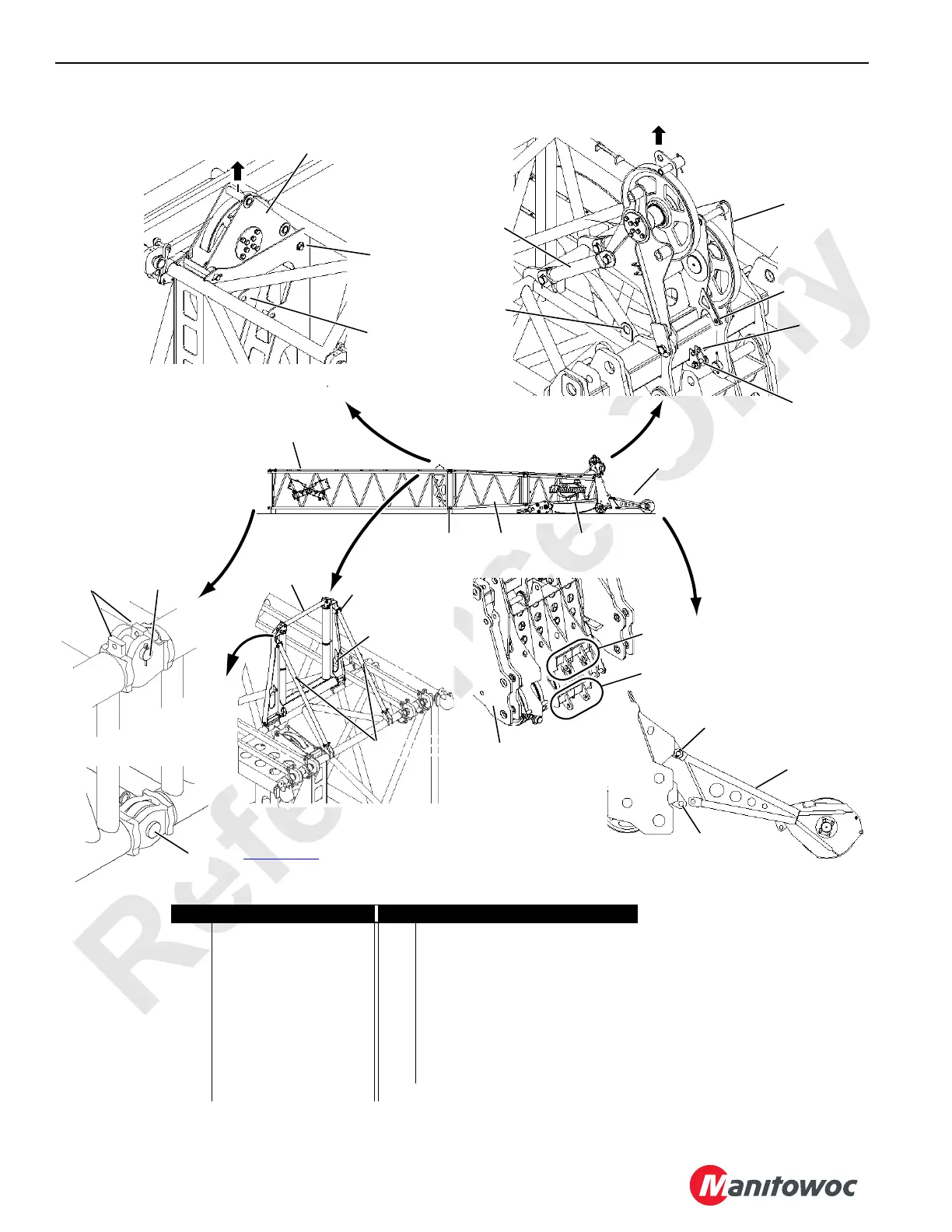

FIGURE 4-25
View F
View E
View D
5
6
Lift Here
Lift Here
View B
Operating Position
2
7
9
Stored
8
10
View A
Operating Position
A11388
3
Shipping
Position
3
Operating
Position
View C
9
Shipping
Position
11
Holes A
Holes B
15
16 in Hole A
Hole B
15
4
1
A11543
A10740-24
A10740-25
12 1413
14
See
Figure 4-26 if Intermediate
Suspension is Required
View G
Working
Position
19
19
17
18
Shipping
Position
Item Description Item Description
1 40 ft (12 m) Insert 11 Lug
2 Wire Rope Guide 12 Inserts
3 Pin with Snap Pins 13 Transition Insert
4 Fixed Horizontal Pin 14 Boom Top
5 Hooked Connector 15 Upper Boom Point Assembly
6 Bottom Connecting Pin 16 Pin with Snap Pins
7 Wire Rope Guide 17 Wire Rope Guide (Working Position)
8 Shipping Lug 18 Wire Rope Guide Struts
9 Pin with Snap Pins 19 Safety Pins
10 Strut
