16000 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Load Drum Operation
See Figure 3-20 for load drum operation.
NOTE: See Drum and Lagging Chart in Capacity Chart
Manual for drum identification.
1. Select crane configuration and capacity charts on RCL
display, Configuration screen.
2. Turn off drum park switch for drum to be operated.
3. Increase engine speed to desired RPM with hand
throttle. Depress foot throttle to momentarily increase
engine speed when more power is required.
4. Pull drum handle (Drum 1, 2, or 3) BACK from off to
RAISE load or push handle FORWARD from off to
LOWER load.
5. As load nears desired position, slowly move drum
handle toward off to slow down load. Then release
handle to off to stop load and hold it in position and drum
brake will apply.

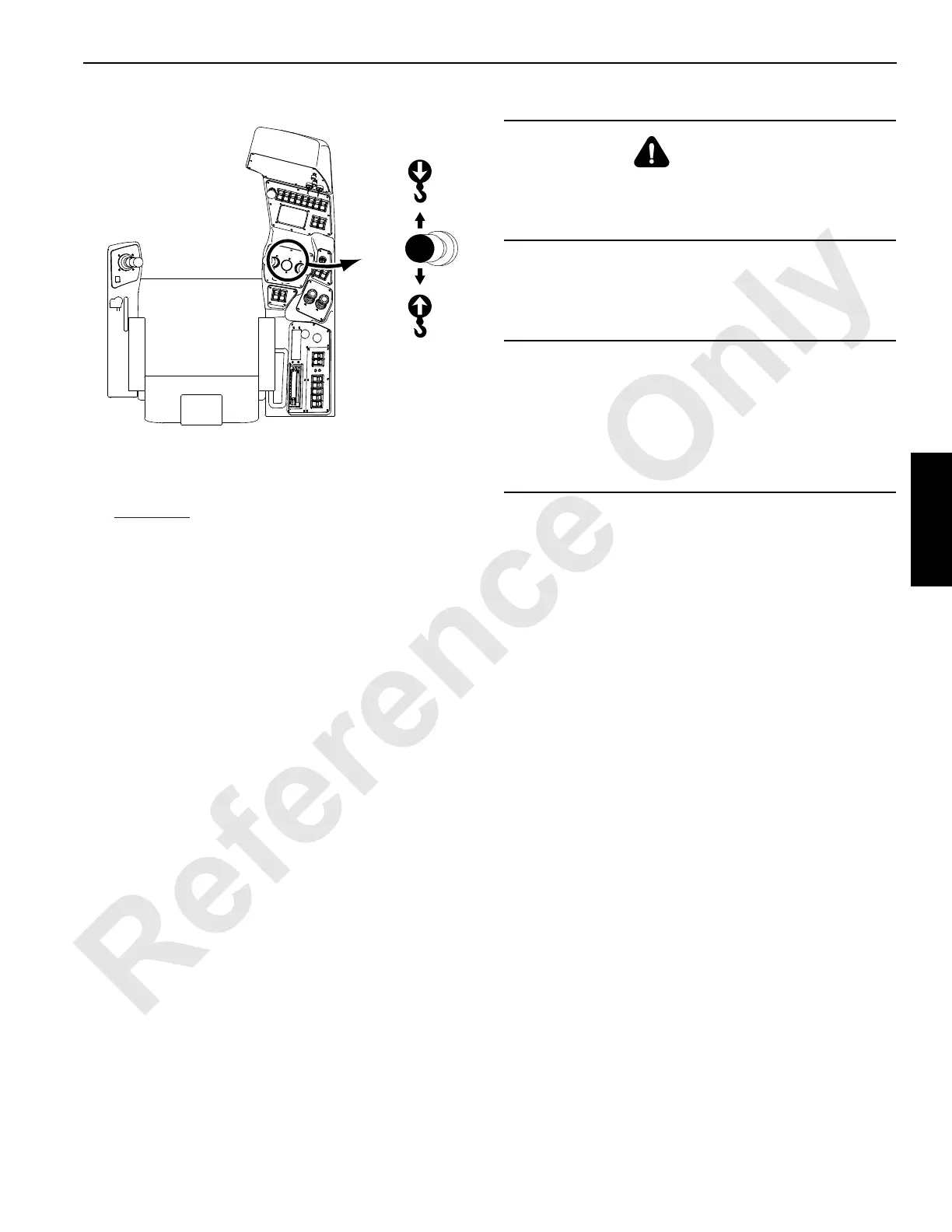

FIGURE 3-20
Lower
Load
Raise
Load
Typical All
Load Drums
OFF
WARNING
Falling Load Hazard!
Prevent load on unused drums from falling. Turn on drum
park switch for drums not in use.
CAUTION
Avoid Boom or Luffing Jib Damage!
Do not turn on drum park switch while raising or lowering
load; brake will bring load to an abrupt stop. This action
could cause shock load damage to boom, luffing jib, and
load line. Bring load to a smooth stop with drum handle
and then turn on drum park switch.
