SET-UP AND INSTALLATION 16000 OPERATOR MANUAL
4-10
Published 05-09-17, Control # 011-29_v2
Remove Crane from Trailer
See Figure 4-7 for the following procedure.
1. Untie crane from trailer.
2. Perform pre-start checks and start engine.
NOTE: It is normal for system fault alert and operating limit
alert to come on when the engine is started.
The system fault alert should go off as engine oil
pressure and hydraulic oil temperature rise to
normal. If alert does not go off soon after start-up,
determine fault, stop engine, and correct cause of
fault (see Display Readings in Section 3).
4-6

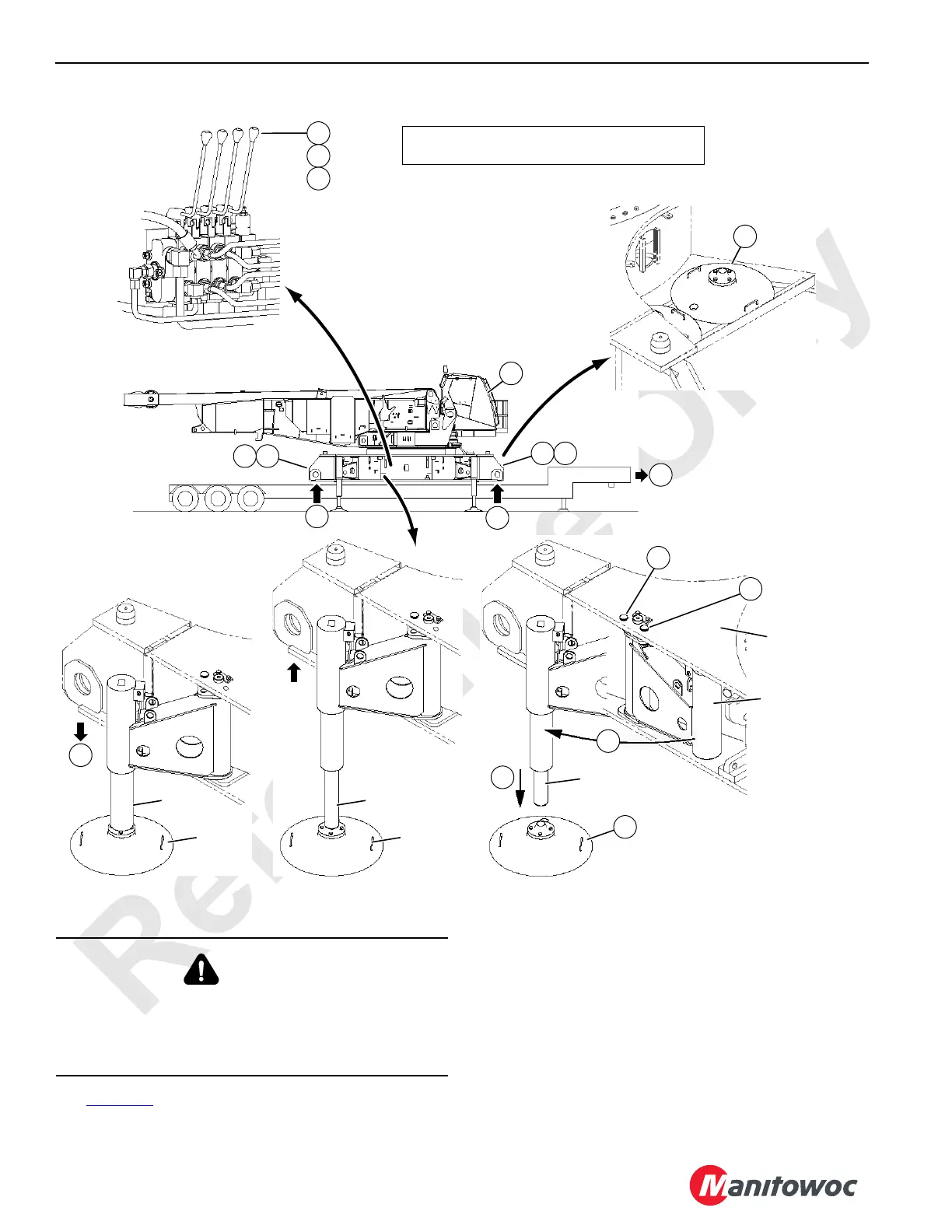

CIRCLED NUMBERS CORRESPOND TO
REMOVE CRANE FROM TRAILER PROCEDURE
Jack Pads Stored
(both ends of carbody)
View B
FIGURE 4-7
2
View A
11
9
Jack Pad
5
4
6
7
Jack Rod
Carbody
7
Connecting Pin
(storage hole)
Connecting Pin
(working hole)
10
Jack (stored)
8
3
6
Jack Pad
Jack Rod
Jack Pad
Jack Rod
View E
View D
View C
12
9
12
1
10 1
WARNING
Tipping Hazard!
Small diameter of jacking cylinders must be fully retracted
before handling the first crawler, otherwise cylinders will
be overloaded.
