Manitowoc Published 05-09-17, Control # 011-29_v2 4-11
16000 OPERATOR MANUAL SET-UP AND INSTALLATION
4
3. Remove connecting pin from storage hole (View C).
4. Rotate jack out from storage position to working position
(View C).
5. Install connecting pin in working hole (View C).
6. Remove jack pad from storage (View B) and place it on
ground below jack rod (View C).
NOTE: A 2-way level is provided near controls on front of
carbody.
7. Extend jack rod (View C) with corresponding control on
carbody (View A) until end of jack rod engages jack pad
(View D).
8. Repeat steps 3 - 7 for each jack.
9. Using controls on front of carbody, extend carbody jacks
fully to raise the crane off trailer. Swinging is
prohibited.
10. Remove blocking from between crane and trailer.
11. Remove trailer. Take extreme care not to hit jacks
with trailer. Provide a signal person to give
instructions to truck driver.
12. Retract jacks — keep the crane level — until carbody is
approximately 22 to 25 in (559 to 635 mm) above ground
and small diameter jack rod is fully retracted (View E).
See Figure 4-8
for the following procedure.
13. Rotate operator’s cab to operating position:
a. Unpin cab strut from lug on adapter frame (View B).
b. Using cab raise/lower switch on remote control,
raise cab to operating position (View A).
c. Rotate operator’s cab 90° from shipping position.
d. Pin cab strut to lug on cab support (View A).
e. On top of cab (View A), move amber rotating
beacon to operating (vertical) position and secure
with screws provided. Install radio antenna.
WARNING
Moving Part Hazard!
To avoid serious crushing injury — warn all personnel to
stand clear of jacks.
Tipping Hazard!
Avoid tipping crane over — keep crane level while jacking.

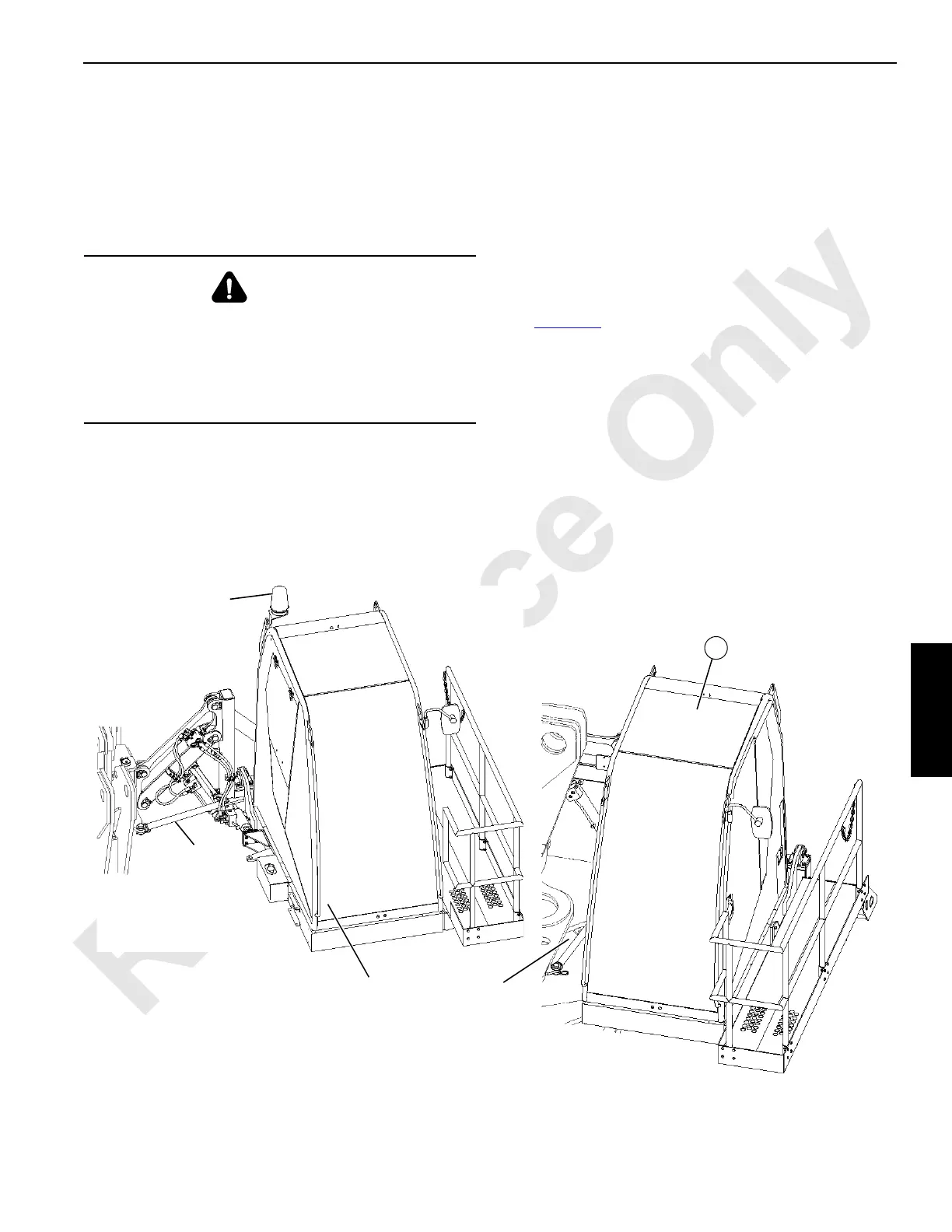

FIGURE 4-8
View A
Operating Position
View B
Shipping Position
4-7B
13c
13d
13a
13b
4-7A
13
