Reference Only
SET-UP AND INSTALLATION 16000 OPERATOR MANUAL
4-12
Published 05-09-17, Control # 011-29_v2

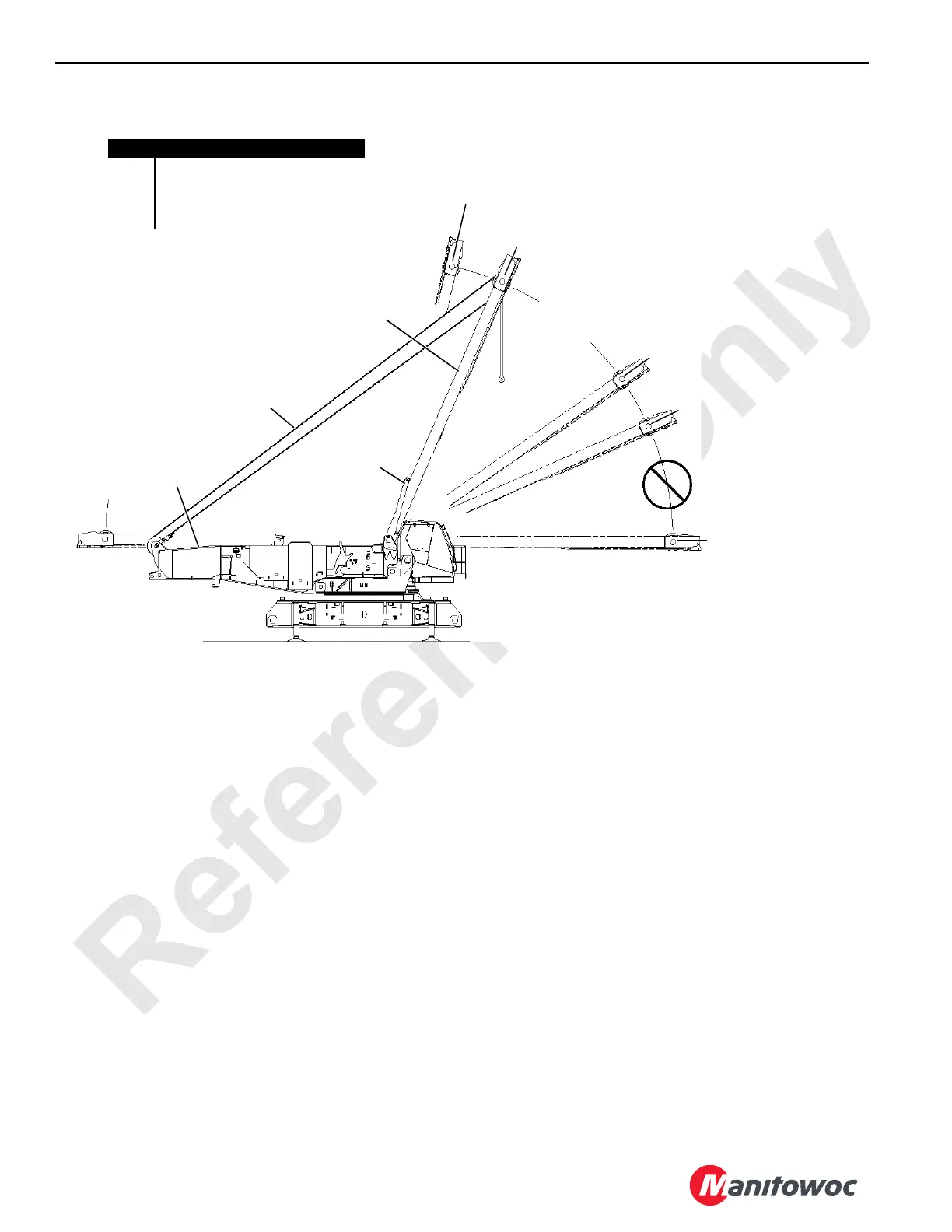

FIGURE 4-9
180°
156°
4-8
1
Item Description
1Live Mast
2 Mast Assist Arm and Cylinder
3 Boom Hoist
4 Boom Hoist Wire Rope
3
4
2
Shipping
Position
Operating
Range
An assist crane must be
used to lower mast to
angles greater than 156°.
115° Mast Assist Arm Contact
142° Maximum Operating
Angle with Load
103° Minimum Operating
Angle with Load
