Manitowoc Published 05-09-17, Control # 011-29_v2 4-79
16000 OPERATOR MANUAL SET-UP AND INSTALLATION
REEVING – LIVE MAST
General
The live mast wire rope must be reeved between Drum 4 and
the mast hoist sheaves as shown in Figure 4-51
.
Use Manitowoc #15836 wedge for anchoring the wire rope
to the drum sockets.
Wire Rope Specification
Manitowoc recommends the following wire rope for the live
mast:
Manitowoc #A05680 —
1,620 ft (494 m), 1-1/8 in (28,6 mm) diameter
Minimum Breaking Strength 159,000 lb (707 kN)
Rope diameter at no load:
• 1.160 in (29,46 mm) maximum
• 1.136 in (28,85 mm) minimum

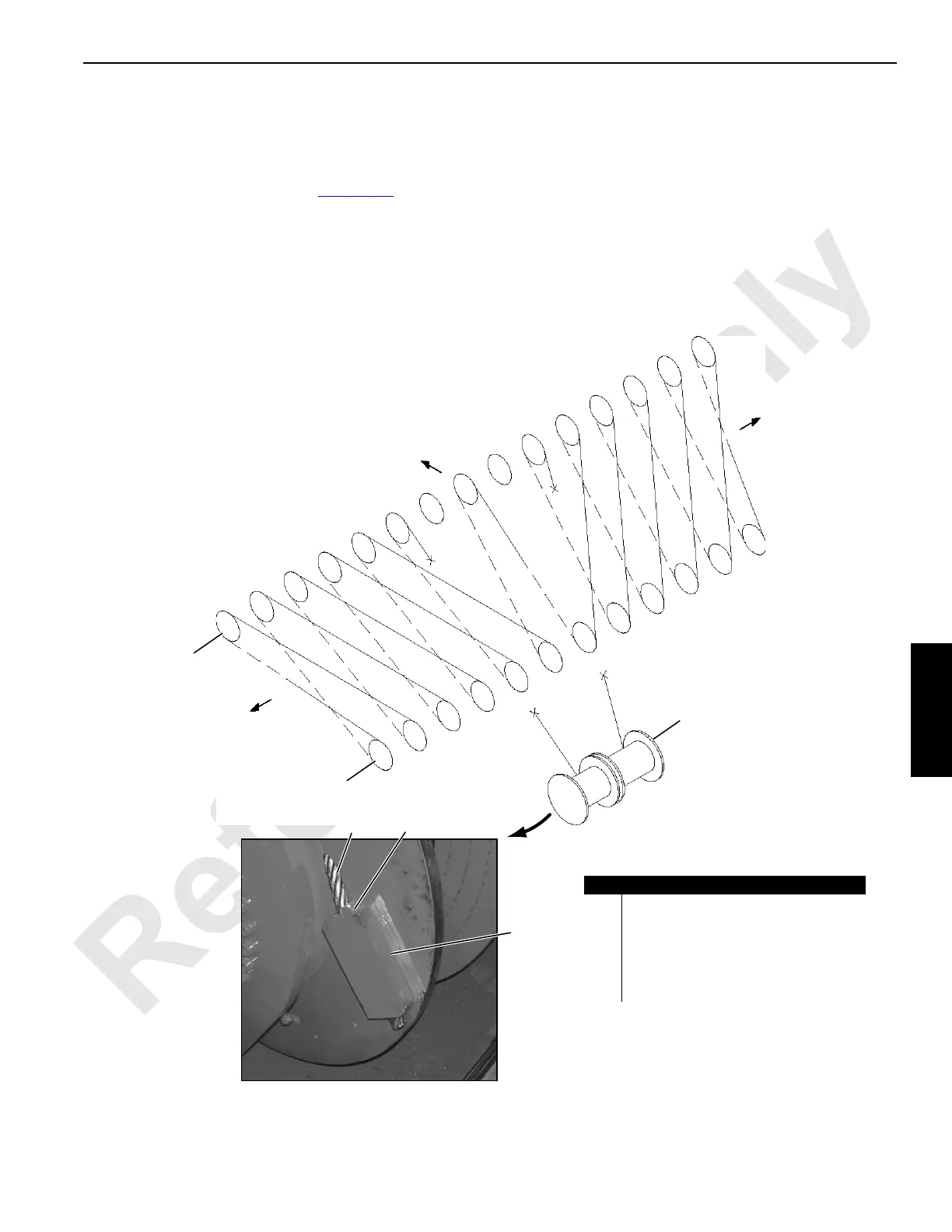

FIGURE 4-51
A10595
P2280
Item Description
1 Sheave Cluster at End of Mast
2 Sheave Cluster at Rear of Rotating Bed
3 Boom Hoist (Drum 4)
4 Wire Rope
5 Wedge, 1-1/8 in (28 mm)
6 Drum Socket
2
5
6
4
1
3
REAR
of Crane
LEFT Side
of Crane
RIGHT Side
of Crane
To Next Page
