OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-36
Published 2-23-2017, Control # 644-00
Description of Telescope Section Views
Refer to Figure 3-21.

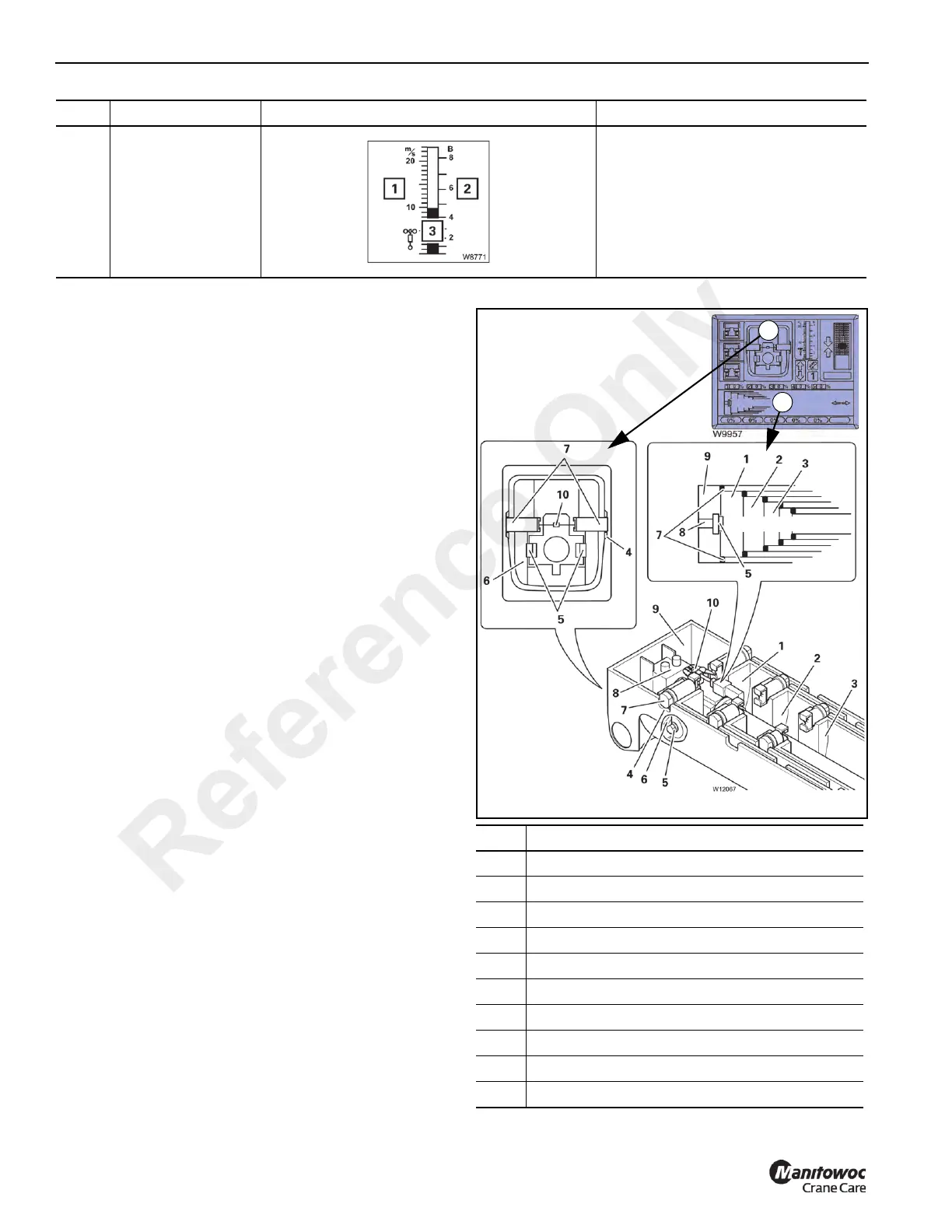

The Telescope submenu of the ECOS display shows two
sectional views of the main boom:
• (A), the sectional view from the rear
• (B), the sectional view from above.
14
Anemometer
display
(1) Scale in meters per second (m/sec)
(2) Beaufort scale (B)
(3) Display of wind speed
Refer to Section 2 for safety
information and Wind Forces, page 3-
105 for more information on this
display.
Item Description Graphic Explanation
Item Description
1 Telescopic section 1
2 Telescopic section 2
3 Telescopic section 3
4 Section cutouts
5 Cylinder locking pins
6 Cylinder locking pin cutouts
7 Telescopic section locking pins
8 Telescope cylinder (rod)
9 Boom base section
10 Butterfly mechanism
FIGURE 3-21
A
B
A
B
Reference Only
