OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-56
Published 2-23-2017, Control # 644-00
8

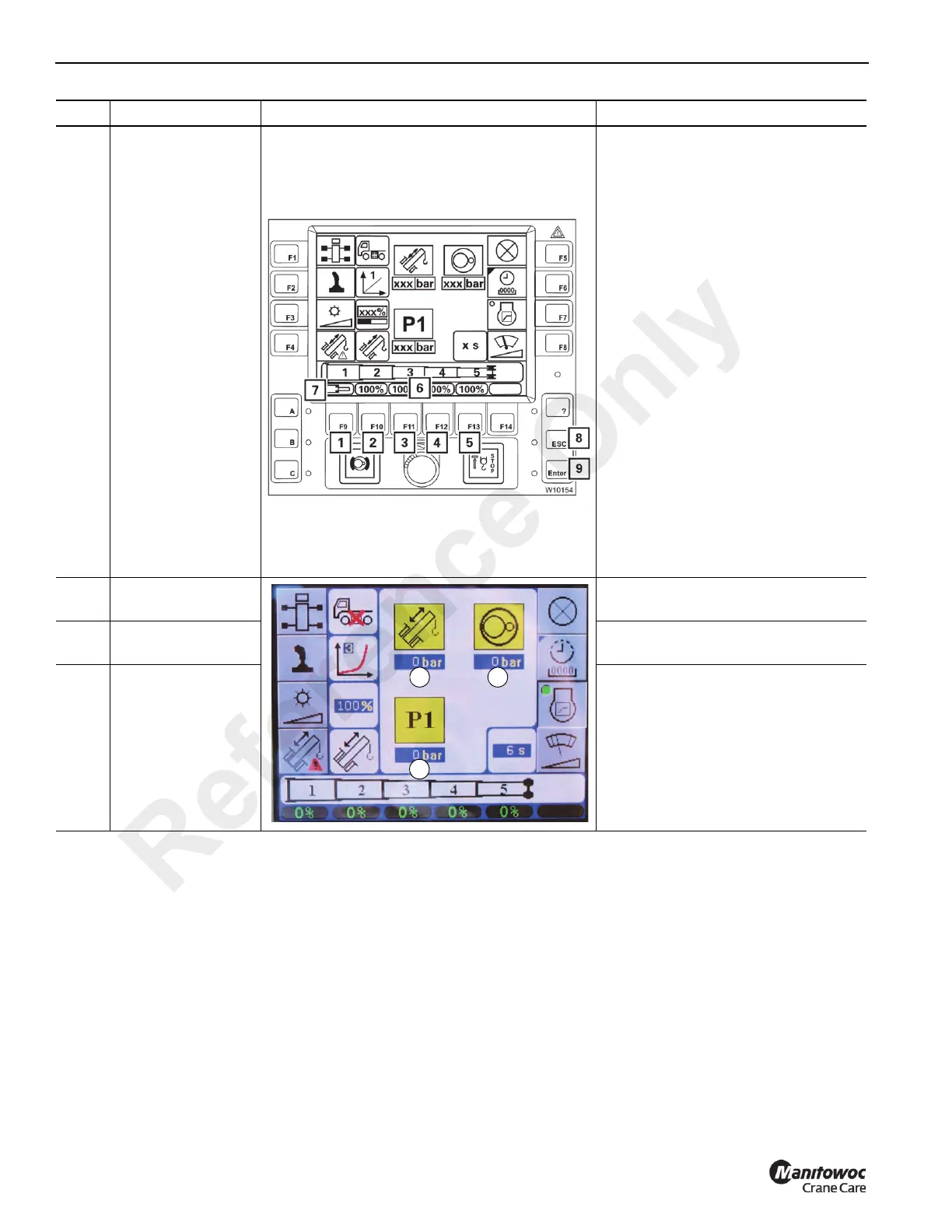

Current telescope
status display
If the telescope status is no longer
displayed you must enter the current
telescope values from the RCL display.
The display (6) shows the values for
telescopic sections 1 to 5.
To enter set values:
Press one of the buttons (1) to (5), the
values in the display (6) turn yellow.
Each time you press a button, the
corresponding value in the display (6)
switches continuously between the
fixed lengths and the symbol (7) for
unlocked.
Enter the desired set values for all
telescopic sections from the RCL.
You can cancel the entry at any time
using the Esc button (8).
To confirm the entered values, press
the Enter button (9) once.
You must now accept the values, refer
to Entering the Current Telescope
Status, page 3-60 for more information.
9
Telescope cylinder
hydraulic pressure
Current pressure in bar for the
telescope cylinder (10).
10
Swing gear
hydraulic pressure
Current pressure in bar for the slewing
gear (11).
11
Hydraulic circuit
pressure
Current pressure in bar (12) for
movements of the following:
• Hoists
• Lift cylinder
• Counterweight cylinders
• Incline cab
• Locking units
Item Description Graphic Explanation
10
12
11
Reference Only
