RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Published 2-23-2017, Control # 644-00
Grove
6
RCL Monitoring
Submenu, page 3-
86, F8
Press the F8 button in main menu to
open this submenu.

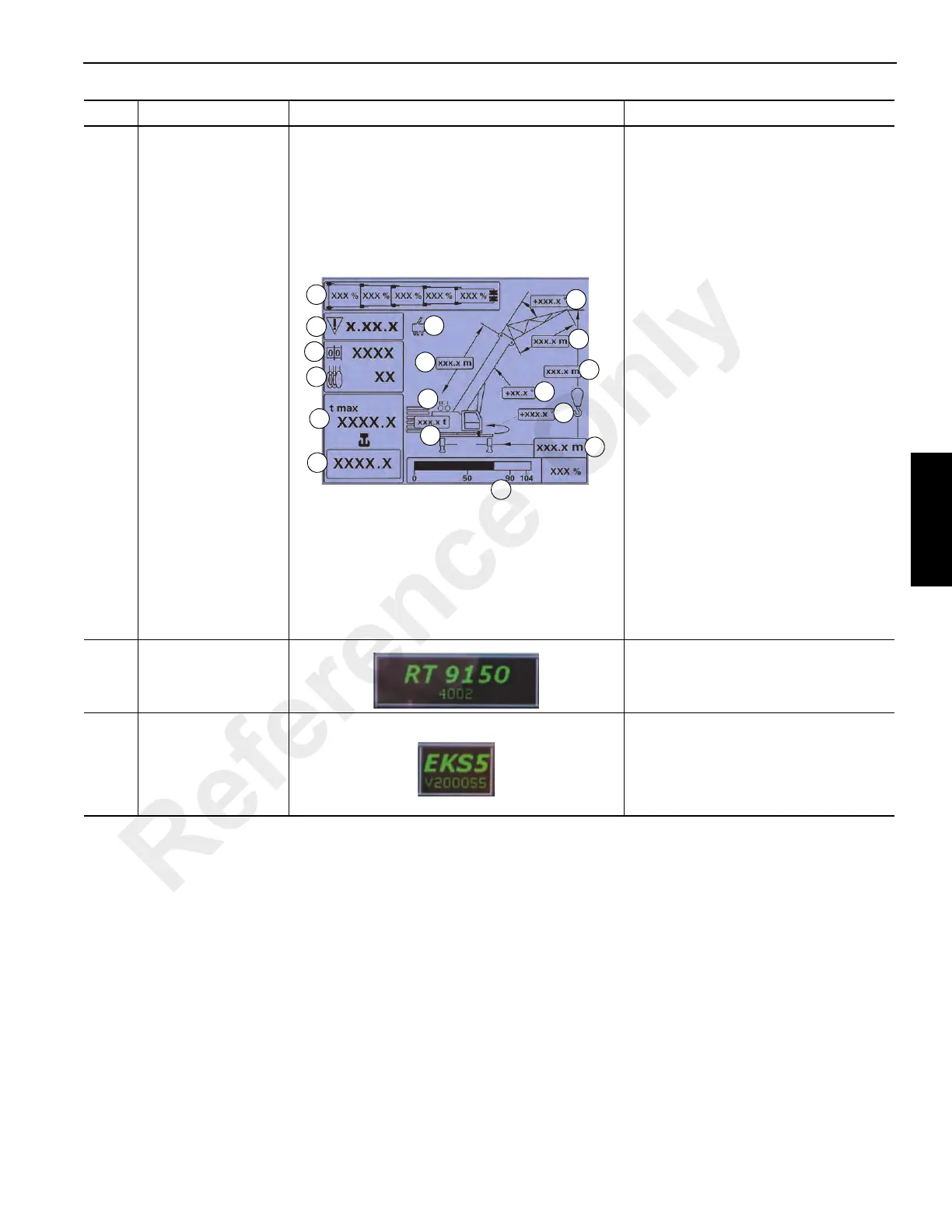

(1) Current telescope status display
(2) Error display
(3) RCL code display
(4) Reeving display
(5) Maximum load display
(6) Current load display
(7) Service symbol display
(8) Current main boom length
(9) Hoists display
(10)Counterweight display
(11) Boom extension angle display
(12)Current length of boom extension
(13)Current overall height
(14)Current main boom angle display
(15)Current swing angle display
(16)Current working radius
(17)Current percent of max. load; bar
graph and number.
Refer to RCL Monitoring Submenu,
page 3-86.
7
Serial number
display
Serial number listed under the model
number of the crane.
8
RCL program
version display
Current RCL program version number.
NOTE: Always note down the number
of the program version before
notifying Crane Care in the
event of a malfunction.
Item Description Graphic Explanation
1
2
3
4
6
17
9
7
5
16
15
12
13
8
11
14
10
