OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-78
Published 2-23-2017, Control # 644-00
RIGGING MODE SUBMENU
For a complete rigging mode input, you must enter, confirm
and accept the rigging and reeving conditions as they
currently exist on the machine.
Opening the Submenu
In the main menu and press the F5 button (1) (Figure 3-74)
once.
Rigging Mode Menu
Refer to the following table for a description of each item
listed above.
The procedures are given in detail after the table.

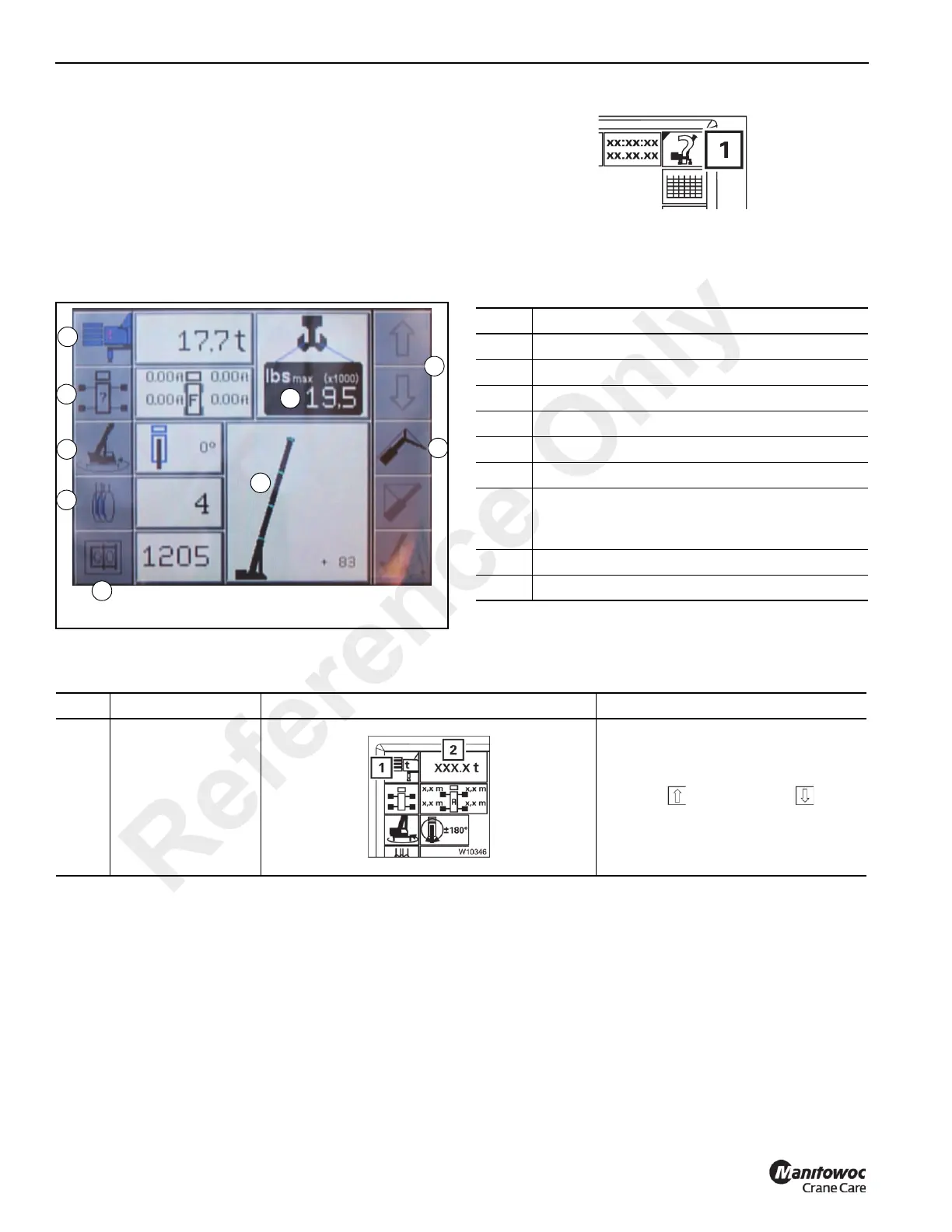

FIGURE 3-74
FIGURE 3-75
1
2
3
4
6
9
8
5
7
Item Description
1 Enter counterweight, F1
2 Enter outrigger span, F2
3 Enter swing range, F3
4 Enter reeving, F4
5 Maximum load display
6 RCL code graphic display
7
Selection:
Up, F5
Down, F6
8 Boom system entry, F7
9 Enter RCL code, F9
Item Description Graphic Explanation
1
Enter
counterweight, F1
• Start Input mode: press the F1
button (1) once, symbol turns green
• Input mode on: press either the F5
button or the F6 button once,
to bring up the next counterweight
configuration (2).
Refer to Counterweight, page 3-82.
