OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-84
Published 2-23-2017, Control # 644-00

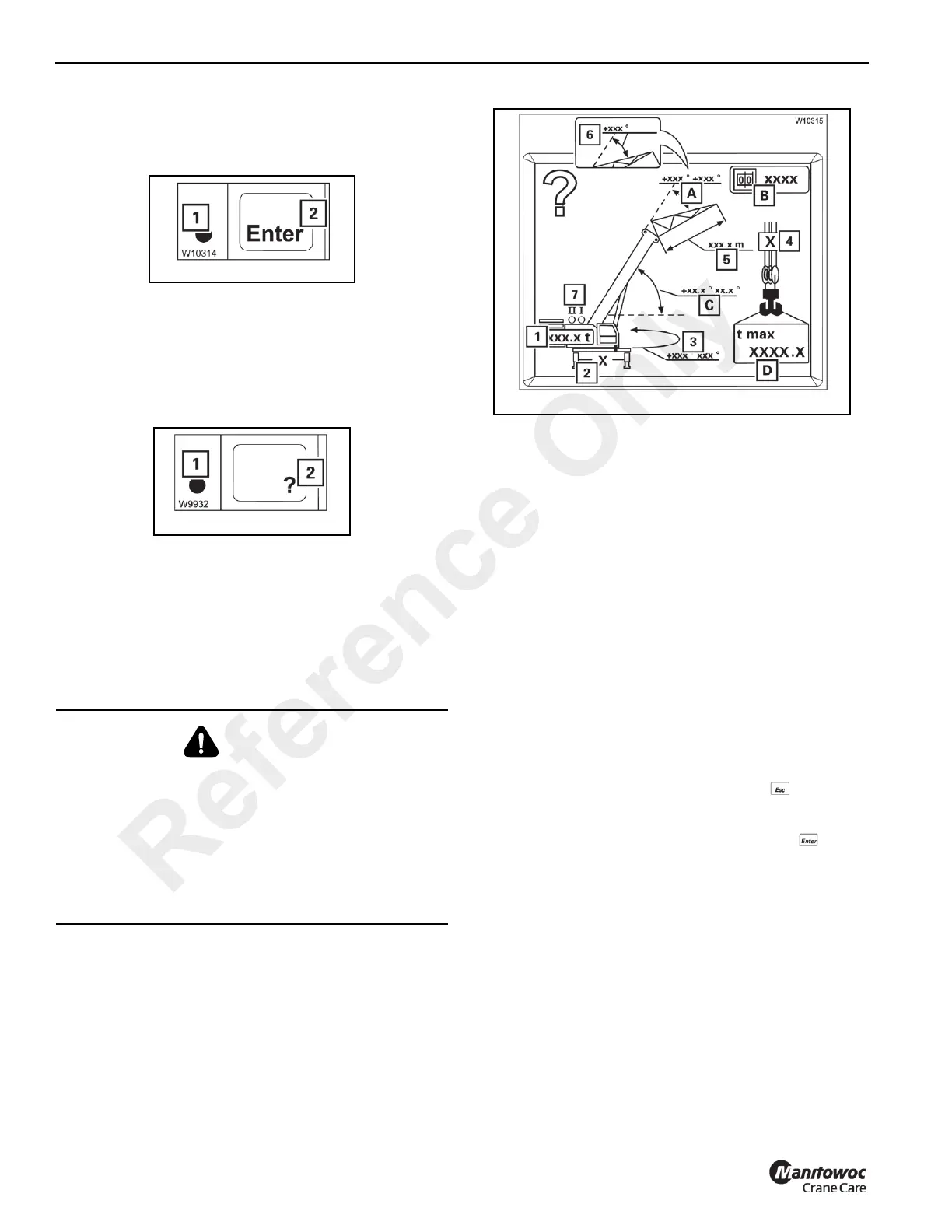

Approve the Rigging Mode
Prior to crane operation, you must confirm and accept the
newly entered rigging mode.
Confirming Rigging Mode
To confirm the rigging mode, press the button (2)
(Figure 3-87) once:
• If the rigging mode is permissible, the lamp (1) goes out.
The Rigging Mode Monitoring Submenu, page 3-85
opens and you can approve the rigging mode.
• If the rigging mode is not permissible, the lamp (1)
(Figure 3-88) lights up. Press the button (2) once to
display the error codes, refer to Error Codes, page 3-
103.
Accepting Rigging Mode
You must check whether the current rigging mode of the
crane corresponds to the displayed rigging mode.
Check the following (Figure 3-89):
• (1) The rigged counterweight
• (2) The rigged outrigger span
• (3) The swing range for the planned job
• (4) The number of reeved rope lines
• (5) The length of the rigged boom extension
• (6) The angle of the rigged boom extension
• (7) The hoist that is switched on, to switch over hoists,
refer to Entering the Reeving, page 3-83.
For the rigging mode, the following is displayed:
• (A) The permissible working range of the boom
extension
• (B) The RCL code
• (C) The permissible working range of the main boom
• (D) The maximum load
If you need to correct some values, press the button. The
Rigging Mode Submenu, page 3-78 opens.
If the current rigging mode is displayed, press the button.
The RCL Monitoring Submenu, page 3-86 opens, and the
crane movements are enabled provided no error is pending.
WARNING
Tipping Hazard!
If the actual rigging mode varies from the displayed
rigging mode, the maximum load displayed by the RCL
will not correspond to the permissible lifting capacity
allowed in the Load Chart. Inaccurate programming of the
RCL allows the crane to be improperly operated.
Serious injury or death may occur if the crane is
overloaded or overturns.
