Manitowoc Grove RT9150E User Manual

3-97
RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Published 2-23-2017, Control # 644-00
Grove
3

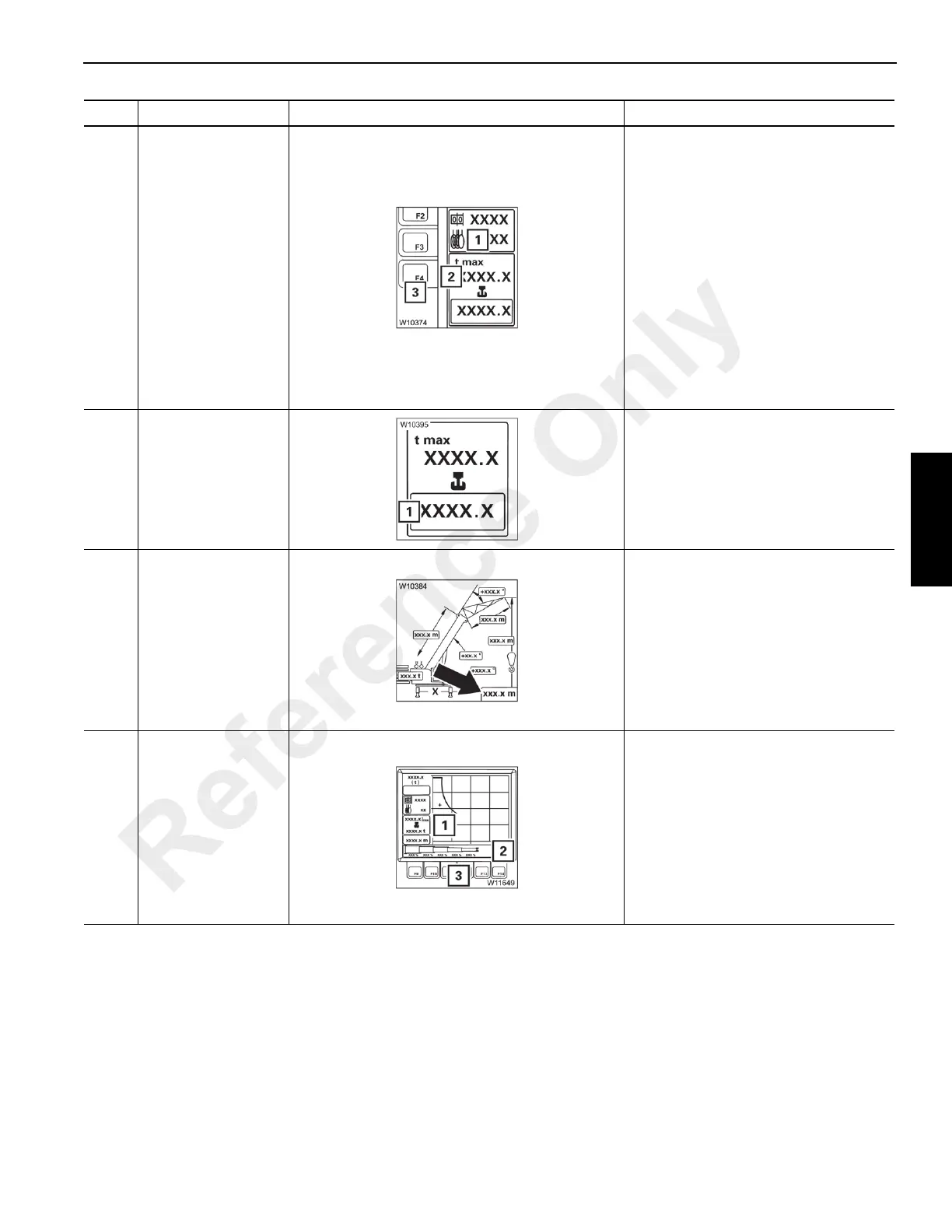

Maximum load
display
The display (2) shows the maximum
load that can be lifted in the current
rigging mode with the current working
radius.
If the maximum load is reduced due to
the entered reeving, the symbol (1) is
red.
In this case, you can briefly display the
possible maximum load:
Press the F4 button (3) once.
The display (2) shows the maximum
possible load that can be lifted with
sufficient reeving according to the
Load Chart.
4
Current load
display
The display (1) shows the sum of the
payload + lifting gear + hook block in
metric tons (t) or kilo pounds (klbs),
precision ± 5% of actual load.
Example: 55.2 klbs is equal to 55,200
lbs.
5
Current working
radius display
Shows the current working radius; the
horizontal distance between the
turntable axis and the hook block axis.
The displayed value is calculated on
the basis of the telescoping and the
main boom or boom extension angle.
The value is displayed either in metres
(m) or feet (ft), depending on the
setting.
6
Telescope status
display
Telescope status (2) in percent.
Press an associated button, F9 to F13
(3):
• The new telescope status will be
displayed (2)
• The corresponding working range
will display (1)
• If all values are 0, then the telescope
status is outside the working range.
Item Description Graphic Explanation
Reference Only
