Manitowoc Grove RT9150E User Manual

OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-98
Published 2-23-2017, Control # 644-00
7

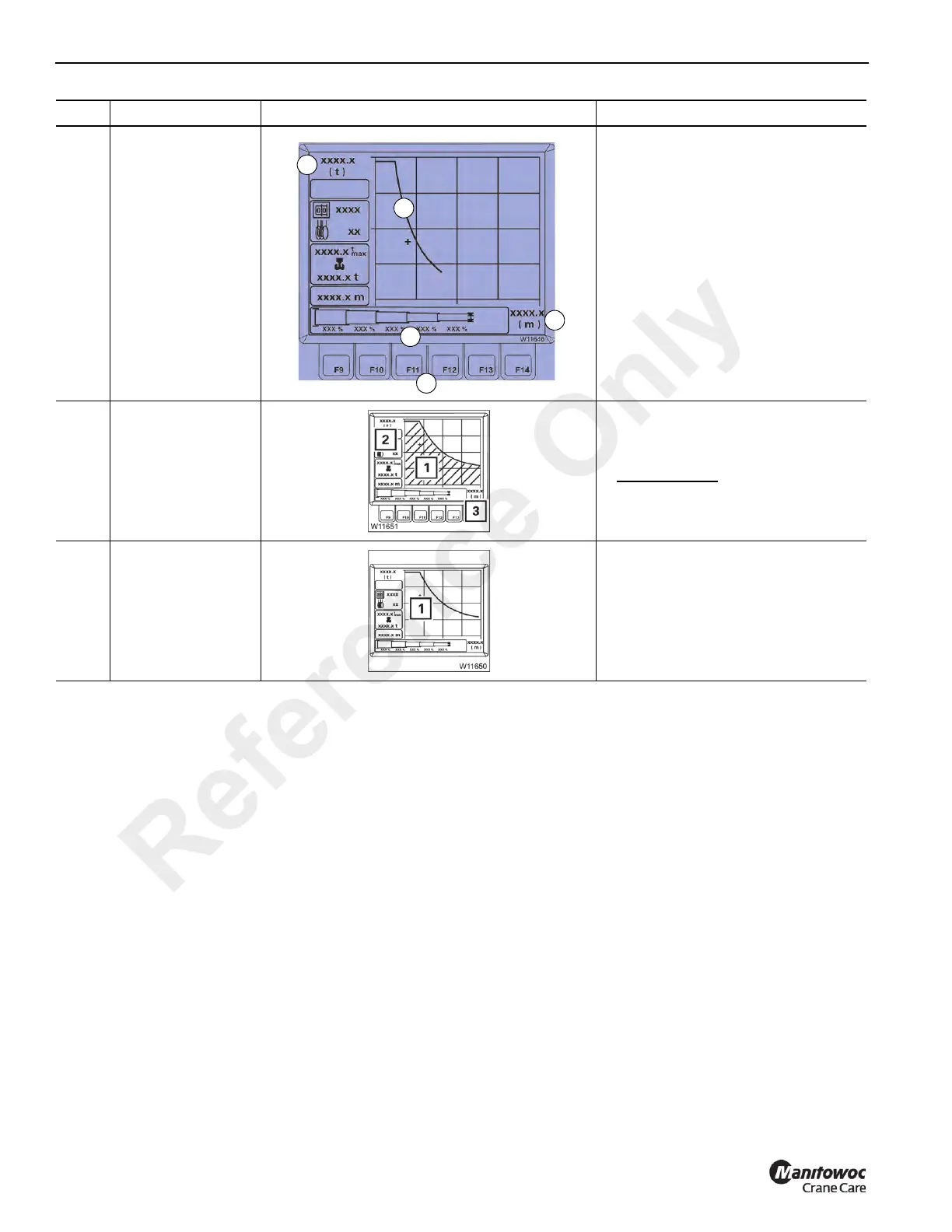

Telescope status
input
You can display the working range for
all permissible telescoping statuses:
Enter the desired telescoping status
(4) with the F9 to F13 buttons (5).
The displays (1), (2), and (3) show the
respective permissible working range.
If the telescoping status is not within
the working range:
• the displays (1) and (3) will show the
value 0
• no curve (2) will be shown.
8
Permissible
working range
display
The display applies to the current RCL
code and telescope status.
(1) Permissible working range; area
under the curve
(2) Maximum possible load
(3) Maximum possible working radius
9
Current position
display
(1) Current position, defined by current
load and current working radius.
Item Description Graphic Explanation
1
2
3
4
5
Reference Only
