INTRODUCTION RT9150E OPERATOR MANUAL
1-8
Published 2-23-2017, Control # 644-00
Driver 92.00 233.68 250 113 118 54 132 60
Rear mounted pintle hook -83.50 -212.09 30 14 -13 -6 43 19
Remove tires for transport 97.25 247.02 -9520 -4318 -4760 -2159 -4760 -2159
Remove main hoist cable -38.31 -97.31 -884 -401 174 79 -1058 -480
Lift cylinder travel support 221.00 561.34 117 53 133 60 -16 -7
Counterweight stand (pinned to carrier) 247.00 627.38 170 77 216 98 -46 -21
Description
CG Weight Front Axle Rear Axle
in cm lb kg lb
kg
lb
kg

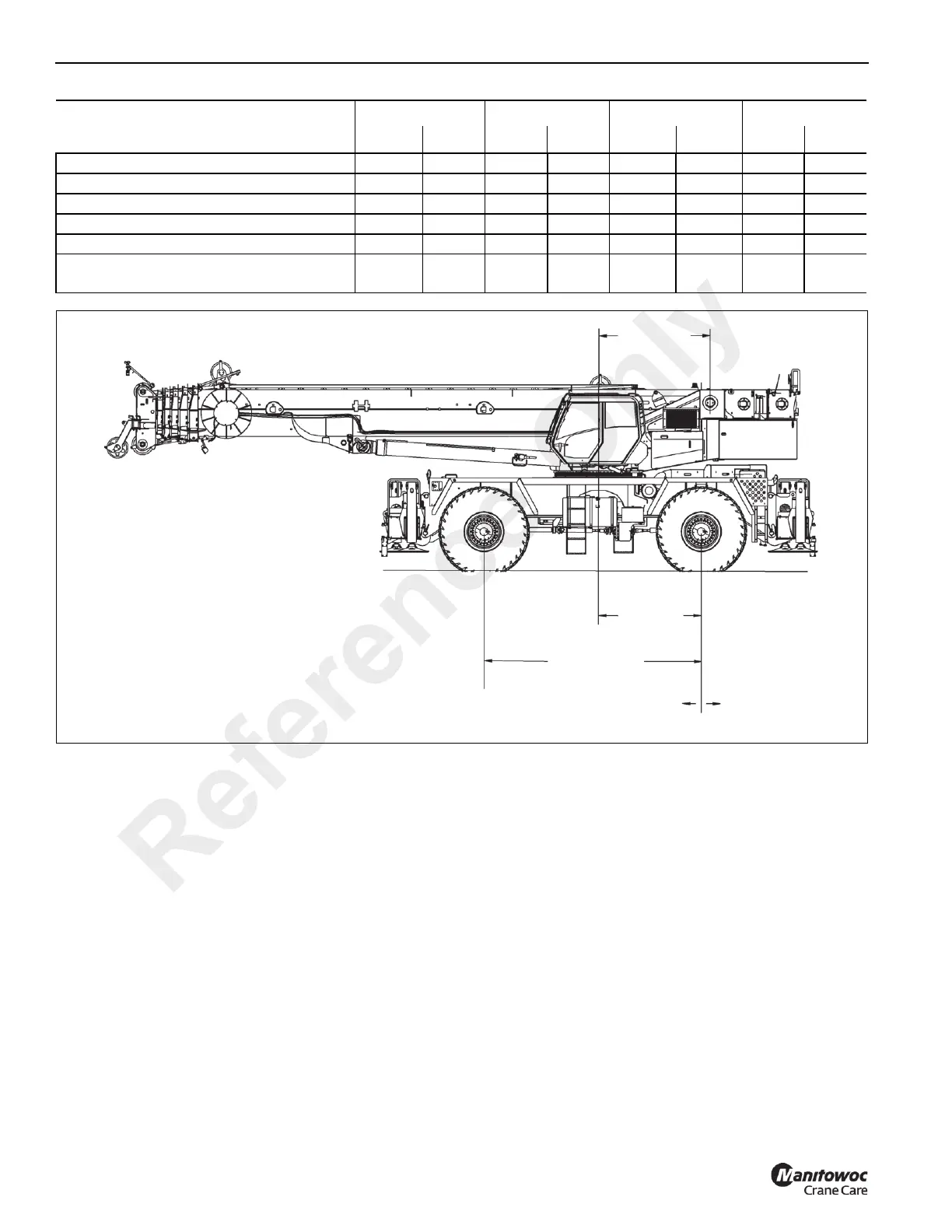

FIGURE 1-3
7594
To Pivot
To Axle
+ CG
- CG
Wheelbase
Reference Only
