OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-154
Published 2-23-2017, Control # 644-00
Tables for Approaching the Locking Points
The extent to which the telescope cylinder has to be
extended in order to reach a locking point depends on
whether you:
- Want to lock the telescope cylinder or
- lock a telescopic section.
Locking Points for the Telescoping Cylinder
The following table shows the extended length for locking the
telescoping cylinder.
Locking Points for the Telescopic Sections
Refer to Figure 3-188.
The locking pin must not engage the telescopic section for
locking or unlocking it.
The notch (1) must be clear. That is why you have to extend
the telescoping cylinder 0.38 in (35 mm) further than with a
return run.
The following table shows the extended length for locking
and unlocking the telescopic sections.
Table for locking the telescoping cylinder
Telescopic
Section
Locking point
at fixed length
Extended length of the
telescoping cylinder
% mm ft
Telescopic
Section 1
0
50
100
5
4,792
9,578
0.02
15.72
31.42
Telescopic
Section 2
0
50
100
331
5,079
9,828
1.09
16.67
32.24
Telescopic
Section 3
0
50
100
627
5,348
10,071
2.06
17.55
33.04
Telescopic
Section 4
0
50
100
918
5,587
10,257
3.01
18.33
33.65
Telescopic
Section 5
0
50
100
1,200
5,810
10,424
3.94
19.06
34.20
Table for locking/unlocking the telescopic sections
Telescopic
Section
Locking
point at fixed
length
Extended length of the
telescoping cylinder
% mm ft
Telescopic
Section 1
0
50
100
40
4,827
9,613
0.13
15.84
31.54
Telescopic
Section 2
0
50
100
366
5,114
9,863
1.20
16.78
32.36
Telescopic
Section 3
0
50
100
662
5,383
10,106
2.17
17.66
33.15
Telescopic
Section 4
0
50
100
953
5,622
10,292
3.12
18.44
33.76
Telescopic
Section 5
0
50
100
1,235
5,845
10,459
4.05
19.18
34.31

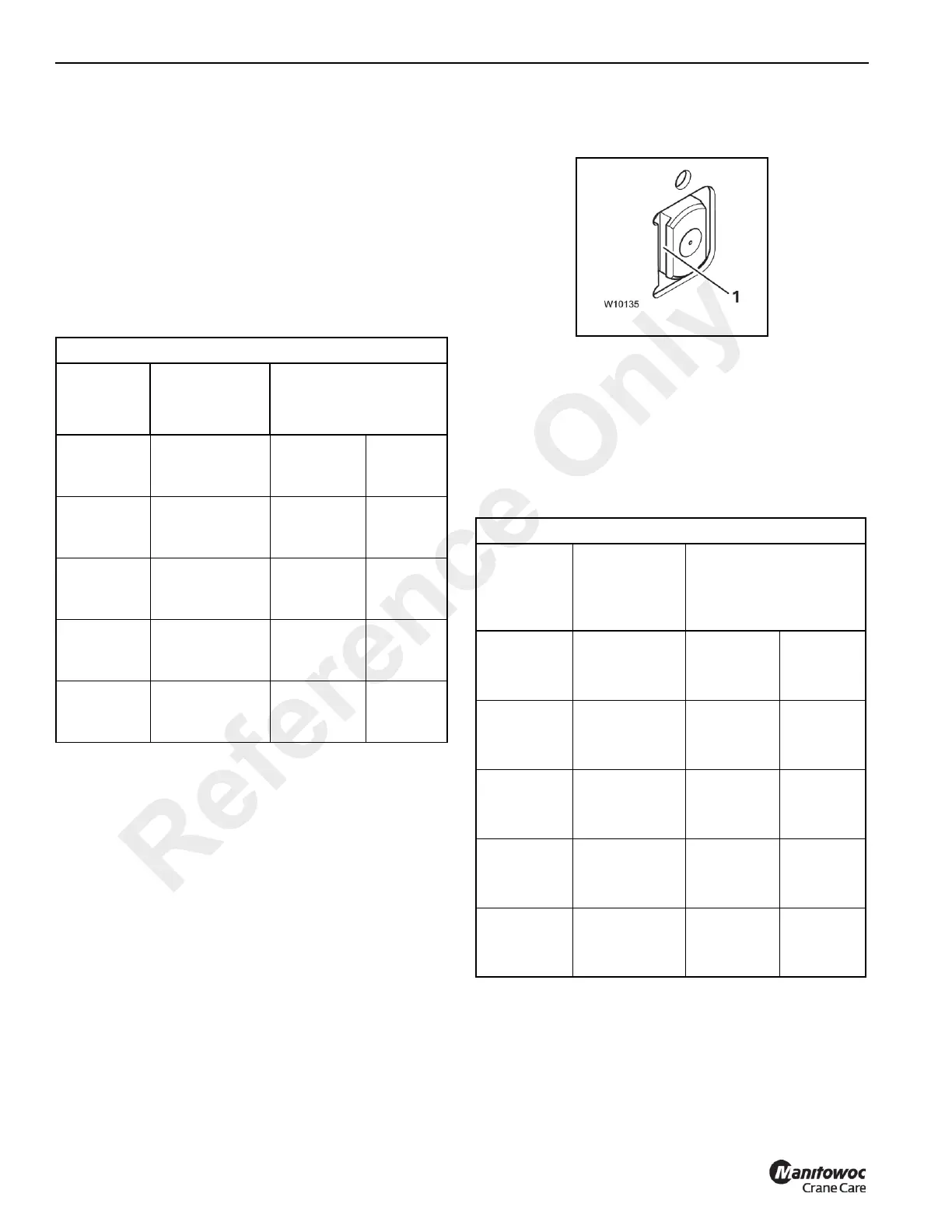

FIGURE 3-188
Reference Only
