RT9150E OPERATOR MANUAL SET-UP AND INSTALLATION
4
Grove
Published 2-23-2017, Control # 644-00

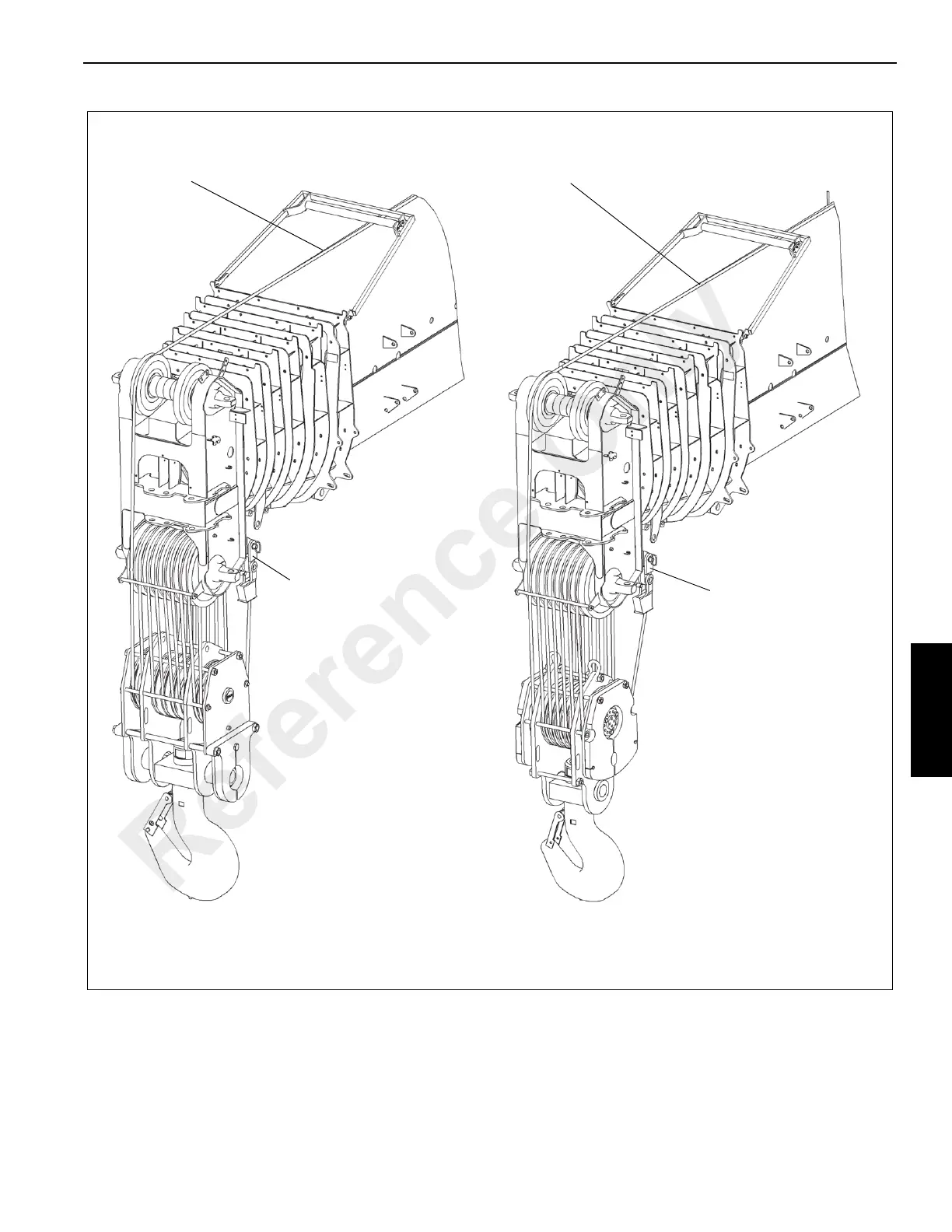

FIGURE 4-12
16 Parts of Line
With 8 Sheave Hookblock
Use Wedge Socket Adapter Kit
Route Wire Rope Under
Rope Grab Assembly
14 Parts of Line
Use Wedge Socket Adapter Kit
Route Wire Rope Under
Rope Grab Assembly
Reference Only
