SET-UP AND INSTALLATION RT9150E OPERATOR MANUAL
4-50
Published 2-23-2017, Control # 644-00
Positioning/Removing the Hoist Cable
Positioning the Cable
1. Remove the guide sheaves (1) (Figure 4-82). Guide the
cable over the deflection sheaves (2), (3), (4) and over
the head sheave (5) on the 36 ft extension.
2. Replace all guide sheaves (1) and secure them with
retaining clips.
3. Install the hook tackle or the hookblock. The cable can
only be reeved once on the boom extension.
Removing the Cable
1. Unreeve the hookblock.
2. Remove the guide sheaves (1) (Figure 4-82).
3. Take the cable off the head sheave (5) and the deflection
sheaves (4), (3), (2) and place it onto the ground on the
left side.
4. Replace all guide sheaves (1) and secure them with
retaining clips.
CAUTION
Falling Objects Hazard!
Always secure the cable holding sheaves and pins with
retaining clips. This prevents them from coming loose,
falling down and causing injury.

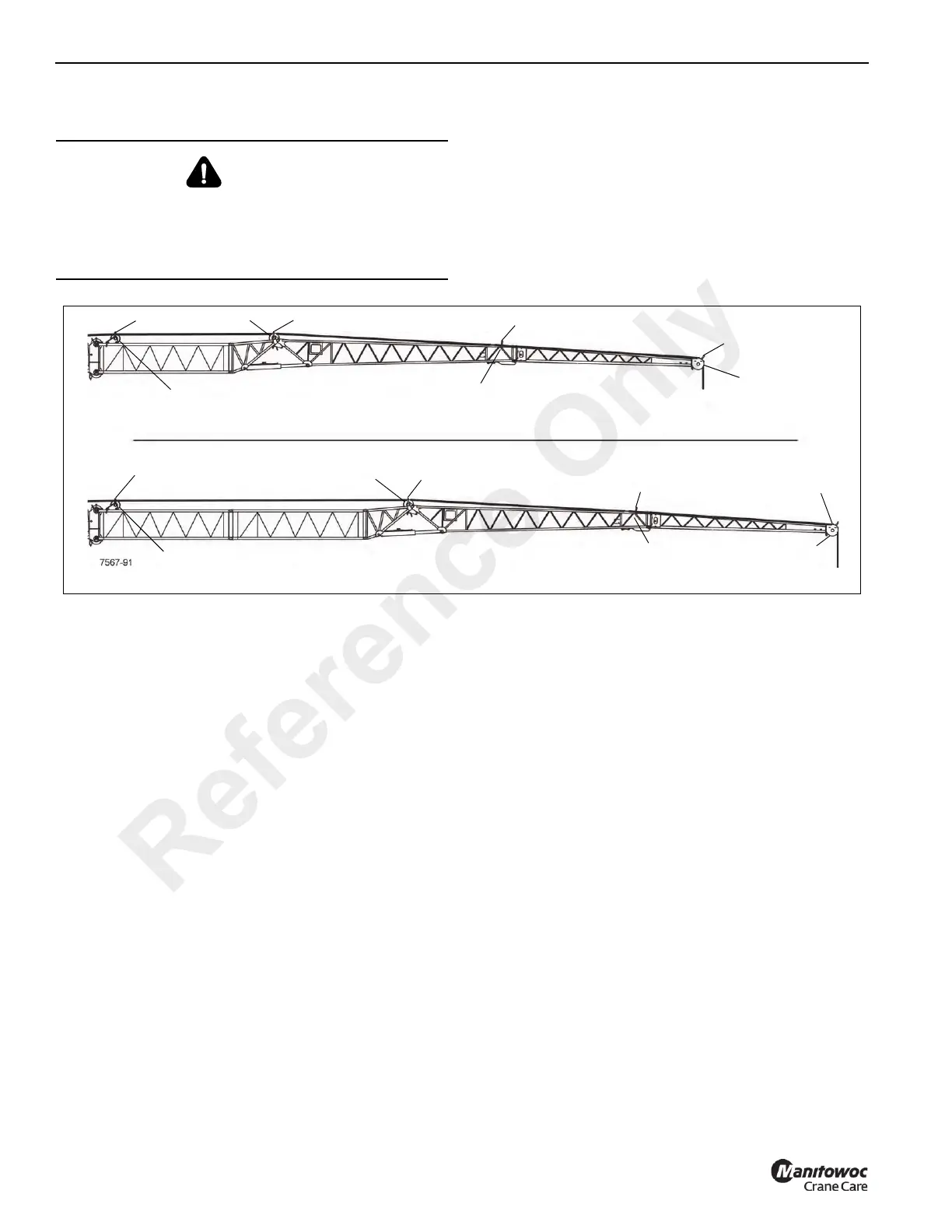

FIGURE 4-82
7567-63
5
3
85 ft (26 m) Boom Extension
105 ft (32 m) Boom Extension
2
3
1
5
2
4
4
1
1
1
1
1
1
1
