RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Published 2-23-2017, Control # 644-00
Grove
8
Swing Gear and
Brake Submenu,
page 3-30
Press the F8 button
to open the
submenu.
(1) Swing gear indicator
(2) Current swing angle display
(3) Swing gear direction indicators
(4) Swing gear brake function
indicator
(5) Swing gear brake control selector
button, F14
9
Differential Lock
Indicator
Switch located on left armrest control
panel.
Gray: Differential lock off.
Yellow: Differential lock engaged.
10
Four-Wheel Drive
Indicator
Switch located on steering column.
Gray: Four-wheel drive off.
Yellow: Four-wheel drive engaged.
11
Rear Steer
Indicator
Switch located on left armrest control
panel.
Gray: Rear steer centered.
Yellow: Rear steer off center.
12
Parking Brake
Indicator
Indicates when the parking brake is
either off or engaged.
Switch located on steering column.
Gray: Parking brake off.
Red: Parking brake engaged.
13 Charging Indicator
Indicates when the charging system is
operating.
Gray: Charging.
Red: Charging off.
14 Engine Preheat
Indicates the engine preheat system is
operating.
Gray: Preheat off.
Yellow: Preheat system on.

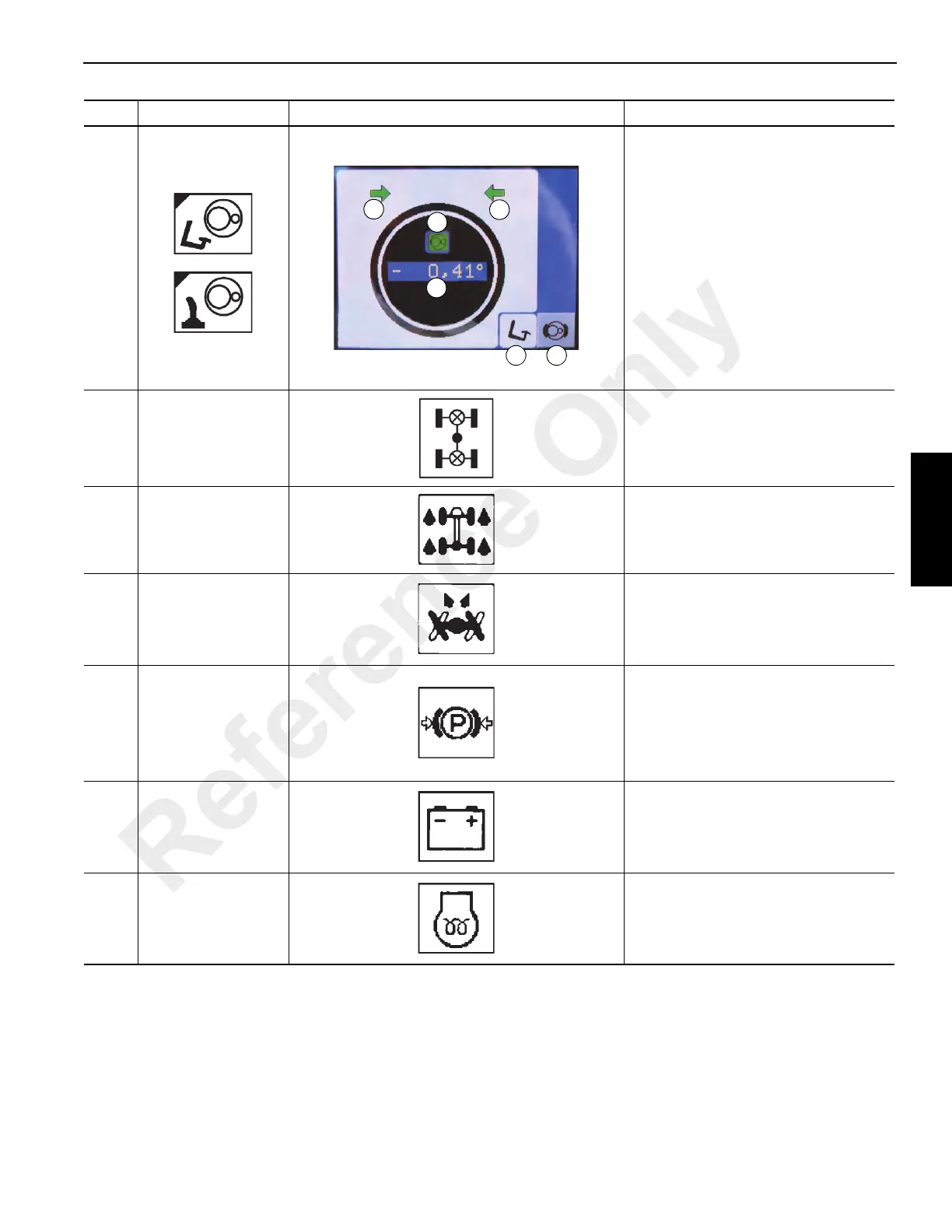

Item Description Graphic Explanation
