2011 75

User notice

M24D Hellios

V 1.0

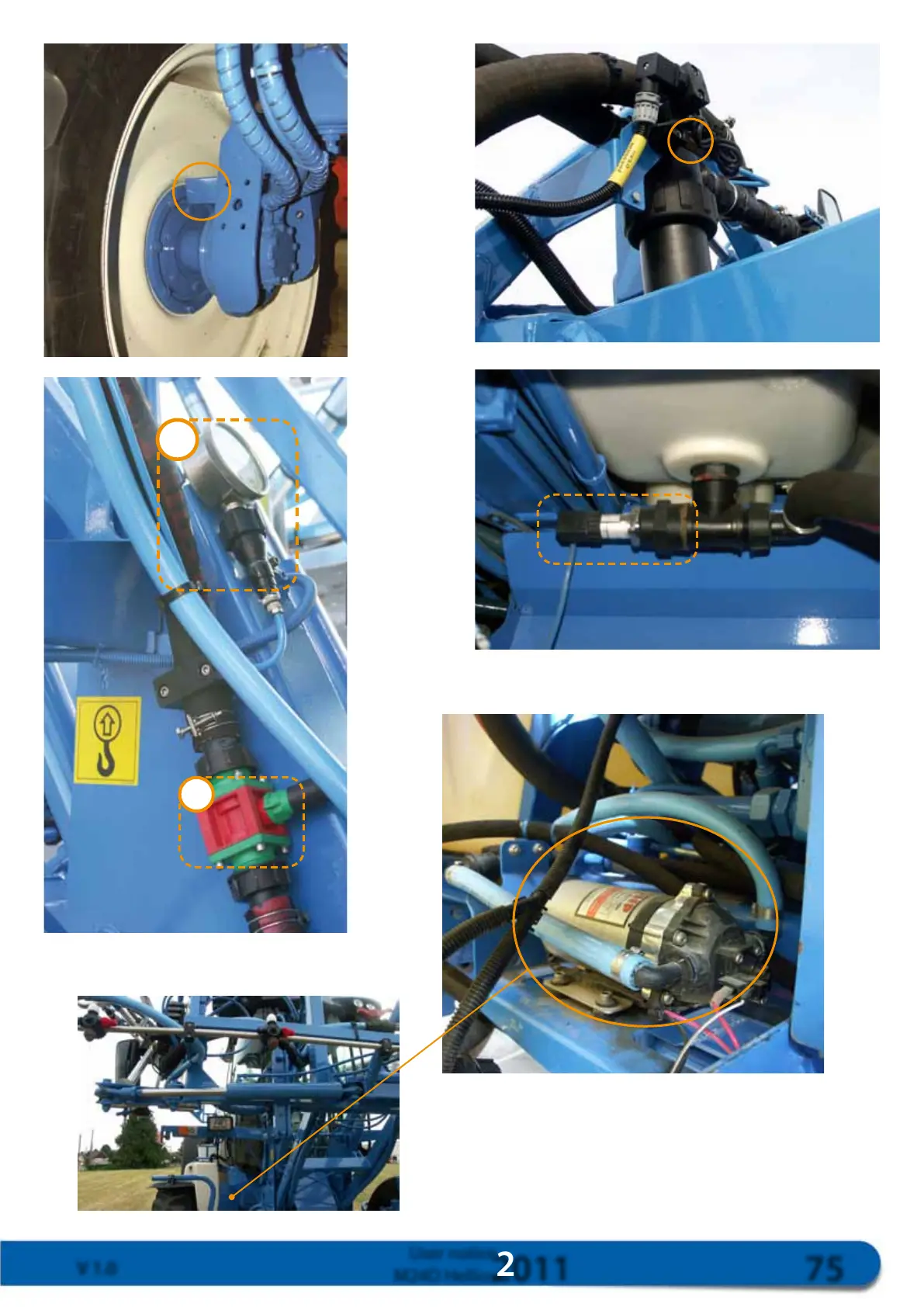

 Spray pressure gauge ① and flowmeter ②

 Forward speed sensor

 Spray pressure sensor

 Electronic gauge sensor (option)

 Residual volume pump (option)
