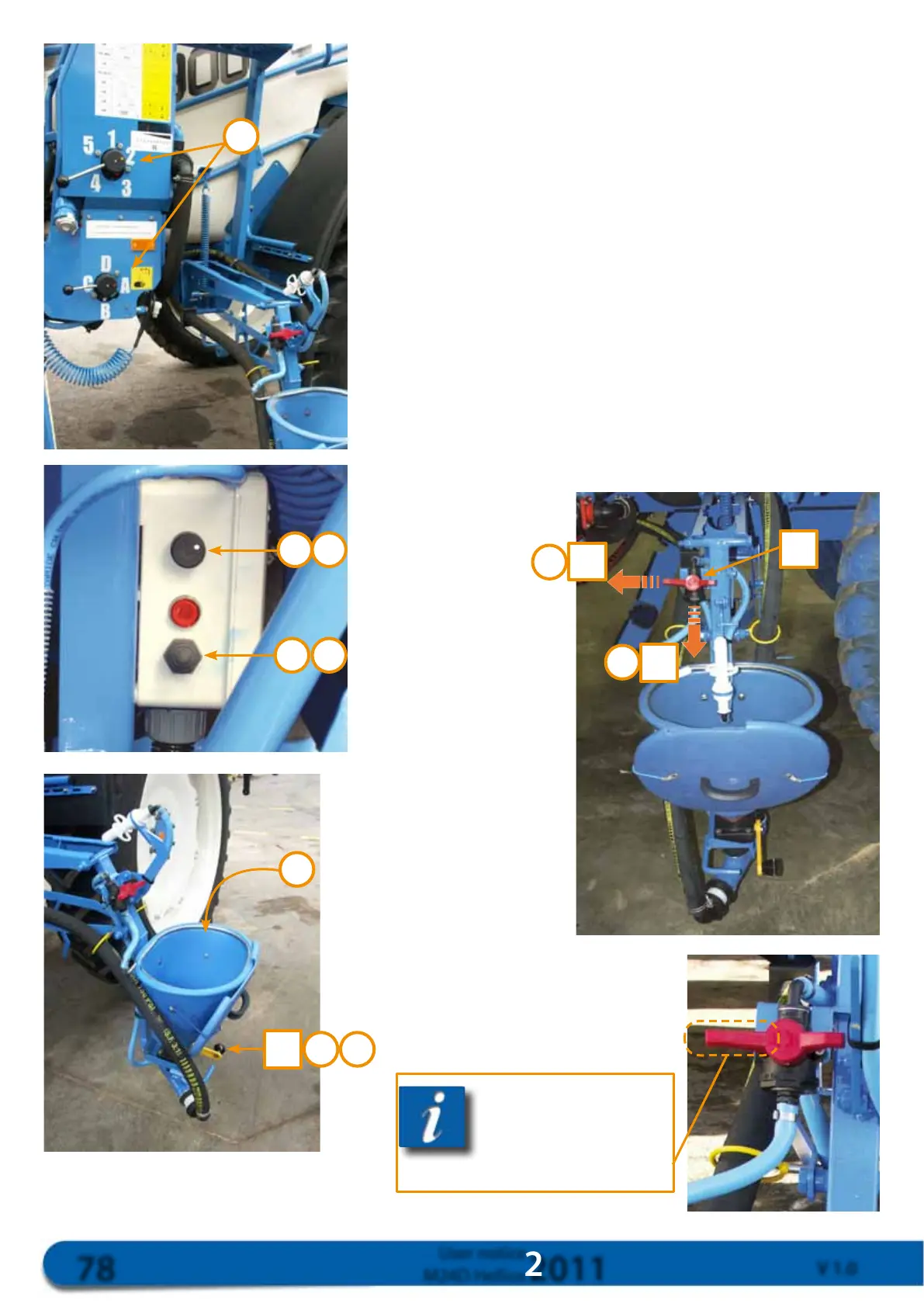

Incorporation - Position 2A
1. Rotate the valves to position 2 A. ①
2. Engage the pump. ②
3. Gradually accelerate the engine to mid-power. ③
4. Add the different products (liquid, micro-pellets or powder) to
the mixing hopper. ④
5. If powder is used, run water into the mixing hopper to dilute
and carry the powder. Rotate the valve V to position G. ⑤
6. Rotate the valve V to position I to cut the water supply. ⑥
7. Rotate the valve item F progressively. ⑦
8. During incorporation, make sure you do not completely empty
the inlet to avoid causing emulsion in the main tank
9. As soon as incorporation is complete:
a. Close the valve item F. ⑧
b. Reduce engine speed ⑨
c. Disengage the pump ⑩
The largest end of the
handle must be aligned
with the 3 positions when
topping-up and rinsing
