2011 79
User notice
M24D Hellios
V 1.0
22 31
23 30
V
H
24
I
28
27
G
F
25
29
21 32
33
34
J
26

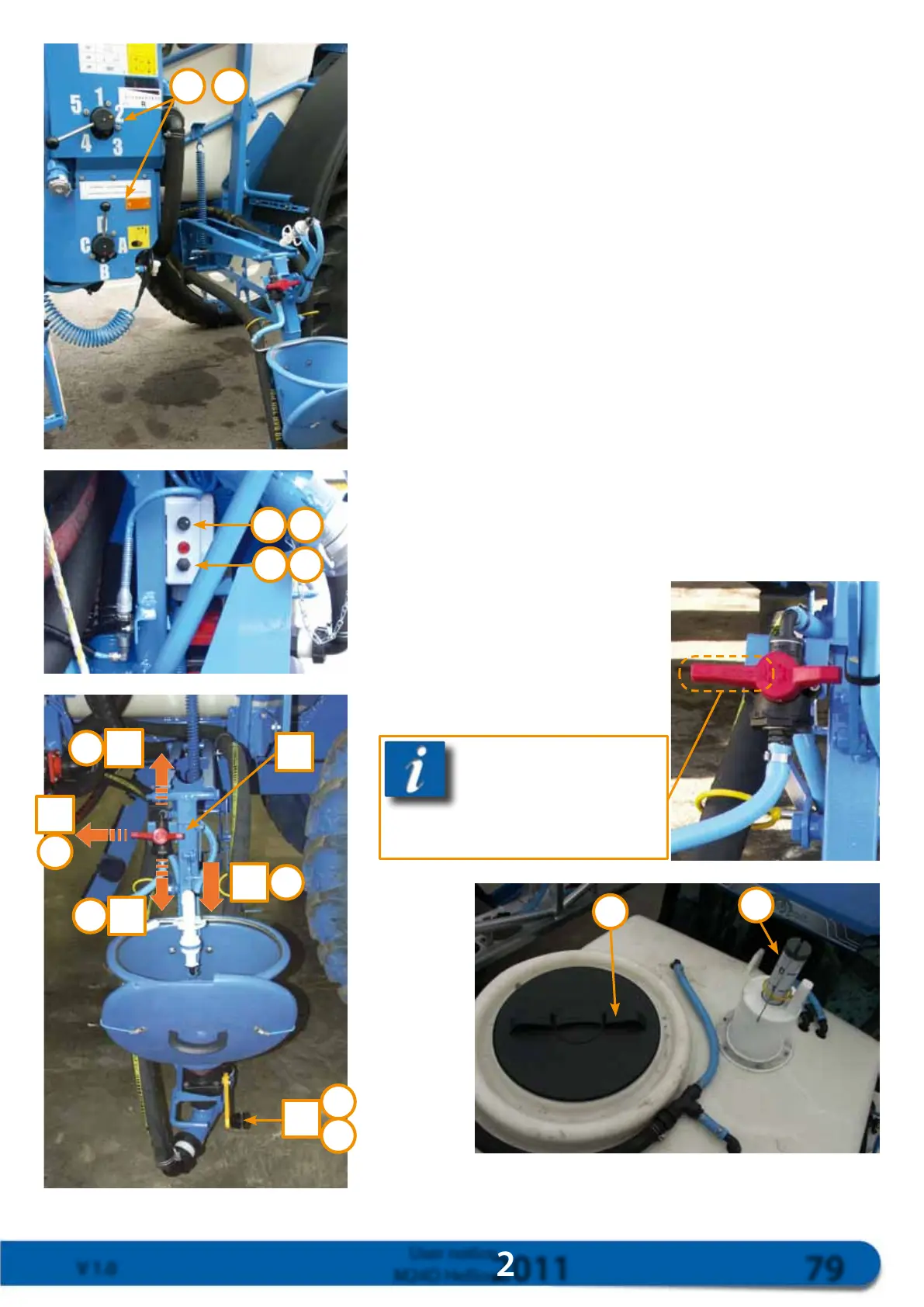

Top-up and rinsing - Position 2B
1. Rotate the valves to position 2 B ㉑㉛
2. Engage the pump ㉒
3. Gradually accelerate the engine to mid-power ㉓
4. Rotate the valve V to position H ㉔
5. Rotate the valve item F progressively ㉕
6. Fit the container on the container rinser
7. Apply pressure on the container, as shown by the arrow item J
until fresh water runs from the container
8. Release the pressure on the container
9. Carefully remove the container from the rinser while allowing
the water to run into the mixing hopper inlet
10. Repeat this process for the other containers
11. Rotate the valve V to position G to rinse the mixing hopper
inlet using fresh water ㉗
After the operation is completed
12. Rotate the valve V to position I ㉘
13. Close the valve item F ㉙
14. Reduce engine power ㉚
15. Disengage the pump ㉛
16. Rotate the valves to position 1 A (Spray) ㉜
17. Close the lid of the main tank ㉝
18. Retract the mechanical gauge of
the main tank ㉞
29. Disconnect the suction pipe
20. Fit the cap on the symmetrical
half union
21. Fit and lock the mixing hopper
in place
The largest end of the
handle must be aligned
with the 3 positions when
topping-up and rinsing
