INSTALLATION3 - 2
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D
Mounting
WARNING
All assembly tasks on the D-MAXE system must be performed
when there is no electrical power in the system.
Assembly tasks and mechanical settings must only be per-
formed when the machine has been stopped and secured from
being turned on again.
Installation location of
D-MAXE Controller – Protection class: IP54
– Operating temperature: 0°C ... 60°C
(see
Technical Data, page 11-1
).
– Relative humidity: 10% to 90% non condensing
– Operating altitude above sea level: maximum 3000m
– On a fixed machine part or on a wall
– Not in places where there is a risk of explosions.

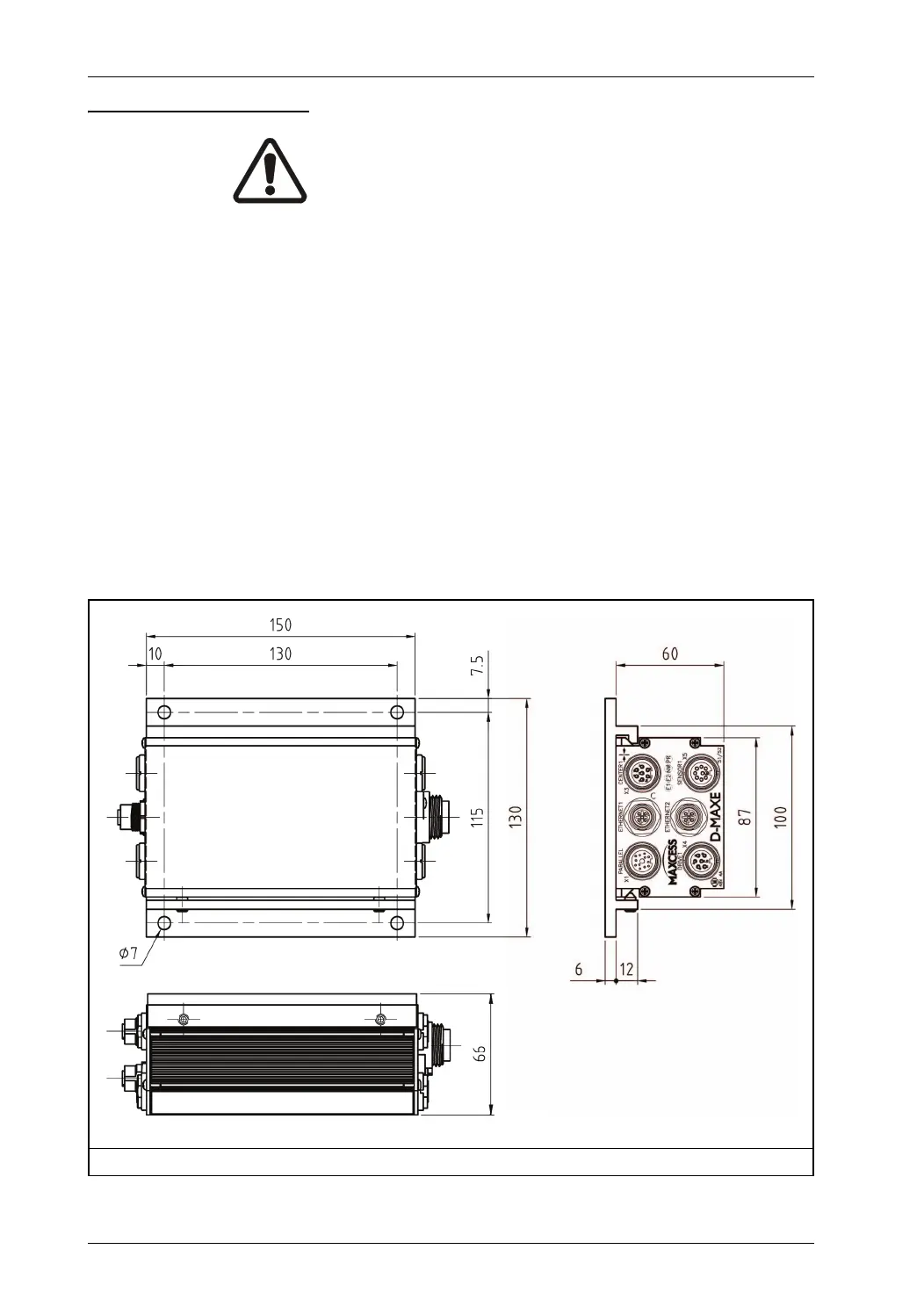

Figure 3.1: Dimensions of the D-MAXE 1 and D-MAXE 2 controllers with assembly bracket
