INSTALLATION3 - 10
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D
LEDs on the D-MAXE
Controller Additional information about error messages that are displayed
may be found in Section
Troubleshooting, page 10-1 .
Connections on the operator
interface
LED Status Indicates
E1
(X2/1)
Off No Ethernet connection
Green or
Green
flashing
Ethernet connection detected
Yellow
Either a 10mbps connection or a
half-duplex connection is recognized
Ε2
(Ξ2/ 2)
Off No Ethernet connection
Green or
Green
flashing
Ethernet connection detected
Yellow
Either a 10 mbps connection or a
half-duplex connection is recognized
NW
Off
No external device is connected to
connection X8
Green
External device recognized at
connection X8
(e.g. an operator interface OI-B/OI-N)
PR
Off No power supply
Red
Power supply voltage too low, internal
voltage outside tolerance or internal
temperature too high
Green Power supply and temperature OK
Yellow No motor voltage

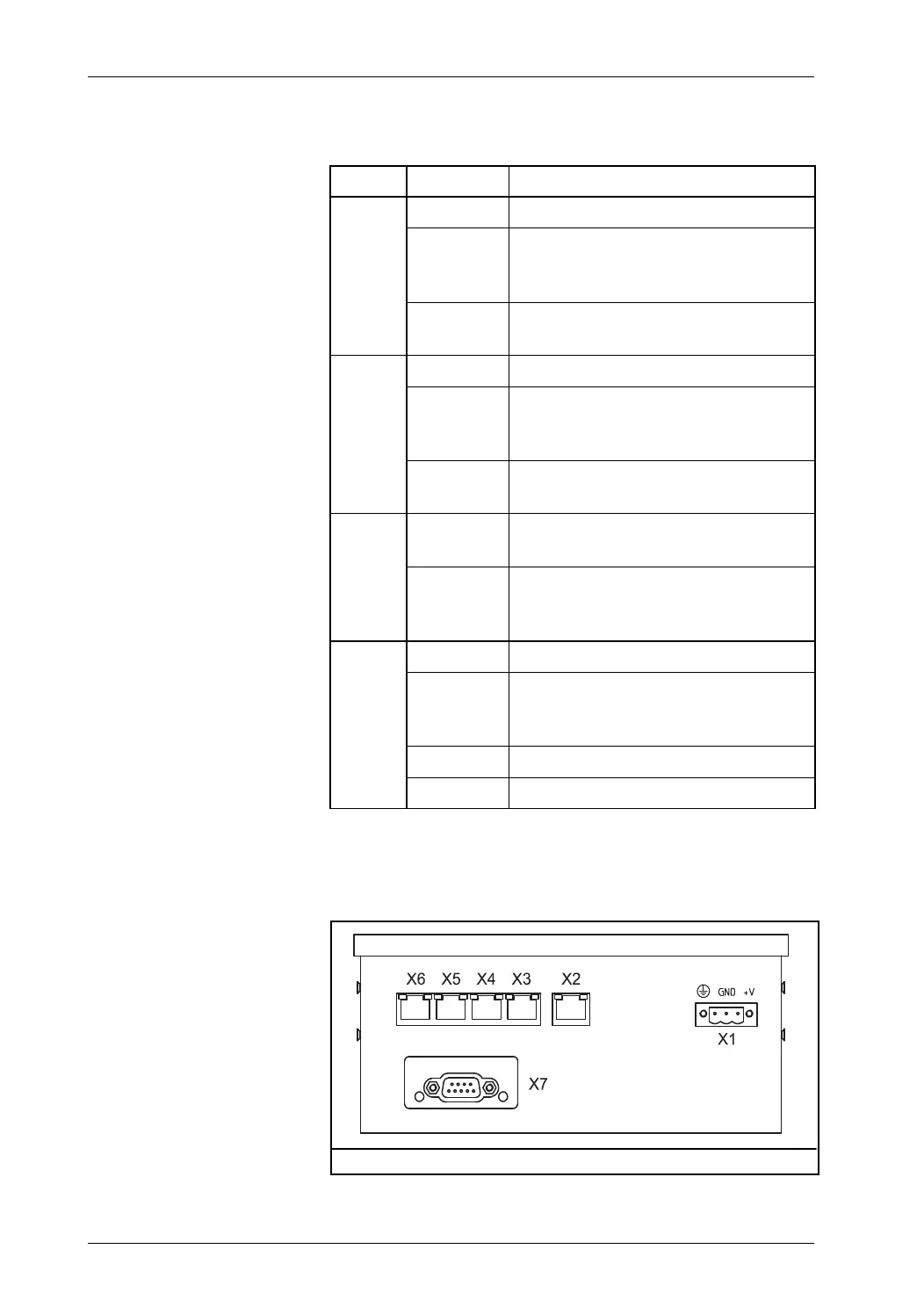

Figure 3.9:Connections on operator interface OI-N
