INSTALLATION3 - 4
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D
Installation location of
D-MAX operator interface
OI-B/OI-N – Protection class: IP64
– Operating temperature: 0°C ... 60°C
– Relative humidity: 10% to 95% non-condensing
– Operating altitude above sea level: maximum 3000m
– On a fixed machine part or on a wall
– Protect from vibrations
– Do not place close to powerful magnetic fields:
The electronic components may be damaged.
– Protect from falling objects:
The operator interface can be damaged or an unintended
switching process may be triggered.
- Cable output optionally right or left - Cable length: 360mm

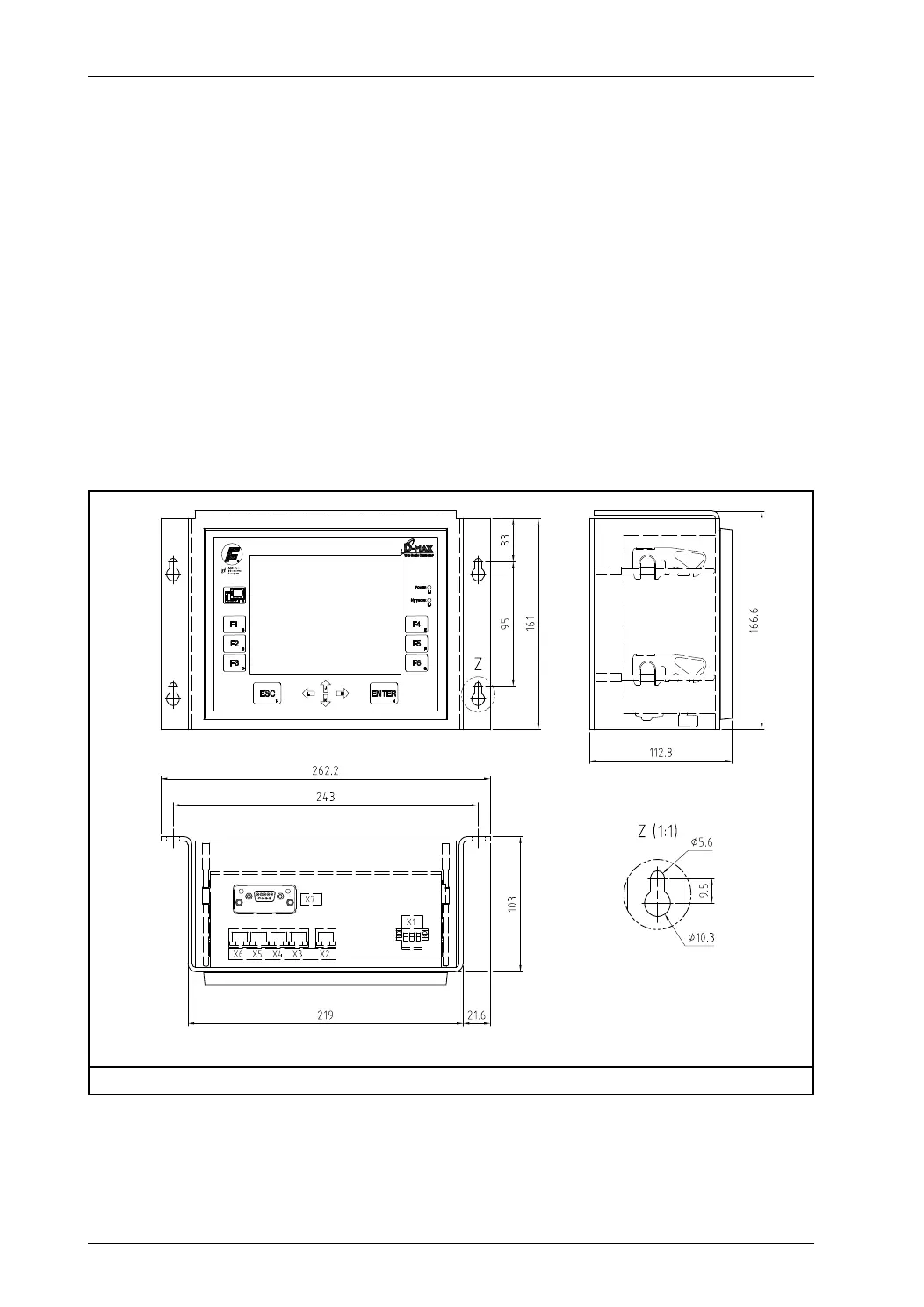

Figure 3.3: Dimensions of the D-MAX operator interface OI-B/OI-N assembly bracket
