OPERATION 4 - 10
D-MAXE with OI-B/OI-Nwww.maxcessintl.com MI 2-296 1 D
Bedienung.fm

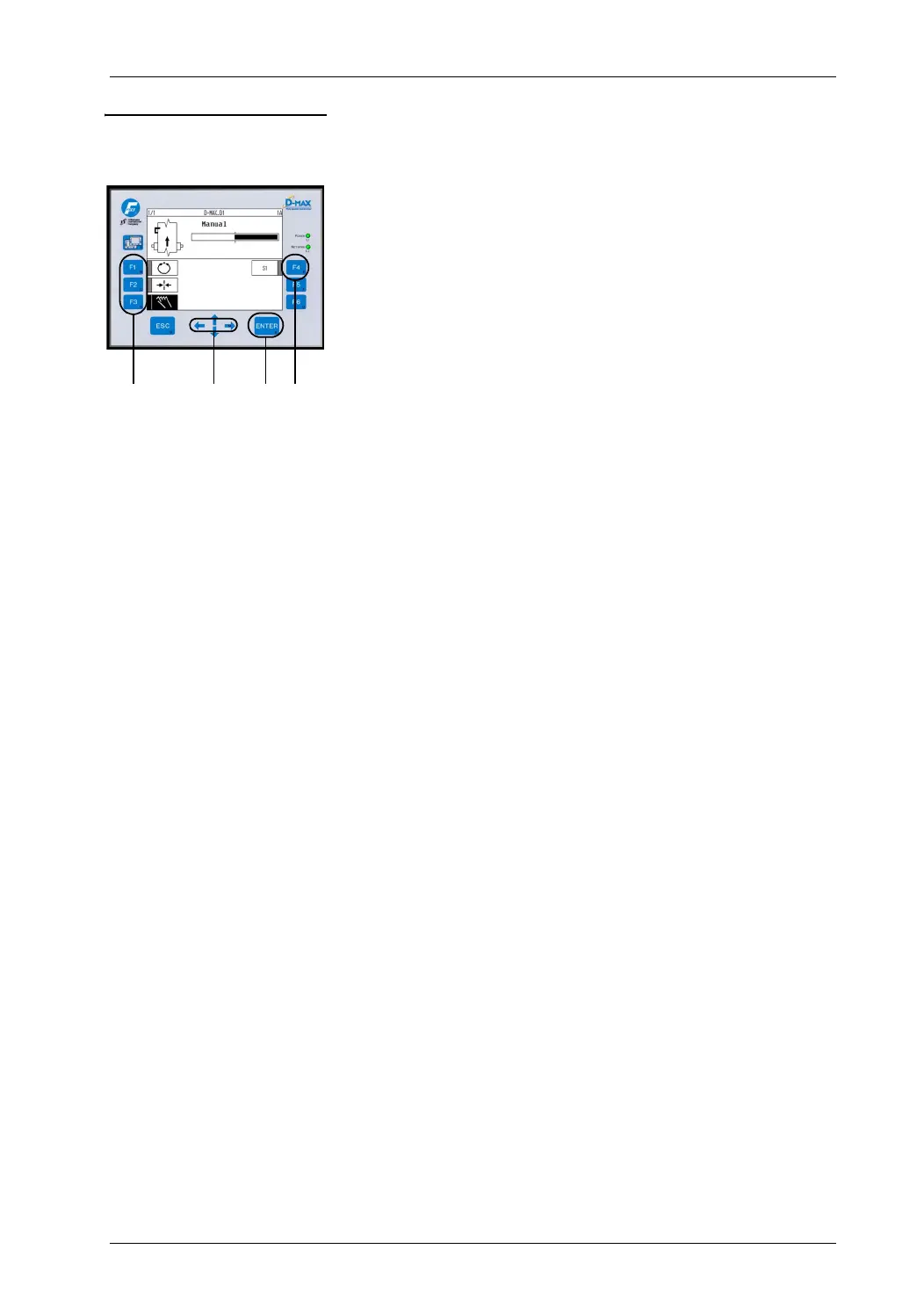

User level All user functions required for normal operation of the D-MAXE
system appear on the user level:
A Select operating modes
B Select jobs (Types of Guiding)
C Move drive/move guidepoint
D Switch to menu structure
The D-MAXE system is completely controllable with the
corresponding keys on the operator interface. These user
functions are described in the following sections.
The D-MAXE system can also be operated via the
– X3 parallel interface (see
Parallel input matrix, page 11-6
)
or
a fieldbus
– interface on the user level.
Using appropriate customer-specific programming, additional
special user functions can be assigned to keys F4 through F6.
These customer-specific additions to user functions are
described in "Supplementary Operating Instructions" for the
D-MAXE system and in the system documentation.
