CONTROLLER MENUS: 1Y.5 HARDWARE IOS7 - 38
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D

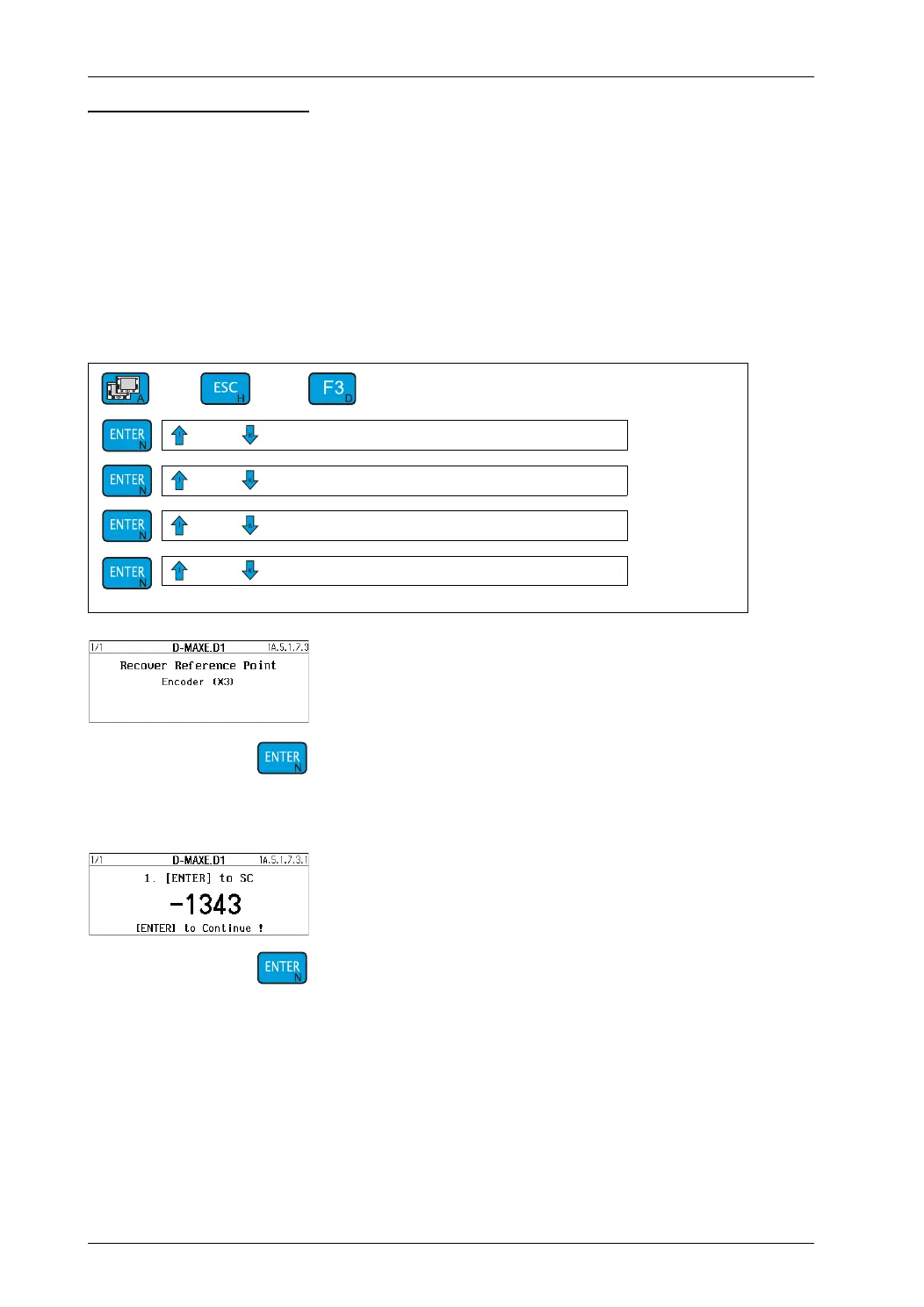

Menu 1y.5.1.7.3
Recover Reference Point
Description You can use the Recover Reference Point menu to recover lost
thresholds without having to perform a calibration again.
Thresholds can be lost if the electrical power of the encoder has
been turned off, for example.
Menu
 Key sequence for menu 1y.5.1.7.3:
 Start the sequence for recovering the reference.
Menu 1y.5.1.7.3.1
1. [ENTER] to SC
The drive first moves to the Servo-Center position.
 Approach the Servo-Center position
1y.5
→ Hardware IOs
or
1y.5.1
→ Sensor Setup
or
1y.5.1.7
→ Encoder (X3)
or
1y.5.1.7.3
→ Recover Reference Point
or
...
...
