BODY STRUCTURE [BODY STRUCTURE]
09-80A–5
09-80A
.
End Of Sie
15
16
17
14
13
12
1110
am6xub0000005

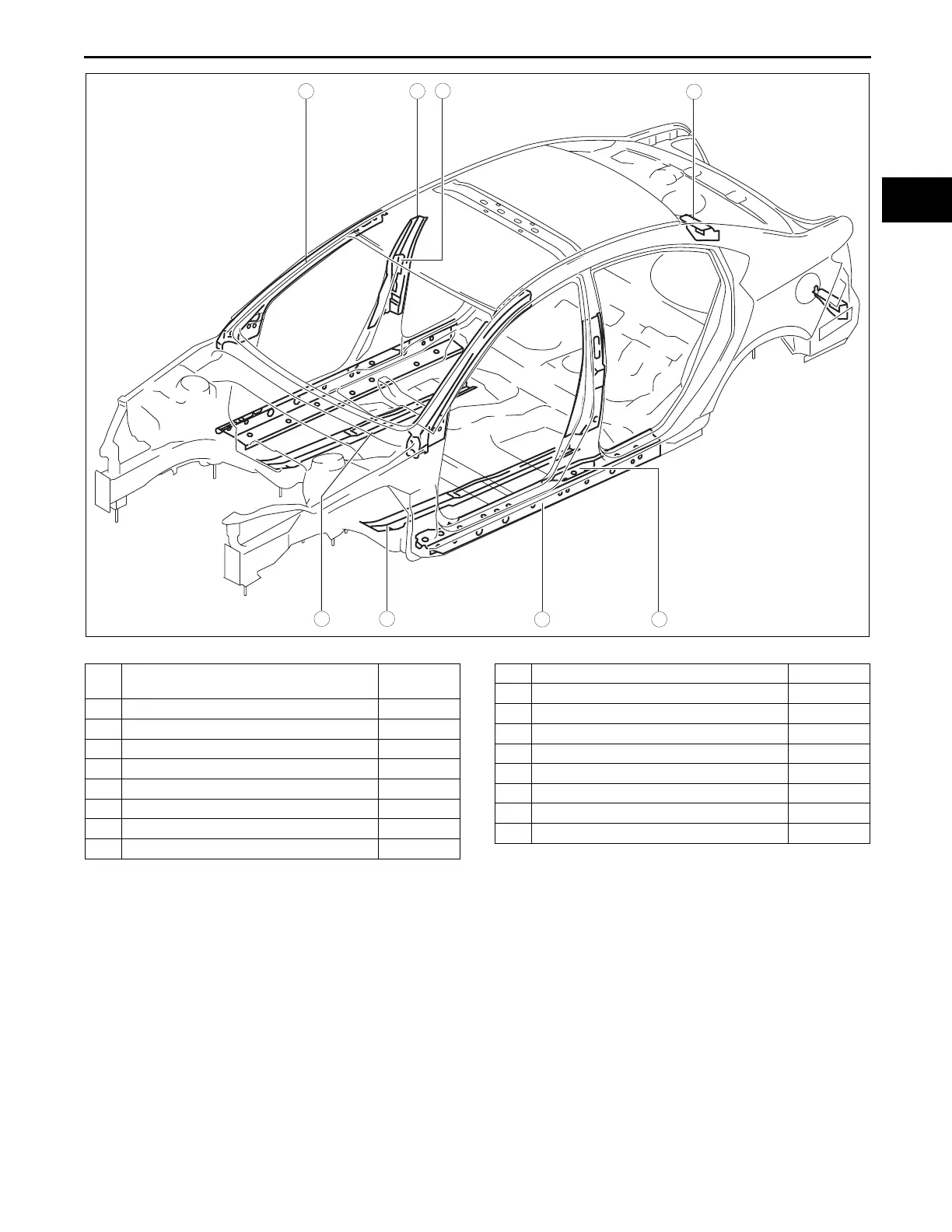

NO. Part Name
Strength
(MPa)
1 Front side frame (inner, front) 590
2 Hinge pillar (inner) 590
3 Hinge reinforcement 590
4 Front pillar (inner) 590
5 Roof rail (inner, rear) 590
6 Side sill (inner) 590
7 Hinge reinforcement (center) 590
8 B-pillar (inner) 590
9 Roof rail reinforcement 590
10 Front pillar reinforcement 780
11 B-pillar reinforcement (center) 780
12 B-pillar reinforcement (inner) 980
13 Rear bumper bracket 780
14 Front B frame 780
15 Floor reinforcement 780
16 Side sill reinforcement 780
17 Side sill reinforcement (upper) 780
