ULTRA HIGH-TENSION STEEL [BODY STRUCTURE]
id098013745600

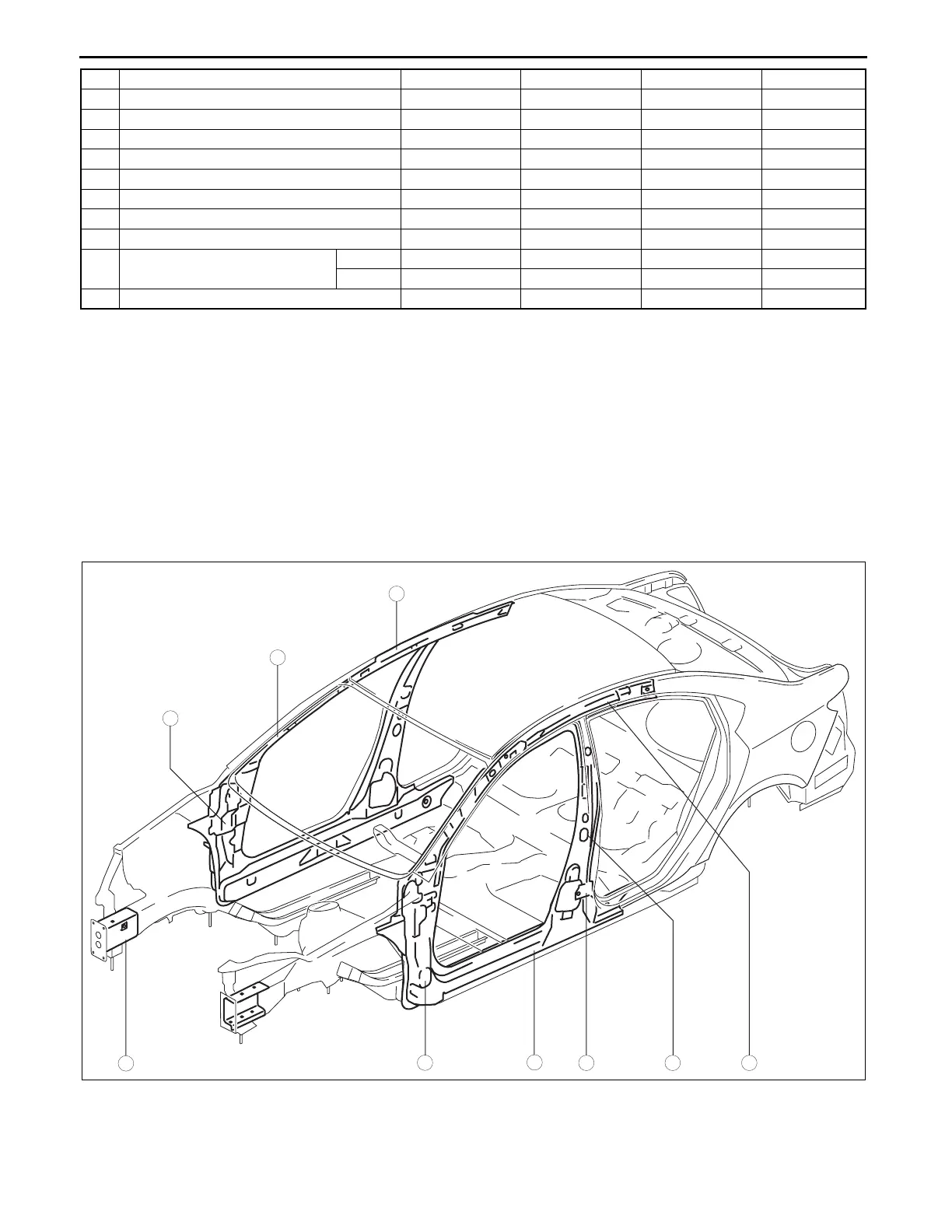

Characteristics of Ultra High-Tensile Steel Plates
• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.
• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates
are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.
• Enhanced shock absorption has improved the safety.
Range of Use and Cautions for Service
• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part
using a frame repair machine, perform the work verifying that other parts are not affected.
• When drilling welded parts, use a well-ground drill bit.
• After welding, inspect the weld strength. If adhesion is poor, perform CO2 arc welding (plug welding).
51 Crossmember No.2 — — — 1.2 {0.047}
52 Front seat bracket — × — 1.4 {0.055}
53 Front B frame × — × 1.2 {0.047}
54 Crossmember No.4 (front) — — × 1.2 {0.047}
55 Crossmember No.4 (rear) — — × 0.9 {0.04}
56 Crossmember No.3 — × — 1.4 {0.055}
57 Center floor pan — — × 0.6 {0.02}
58 Rear floor pan — — × 0.65 {0.026}
59 Floor side panel — — × 0.6 {0.02}
60 Rear side frame
Front — ××1.8 {0.071}
Rear — ××1.8 {0.071}
61 Rear end panel — — × 0.65 {0.026}
6
4
3
2
1
7 8 9
5
am6xub0000005
