Meggitt VM600 Hardware Manual

VM600 MPS hardware manual (standard version) MAMPS-HW/E 7 - 21
Edition 17 - February 2018
Shaft relative expansion
PROCESSING MODES AND APPLICATIONS
7.9.4 Pendulum method
(1) Description
With this configuration a magnet on a lever arm is used to follow the movement of the shaft
collar (see Figure 7-17). The lever arm ratio (L1 / L2) enables the measuring range to be
extended well beyond that of a transducer used on its own.
ΔL = GAP
 GAP
i
where GAPi is the initial gap.

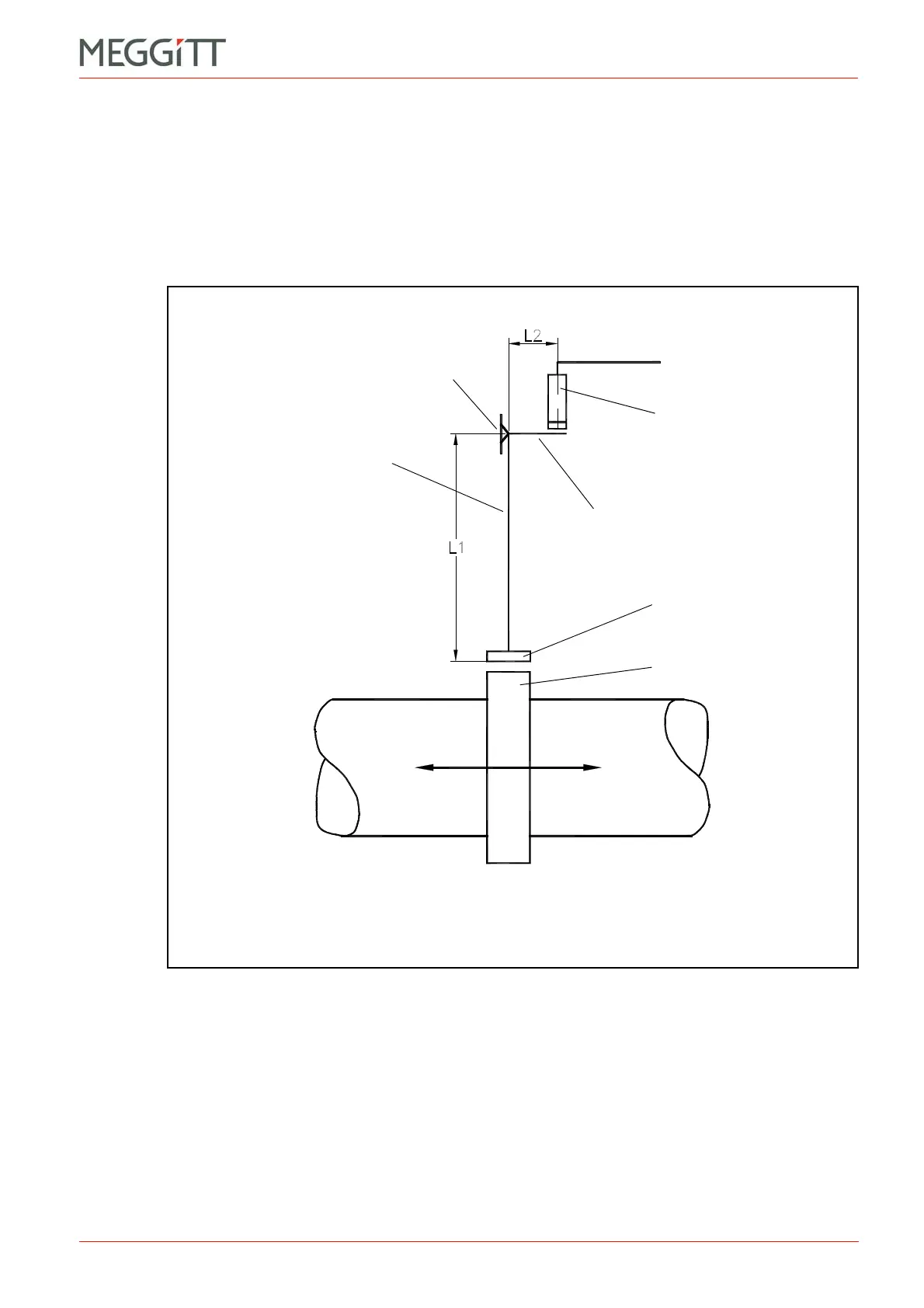

Figure 7-17: A measuring system using a pendulum with magnetic
head installed near a shaft collar
Proximity transducer
Short arm of lever
Shaft collar
Head of pendulum
(magnetic)
Vertical arm of pendulum
(long arm of lever)
Shaft
Pivot point
