VM600 MPS hardware manual (standard version) MAMPS-HW/E 9 - 29

Edition 17 - February 2018

Connecting speed sensors

CONFIGURATION OF MPC4 / IOC4T CARDS

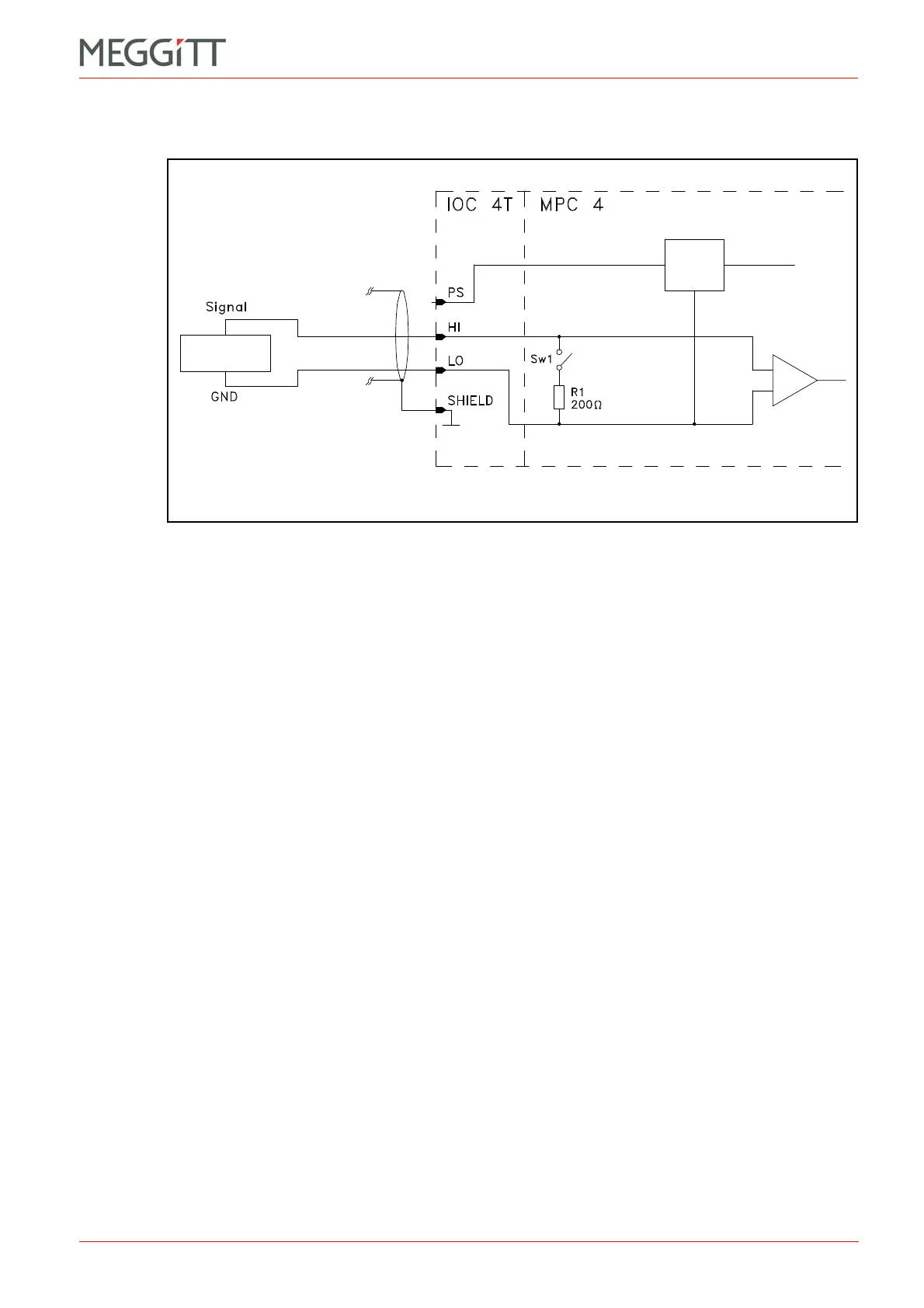

9.3.5 Connection diagram for frequency generator

Notes

1- Switch Sw1 is open to allow voltage-modulated signals to be processed.

The Signal Transmission Mode field has to be set to the Voltage option.

2- The sensor power supply is always set to 27.2 V.

Figure 9-22: Connection diagram

Sensor

power

supply

SPEED

INPUT

Frequency

generator

(27.2 V only)
