Meggitt VM600 Hardware Manual

VM600 MPS hardware manual (standard version) MAMPS-HW/E 2 - 5
Edition 17 - February 2018
Racks
OVERVIEW OF VM600 MPS HARDWARE
2.1.3 VM600 slimline rack – 19" rack with a height of 1U (ABE056)
A VM600 MPS can be housed in a slimline 19 inch rack (84TE) with a height of 1U (1HE),
known as the VM600 slimline rack. This type of rack is an ABE056. An example of a MPS
housed in an ABE056 rack is shown in Figure 2-4.
An ABE056 contains a front card cage and a rear card cage. The card cages are separated
by the rack backplane.
The appearance of the front panel and rear panel of the rack depends entirely on the types
of cards installed in the two card cages. These cards are presented in the following sections
of this chapter.
NOTE: Both AC-input and DC-input versions of the 19” rack – 1U (ABE056) are available.
This should be specified during ordering (see 2.11 RPS1U rack power supply
(ABE056 only)).
POWER SUPPLY
CHECK
POWER SUPPLY
18-58 VDC
60Wmax
POWER SUPPLY
CHECK
POWER SUPPLY
90-264VAC
100Wmax
Rear view (AC-input version)

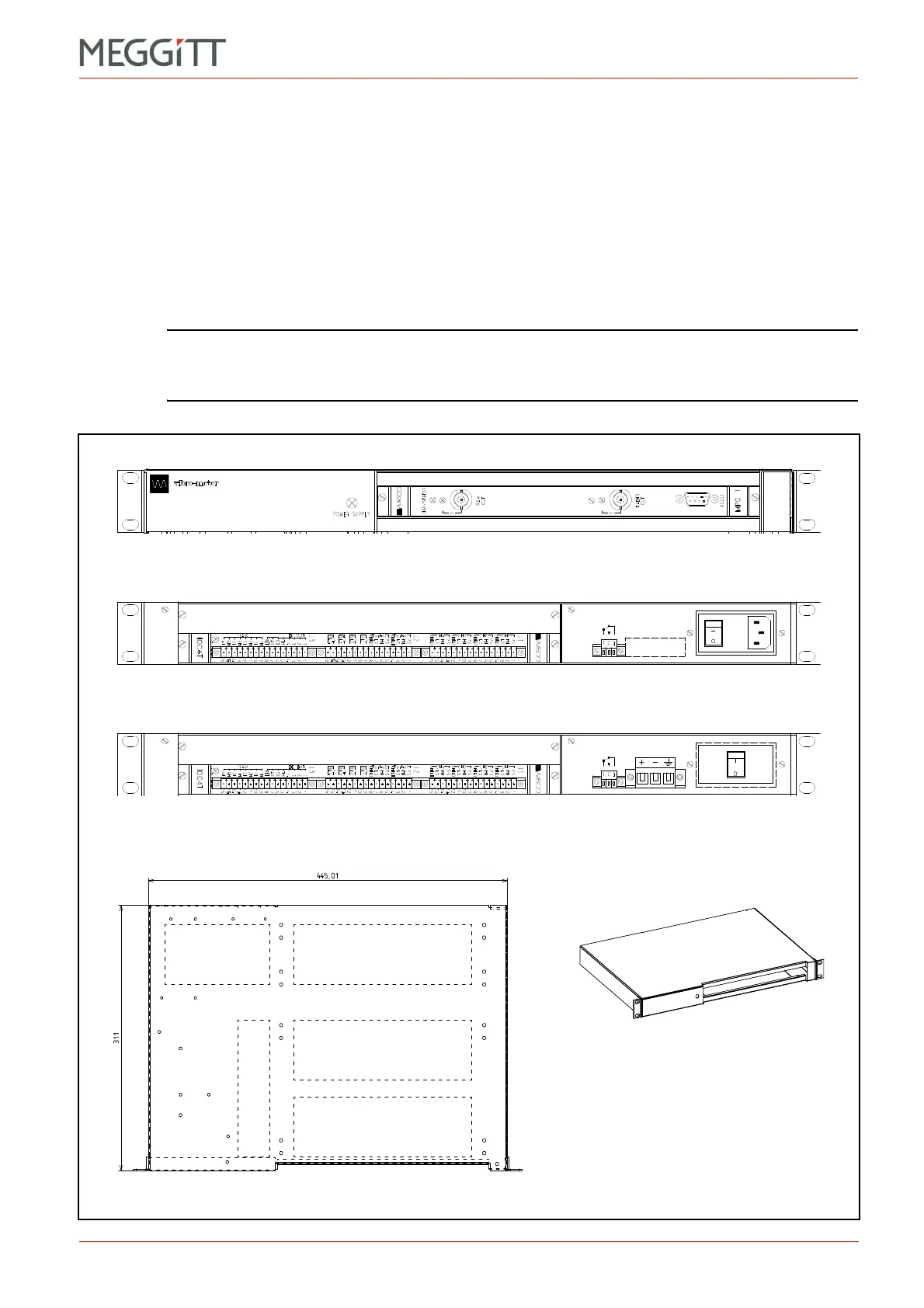

Figure 2-4: Views of a typical ABE056 rack
Top view 3D view
Front view
Rear view (DC-input version)
