VM600 MPS hardware manual (standard version) MAMPS-HW/E 9 - 25
Edition 17 - February 2018
Connecting speed sensors
CONFIGURATION OF MPC4 / IOC4T CARDS
9.3.3 Connection diagrams for unpowered hardware
9.3.3.1 Voltage-modulated signal
Applies to generic sensors.
Notes
1- Switch Sw1 is open to allow voltage-modulated signals to be processed.
For non-Vibro-Meter devices, the Signal Transmission Mode field has to be set to the
Voltage option.
2- The sensor power supply is always set to î›­27.2 V.

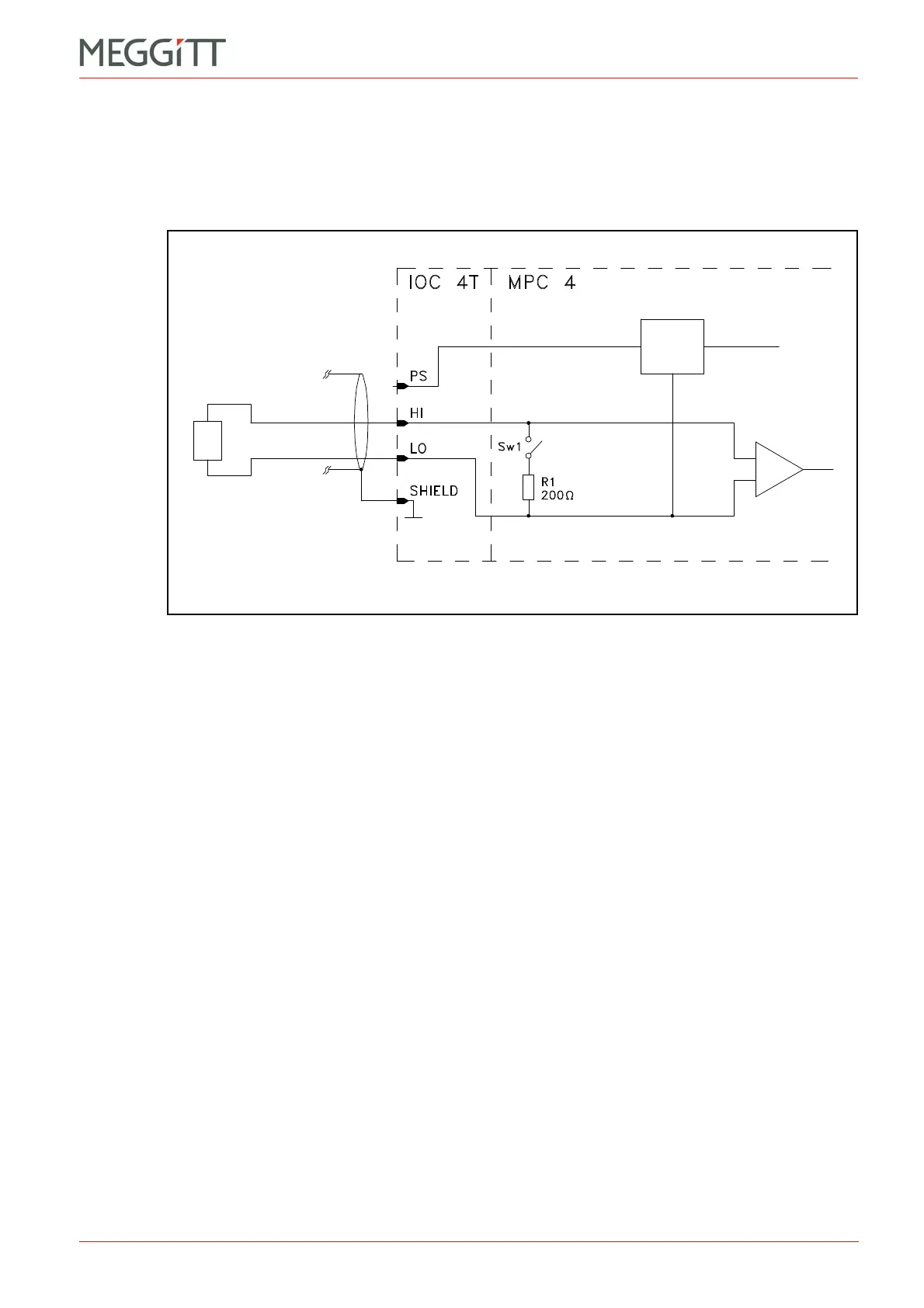

Figure 9-18: Connection diagram
Sensor
power
supply
SPEED
INPUT
(î›­27.2 V only)
