2 - 42 VM600 MPS hardware manual (standard version) MAMPS-HW/E
Edition 17 - February 2018
RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
3- When only the second RPS6U (PS2) is installed (slots 15 to 17):
• Jumper J16 must be closed
• Jumper J17 must be left open.
4- When both RPS6Us (PS1 and PS2) are installed:
• Jumper J16 must be left open
• Jumper J17 must be left open.
2.10.11 Power supply labelling
Information regarding the DC and AC inputs for the RPS6U rack power supplies used by a
VM600 system rack (ABE04x) is available as follows:
• For later versions of VM600 system racks:
• Input labels close to the input connectors on the associated rear panels provide the
specifications for the RPS6U power supply inputs (see 2.10.9 Associated rear
panels).
• A VM600SYS label on a rear panel provides additional information about the VM600
system such as order number and system configuration (SysCFG) number
(see Figure 2-30).
• For earlier versions of VM600 system racks, a VM600SYS label on a rear panel provides
the specifications for the RPS6U power supply inputs and additional information about
the VM600 system such as order number (see Figure 2-31).

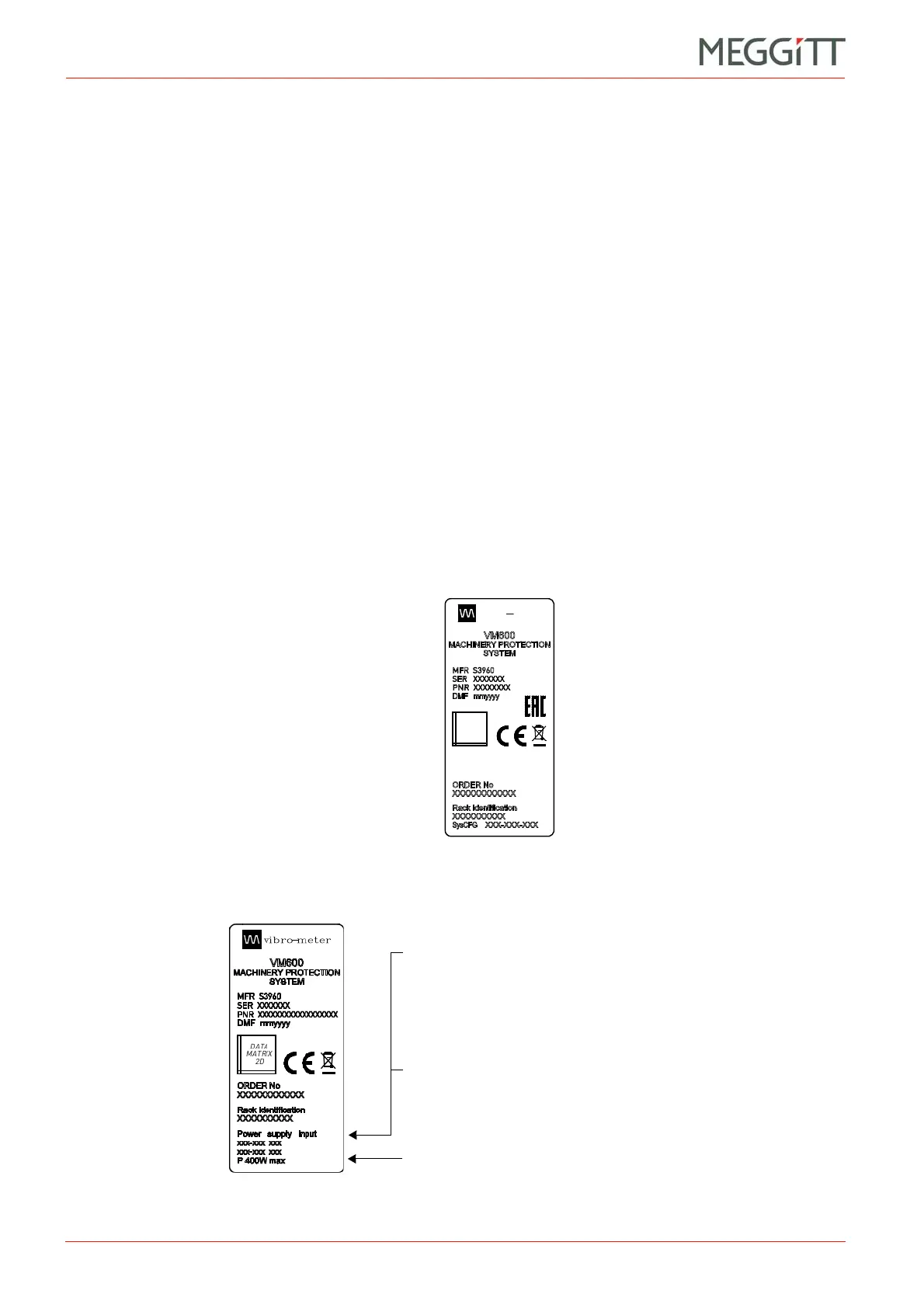

Figure 2-30: Example VM600SYS label (later versions of VM600 system racks)
vibro meter
DATA
MATRIX
2D
Rated DC supply voltage range:
(Corresponding rack power supply PNR / model)
18-32VDC (200-582-200-xxx / SIM-275D-24)
38.4-57.6VDC (200-582-200-xxx / SIM-275D-48)
57.6-100VDC (200-582-200-xxx / SIM-275D-72)
80-145VDC (200-582-200-xxx / SIM-275D-B0)
Rated AC supply voltage range and its frequency:
(Corresponding rack power supply PNR / model)
115-230VAC 50/60Hz (200-582-500-xxx / SIM-275A)
Maximum active power
Figure 2-31: Example VM600SYS label (earlier versions of VM600 system racks)
