2 - 46 VM600 MPS hardware manual (standard version) MAMPS-HW/E
Edition 17 - February 2018
RPS1U rack power supply (ABE056 only)
OVERVIEW OF VM600 MPS HARDWARE
2.11.2 Power supply labelling
Information regarding the DC and AC inputs for the RPS1U power supply used by the VM600
slimline rack (ABE056) is available on labels on the top and rear of the rack (see Figure 2-34).
(a) DC-input
supply

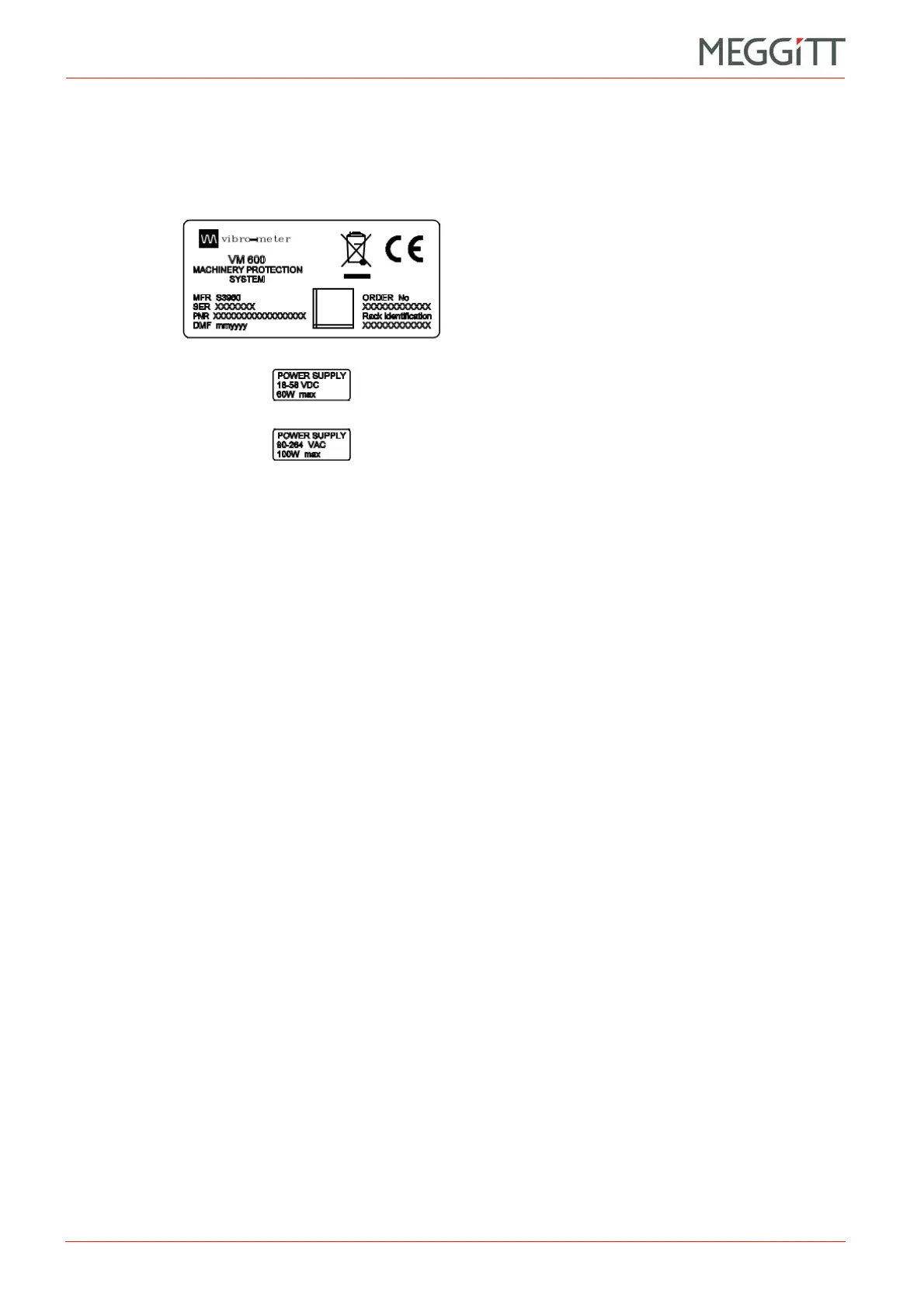

Figure 2-34: RPS1U power supply information (ABE056)
Rated AC supply voltage range and frequency
(corresponding rack PNR):
90-264VAC (VM600-1U/100/x/x)
Maximum active power
Rated DC supply voltage range (corresponding rack PNR):
18-58VDC (VM600-1U/200/x/x)
Maximum active power
(b) AC-input
supply
