Meggitt VM600 Hardware Manual

3 - 6 VM600 MPS hardware manual (standard version) MAMPS-HW/E
Edition 17 - February 2018
VM600 6U 19" rack backplane (ABE04x)
GENERAL SYSTEM DESCRIPTION
3.4 VM600 6U 19" rack backplane (ABE04x)
3.4.1 General overview
The VM600 MPS using a 6U 19" system rack (ABE04x) with a custom-designed backplane
combines features of a VME backplane and other special features to support Meggitt Sensing
Systems’ Vibro-Meter product line (see Figure 3-3 and Figure 3-4).
This backplane consists of 3 different systems:
• A VME bus (P1)
• An analog bus (P3)
• Through connections between P2 and P4.
P1 P3
P2 P4
...
...
...
...
...
...
...
...
...
...
...
...
Shield
Backplane
Front card cage
of VM600 rack
(Female connectors)
Rear card cage
of VM600 rack
(Male connectors)

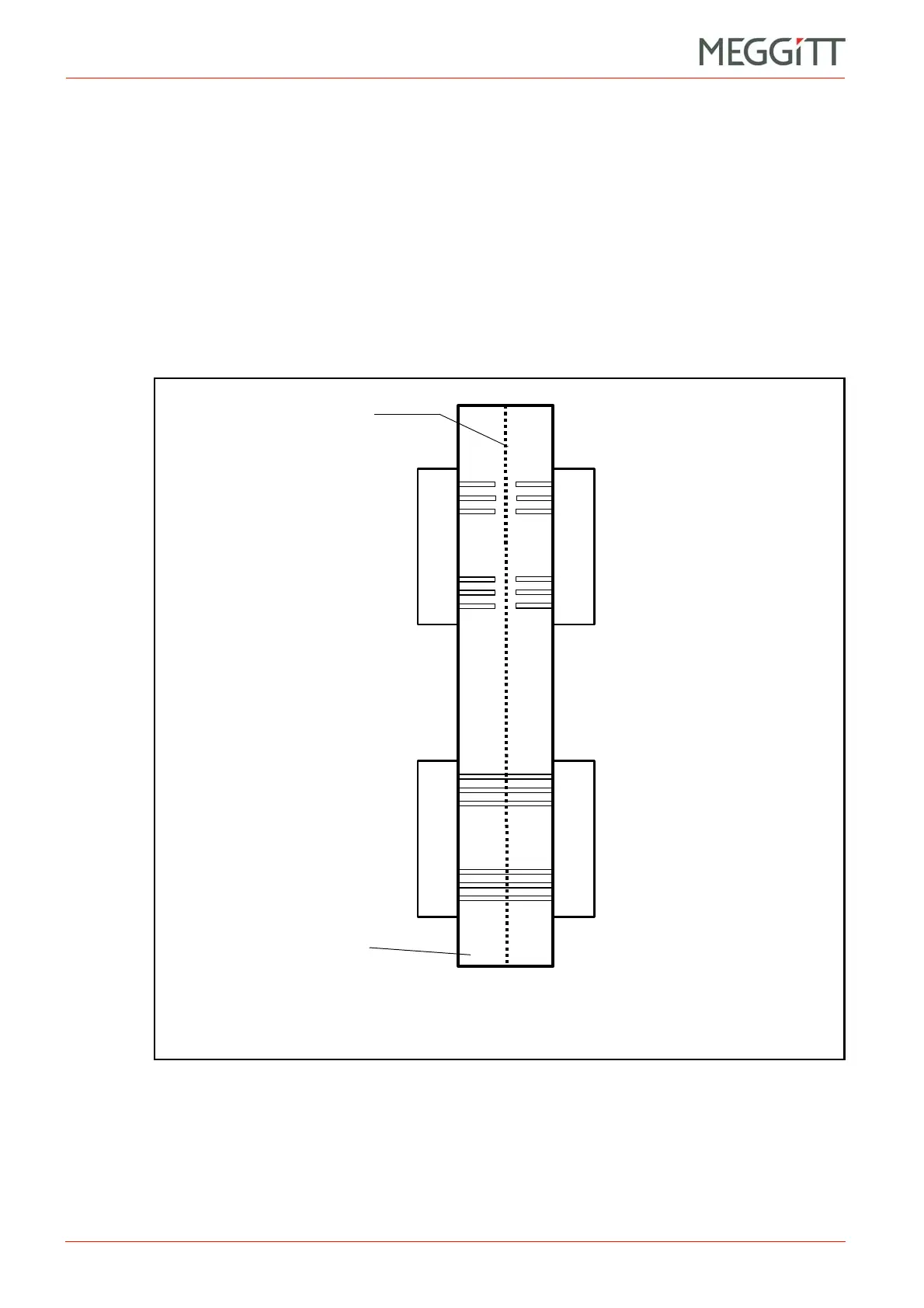

Figure 3-3: Cross-section of a VM600 rack (ABE04x) backplane
showing the four buses and connectors
