Meggitt VM600 Hardware Manual

7 - 26 VM600 MPS hardware manual (standard version) MAMPS-HW/E
Edition 17 - February 2018
Quasi-static pressure monitoring
PROCESSING MODES AND APPLICATIONS
Principal features:
• HP and LP cut-off frequencies for band-pass filtering can be set in the range 0.1 Hz to
10 kHz
• HP/LP ratio: up to 500
• Slope: up to 60 dB/octave
• Cut-off frequency: defined at 0.1 dB
• Unity gain: max. ±0.3 dB
• Pass-band ripple: ±0.1 dB
• Stop-band rejection: min. 50 dB
• Pressure processing (mbar, bar, psi, Pa) => pressure unit (mbar or bar or psi or Pa)
• User-defined input unit => User-defined output units (scaled 1 to 1).
The processing selects for output two parameters per channel. Each can be expressed as a
rectified value of the type (True) RMS, (True) Mean, (True) Peak or (True) Peak-Peak. In
addition, the following scaled RMS values are available: Scaled Mean, Scaled Peak.
Any of the four pressure units (mbar, bar, psi, Pa) can be selected, provided the unit is defined
for the input channel.
7.13Quasi-static pressure monitoring
This type of processing is equivalent to that used for absolute housing expansion processing
(see 7.10 Absolute housing expansion).
Input
Value
Alarm
Static pressure
compensation
Alarm level
detector

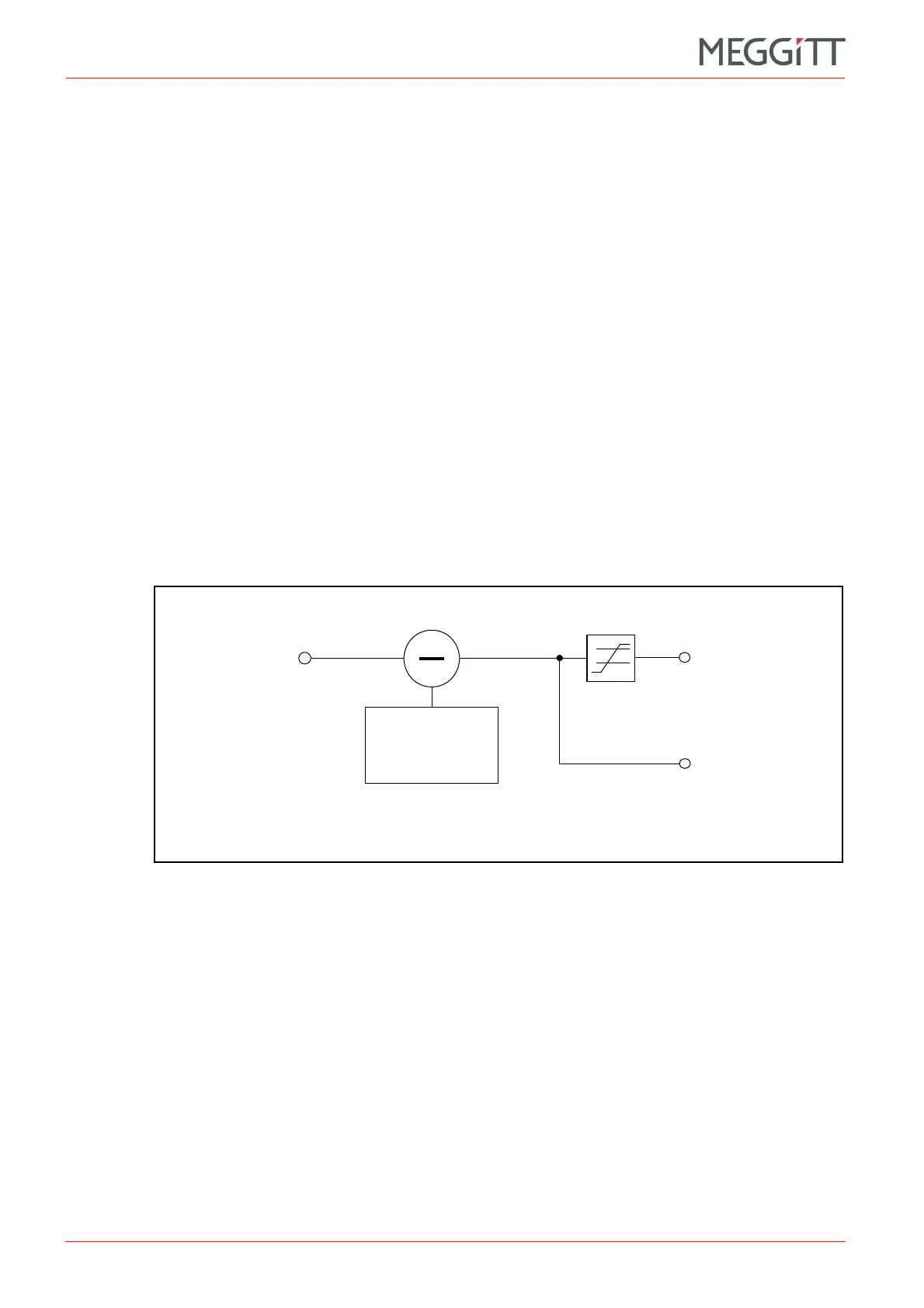

Figure 7-24: Block diagram showing quasi-static pressure processing
