VM600 MPS hardware manual (standard version) MAMPS-HW/E 2 - 9
Edition 17 - February 2018
IOC4T input/output card (ABE04x and ABE056)
OVERVIEW OF VM600 MPS HARDWARE
2.3 IOC4T input/output card (ABE04x and ABE056)
The IOC4T panel (rear of rack) contains three terminal strips, identified as J1, J2 and J3 (see
Figure 2-8). Each strip consists of a socket and a mating connector, which contains 16 screw
terminals. The screw terminals can accept wires with a cross section of 1.5 mm
2
.
Figure 2-8 (a) shows the appearance of the IOC4T panel without the three mating
connectors. In this configuration, the engraving showing the terminal definitions is clearly
seen. Figure 2-8 (b) shows the appearance of the panel when the 3 mating connectors are
inserted.

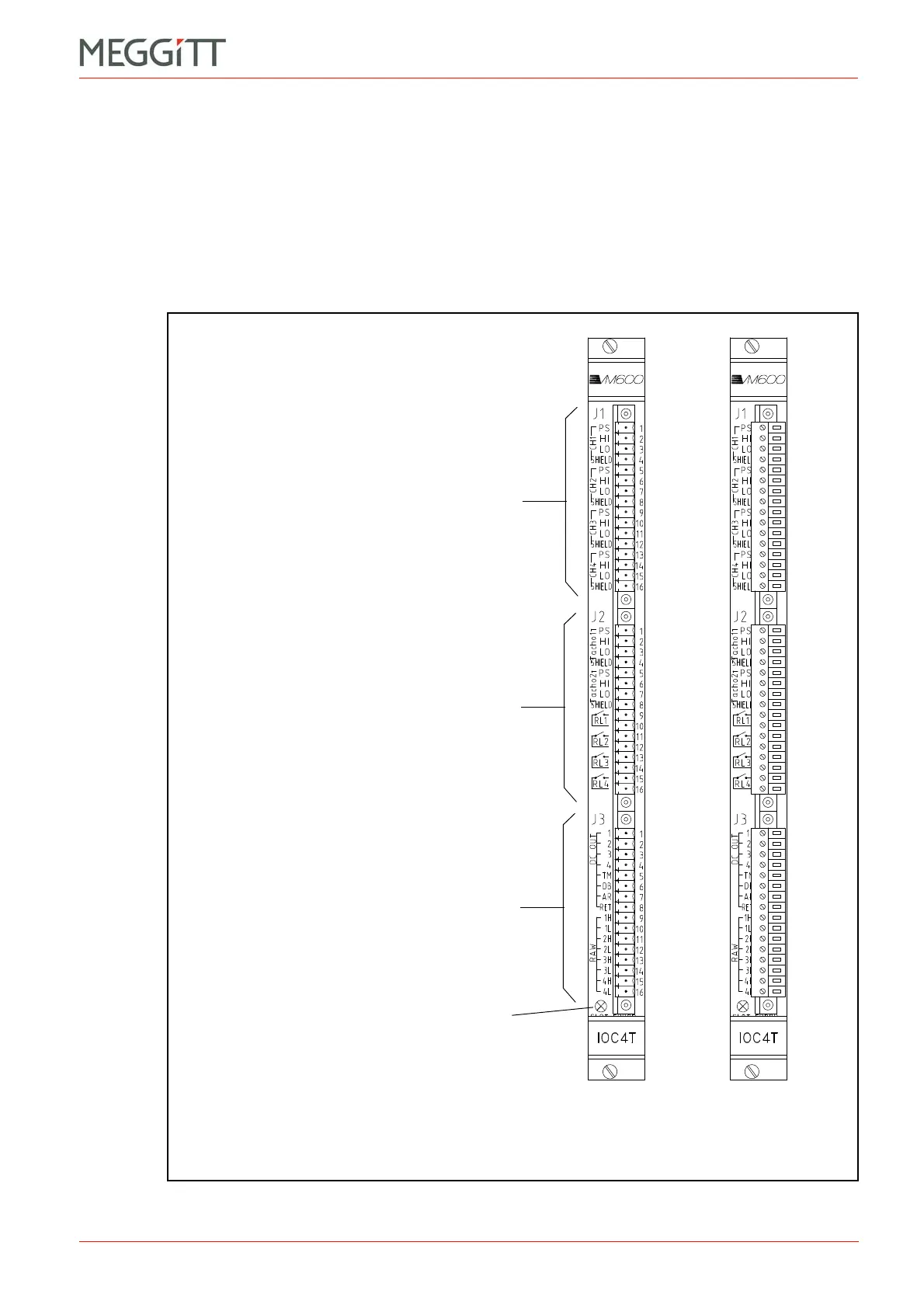

Figure 2-8: IOC4T panel (rear of ABE04x and ABE056 racks)
(a) (b)
SLOT ERROR indicator
The colour of this LED indicates whether the
IOC4T is installed in the correct slot of the
rack:
Green – The card is in the correct slot
Red – Slot number mismatch.
Connector J2
Connector J3
Connector J1
