VM600 MPS hardware manual (standard version) MAMPS-HW/E 9 - 35
Edition 17 - February 2018
Configuring the four DC outputs
CONFIGURATION OF MPC4 / IOC4T CARDS
9.5 Configuring the four DC outputs
The four DC outputs (DC OUT 1, DC OUT 2, DC OUT 3, DC OUT 4) on connector J3 of the
IOC4T card can be individually configured to provide either:
• A current-based signal in the range 4 to 20 mA
• A voltage-based signal in the range 0 to 10 V.
This is achieved by setting jumpers J1242, J1243, J1244, J1245 on the IOC4T card (see
Figure 9-26 and Figure 9-25):
• For a 4 to 20 mA output, place the jumper between contacts 1-2
• For a 0 to 10 V output, place the jumper between contacts 1-3.

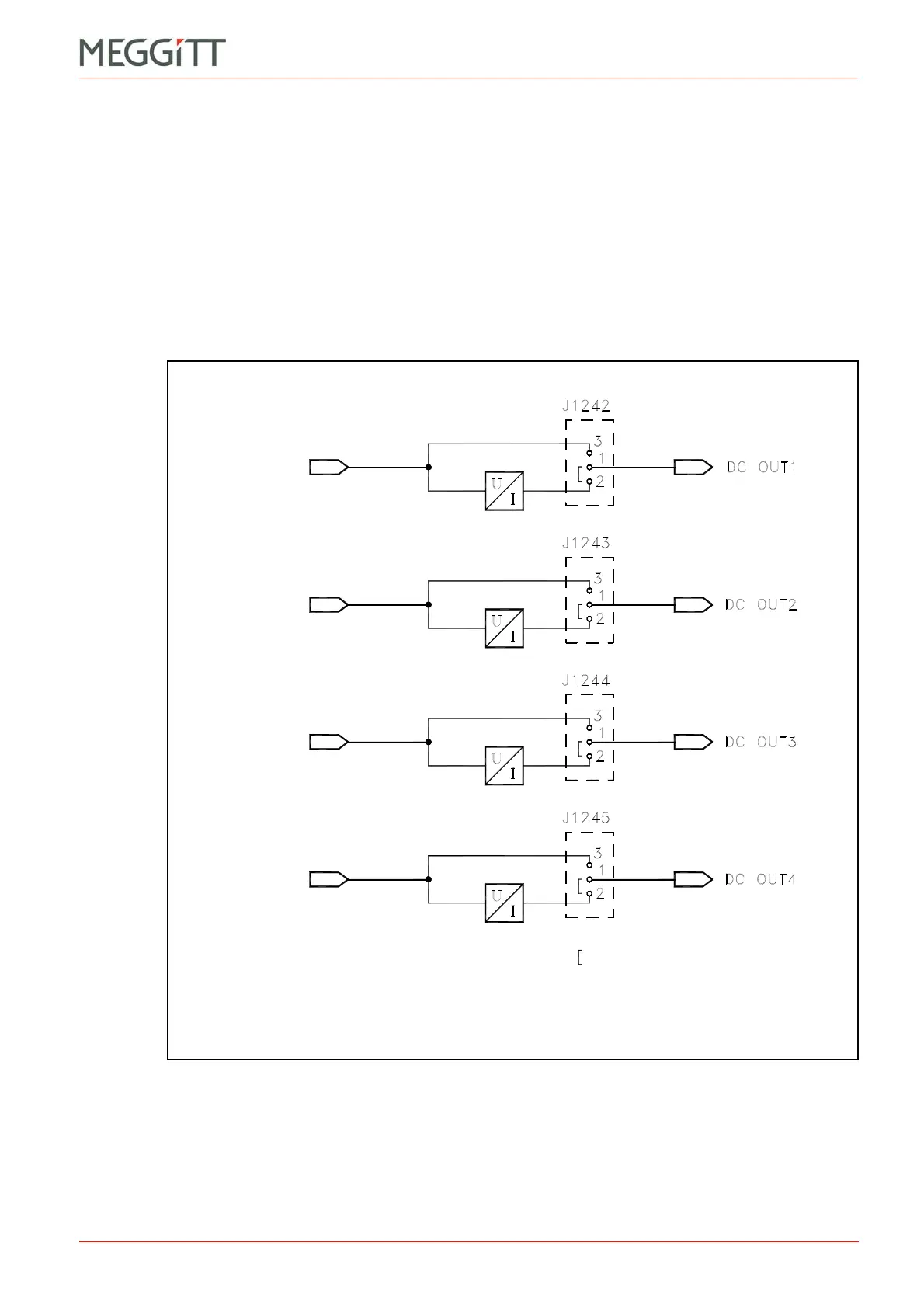

Figure 9-25: Jumpers to select type of DC output (voltage-based or current-based)
Processed
signal *
Processed
signal *
Processed
signal *
Processed
signal *
* From single or dual channel
Shows factory setting
