VM600 MPS hardware manual (standard version) MAMPS-HW/E 2 - 43
Edition 17 - February 2018
RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
2.10.12 Auxiliary sensor power supply
The following versions of the auxiliary sensor power supply (ASPS) are available for
operation with an RPS6U:
• An ASPS intended for use with an AC-mains supply.
NOTE: As it requires an AC-mains supply input, the ASPS can only be used when an
AC-input version of the RPS6U is also mounted in the rack.
The ASPS is mounted in the rear of the rack, adjacent to the rear panel associated with the
RPS6U rack power supply from which it (internally) takes the AC-mains supply. Depending
on whether a single-input or a dual-input rear panel is used as an input to the RPS6U, the
ASPS will mounted in either slots 17 to 18, or slots 15 to 16.
2.10.12.1 Rear panel

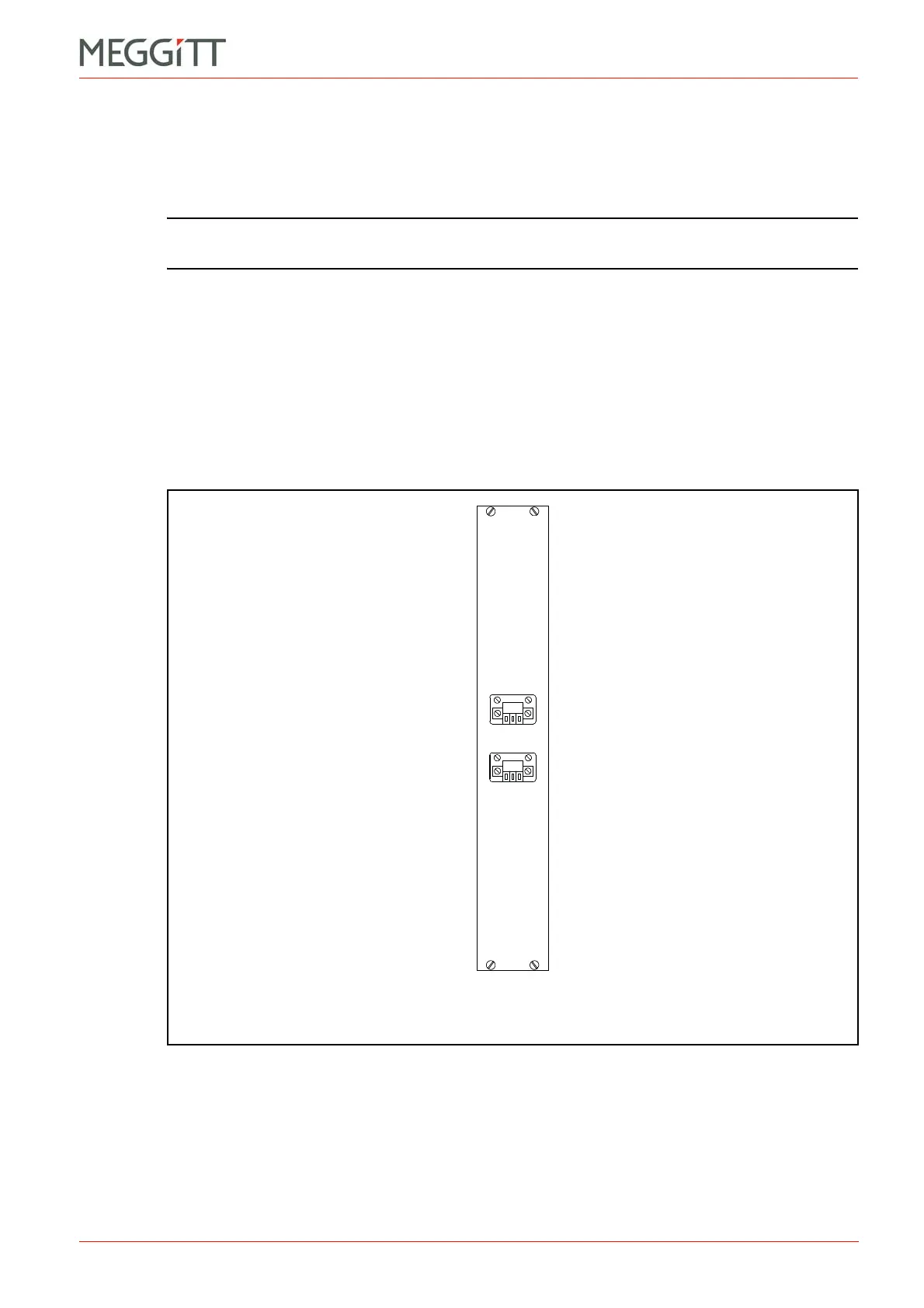

Figure 2-32 shows the panel of the ASPS (rear of ABE04x rack).
Figure 2-32: ASPS intended for use with an RPS6U (AC-mains supply input)
24Vdc - 1.1A
DC OUT #1
Vdc - GND - NC
24Vdc - 1.1A
DC OUT #2
Vdc - GND - NC
