Operating Instructions - CPC6050 107
Modular Pressure Controller
CPC6050
8 Options
• Single Output / Auto Range Version
• Single Output / Dual Channel Version
• Single Supply
• Barometric Reference Transducer (for gauge and absolute emulation)
• Additional Transducers (spare or alternate range)
• Rack Mount Kit
• Fittings
• Remote calibrations sleds (for transducers and/or barometric reference)
• Backplate options
• Manual Contamination Prevention Accessories
• Vacuum Regulator
• Pressure Booster
8.1 Single Output Auto Range Version
The Single Output Auto Range Version has a single output connection on the rear of the instrument that
connects the controlled pressure output for both internal regulator modules of the CPC6050. This version
is capable of controlling pressure over a wide range with a 400:1 turndown. It accomplishes this by auto-
matically switching between the transducers on the internal control modules and also switching between
the two control modules. When congured with four transducers that have contiguous ranges, this Single
Output Auto Range Version of the CPC6050 can calibrate a sensor over a wide range with the highest
possible accuracy and test uncertainty ratio.
8.1.1 Single Output Auto Range Home App
The main operating screen (Home App) of the CPC6050 Single Output Auto Range Version shows a
single auto range or range hold channel. Additionally, all of the setup screens only require global param-
eters so the channel selection buttons of A & B are absent.

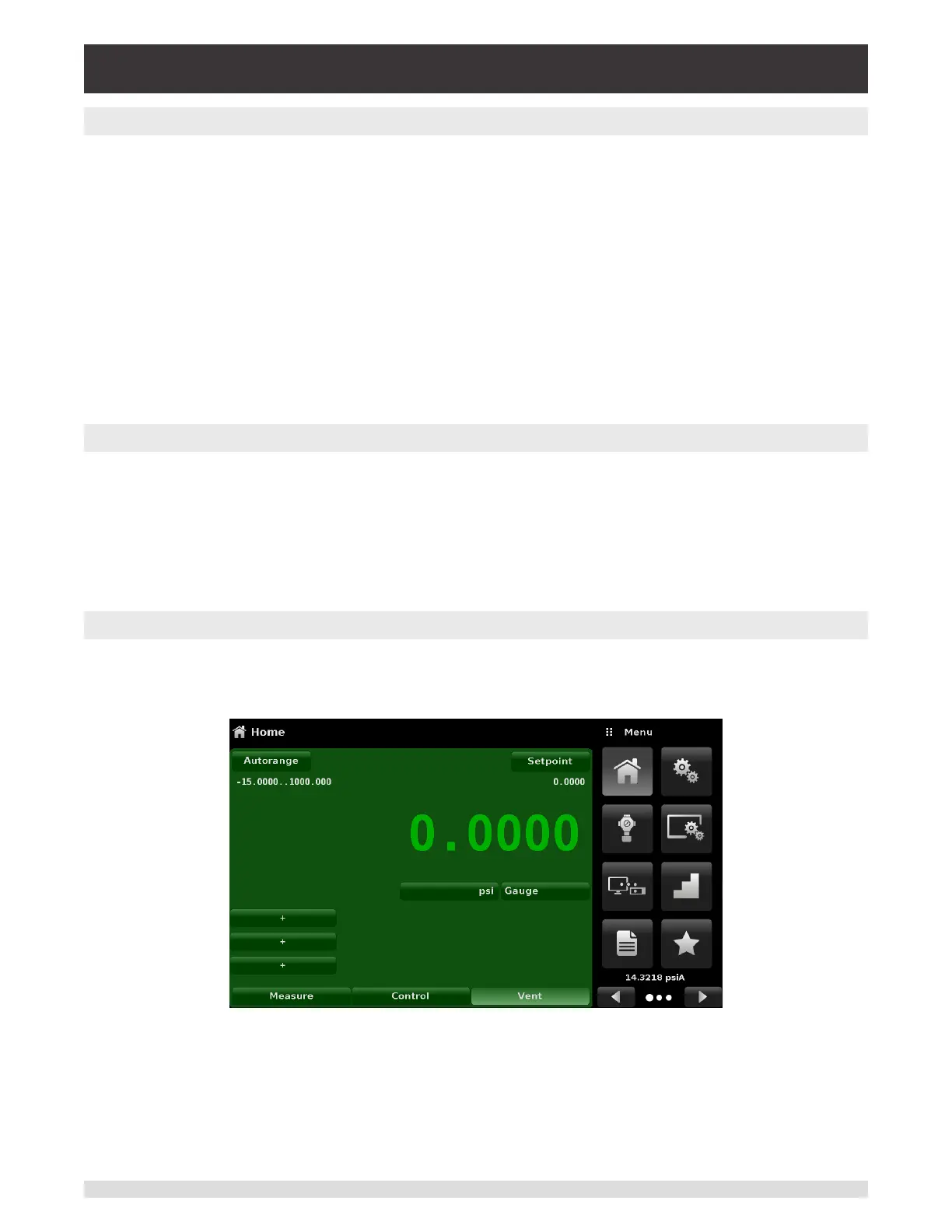

Figure 8.1.1 - Single Output Auto Range Home App
To Next Page
