Operating Instructions - CPC6050 29
Modular Pressure Controller
CPC6050

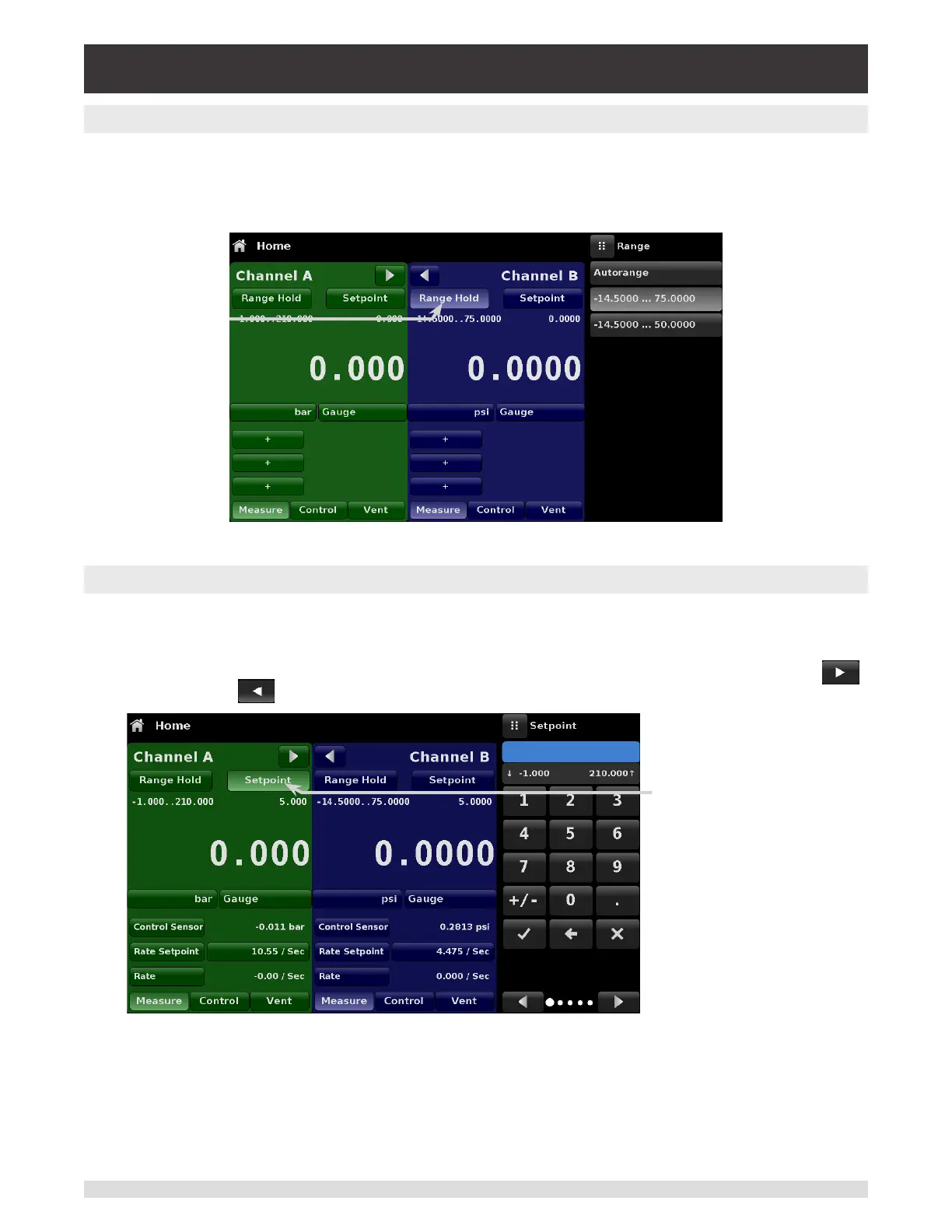

6.4.1.1 Range Hold / Autorange
The Range Hold / Autorange button allows the user to select the active range of the transducers in any
channel. By clicking the Range Hold button, the user can select the active transducer from the primary
and secondary transducers in a channel or utilize the “Autorange” feature to let the instrument automati-
cally select the active range based on the current pressure value.
Figure 6.4.1.1 - Range Hold Button
6.4.1.2 Control Setpoint
The Setpoint button allows the user to enter the desired pressure value to be controlled by the instru-
ment. There are multiple ways of entering the control setpoint: numeric keypad, step increments, percent-
age entry, digital step or a program data entry. These methods can be accessed by the user by pressing
the “Setpoint” button and the various setpoint entry methods can be navigated with the Next Page [ ]
and Previous Page [ ] buttons.
Setpoint button
Figure 6.4.1.2 – Setpoint Button
Range Hold button
To Next Page
