112 Operating Instructions - CPC6050
Modular Pressure Controller
CPC6050
8.6 Rack Mount Kit (CPX-A-C5-U or CPX-A-C5-T)
A rack mount kit allows the customer to install a CPC6050 into a standard 19” instrument rack. It includes
mounting tabs, rack rail sides and a selectable adapter kit.

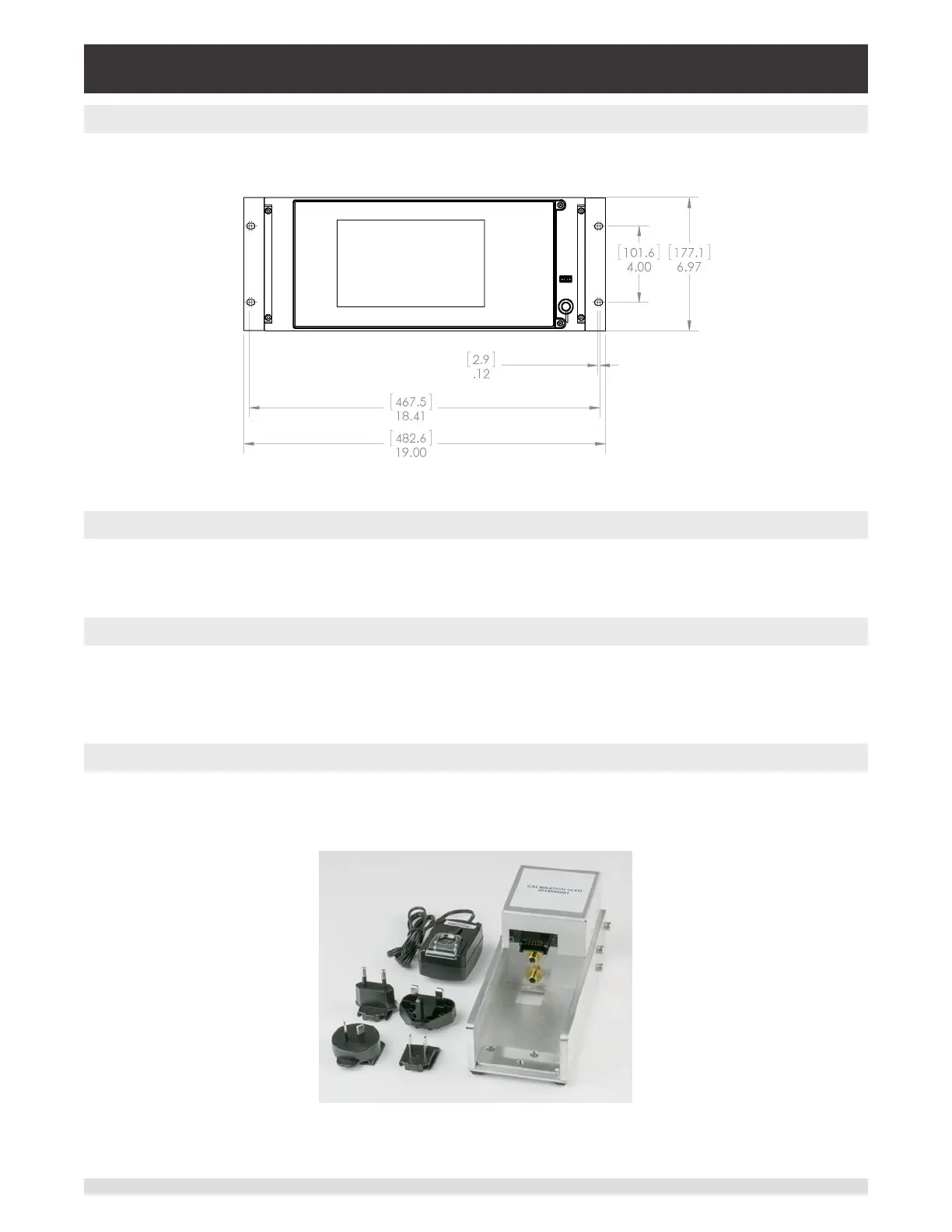

Figure 8.5 - Rack Mount Kit
8.7 Fittings
A variety of ttings are available at the time of order on transducers with a max range of ≤ 3,060 psi (211
bar), or the CPC6050 can be ordered without adaptor ttings. Available ttings are shown in Section 9.2 -
Spare Parts. The barometric reference comes with a standard barb tting.
8.8 Remote Calibration
A remote calibration sled, power supply, cable and software are available to calibrate the optional baro-
metric reference and internal transducers outside of the CPC6050. In both cases a PC with an RS-232
connection is required. Both kits are supplied with an instruction manual. For instructions to remove the
internal transducers and the barometric reference, see section 9.3 Transducer Removal.
8.8.1 Remote Calibration Kit for Internal Transducers (CPX-A-C5-4)
The cable / power supply used to calibrate the internal transducers remotely can be ordered as an option
(pn # 0017245002). Calibration of each internal transducer can be performed remotely using the cable, a
PC, and software provided.
Figure 8.7.1 - Remote Calibration Kit for Internal Transducer
