6.3 Application Selection and Parameter Inputs
The application selection area on the right one fourth of the screen (see Figure 6.1.2 - Display Screen
Features) is the area where setup, information, calibration, service and other Apps can be chosen.
Multiple pages of application selections can be accessed by pressing the Next Page button [ ] or
by pressing the Previous Page button [ ]. A series of horizontally placed circles on the bottom right
indicate the active page by a larger circle. As each App is chosen, related application parameters will
appear on the left three fourth of the screen along with the name of the application, and a reduced size
icon in the top title section. When a parameter is chosen, related selections, sliding scales or a data entry
key pad will appear in the input area on the right where the application selection buttons were previously

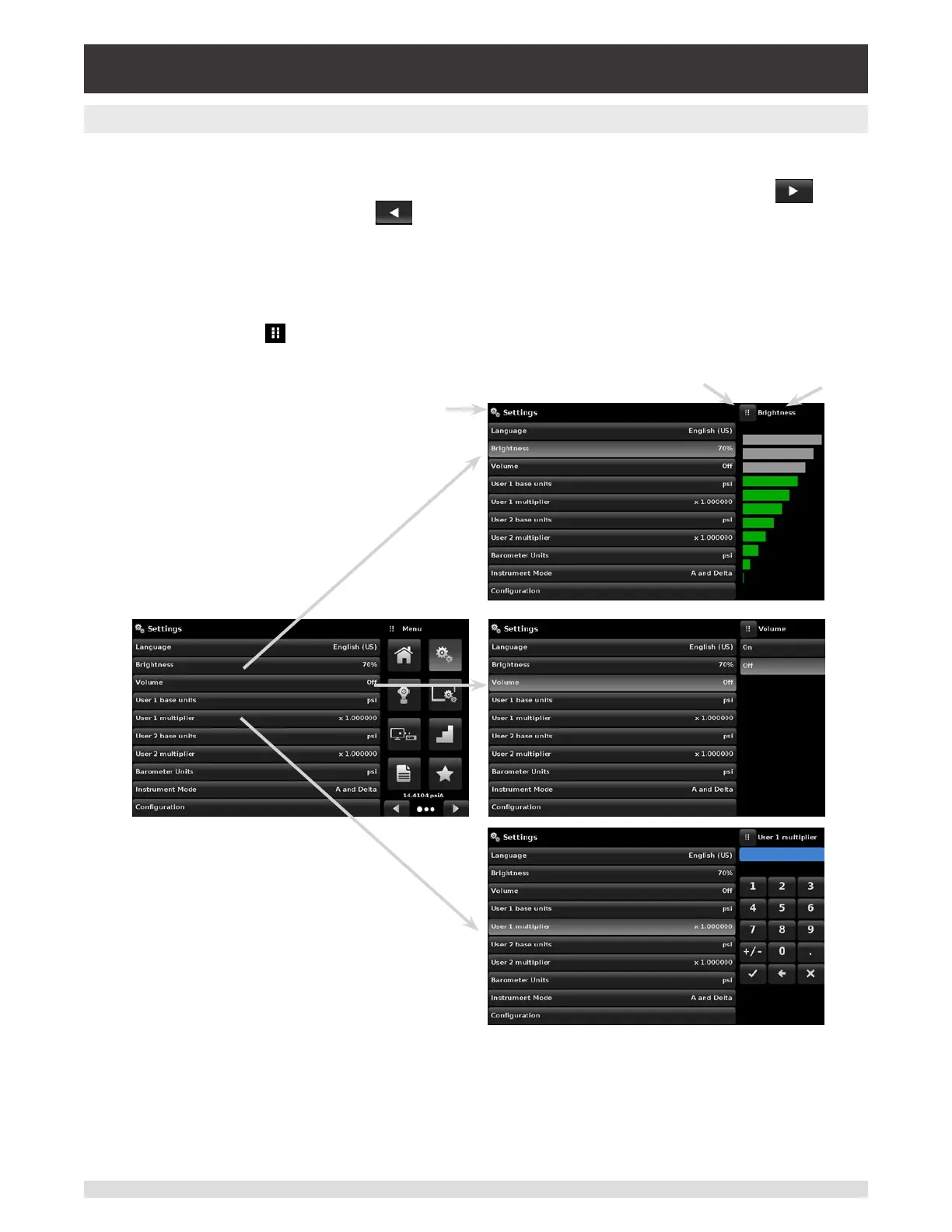

displayed. An example of each type of input is shown below. To return to the App selection menu, simply
press the Menu button [ ] above the input area. The purpose and use of each selection and menu is
intuitively apparent and will become second nature with minimal exposure to the menu structure.
