8.12 Pressure Booster
To control pressure, the CPC6050 requires a pressure supply of 10% above the full scale of the instru-
ment. The Model 75 Pressure Booster System provides the ability to boost bottle pressure up to the
supply pressure requirements of all possible CPC6050 range congurations while maximizing gas bottle/
cylinder usage.
The Model 75 is a single piston air driven gas booster mounted in a heavy duty roll bar frame. The unit
includes an operator control panel with gauges for supply pressure, output reference pressure and an
output vent valve. The system requires shop air to drive the booster and a minimum of 300 psi to 3000
maximum inlet pressure (clean dry air or Nitrogen).
Table 8.12 – Specications for Input Supply Pressure and Output Pressure
Input Supply
Pressure
Minimum: 300 psi
Maximum: 3000 psi
Media: Clean Dry Inert Gas (Nitrogen preferred)
Output Pressure 6500 psi typical
7000 psi relief valve setting
Please refer to the Model 75 data sheet (CDS075) for additional information and specications, available
on our website at www.mensor.com.

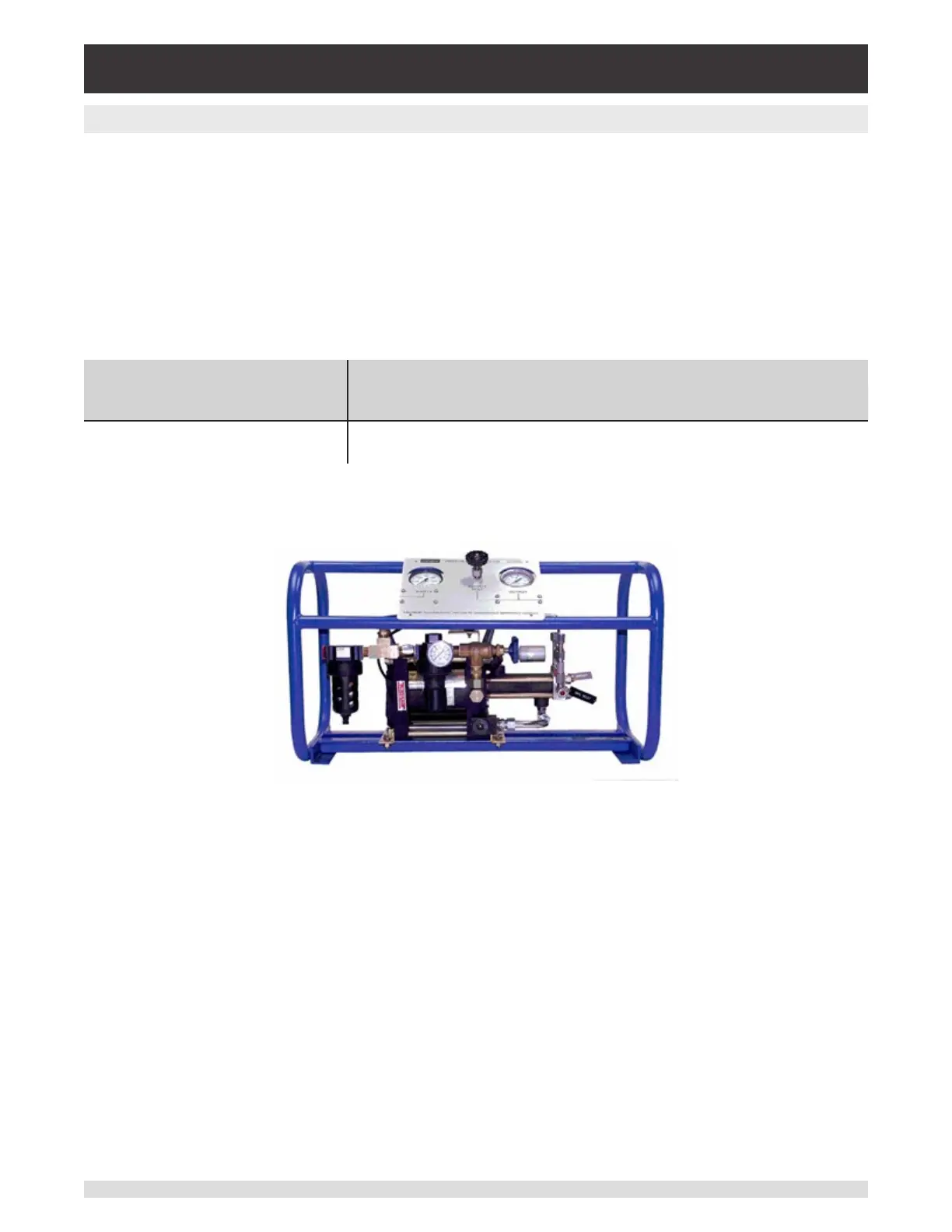

Figure 8.12 – Model 75 Pressure booster
