6.4.3.1 Control Behavior for SVR Modules
The Control Behavior button in the Control Settings App for the SVR Modules provides a choice be-
tween dierent levels of control behavior ranging from “0” to “100”, where “0” represents lowest overshoot
control mode "Precision" and “100” represents "High Speed" control mode. The "Precision" or the "High
Speed" modes can be chosen simply by pressing the corresponding button at the bottom of the screen.
The Control Behavior is preset to “50” for Precision control mode and to “100” for High Speed control
mode. The Control Behavior can be changed using the sliding scale. This will change the control mode to
“Custom”. Figure 6.4.3.1 shows the sliding bar to adjust control behavior.

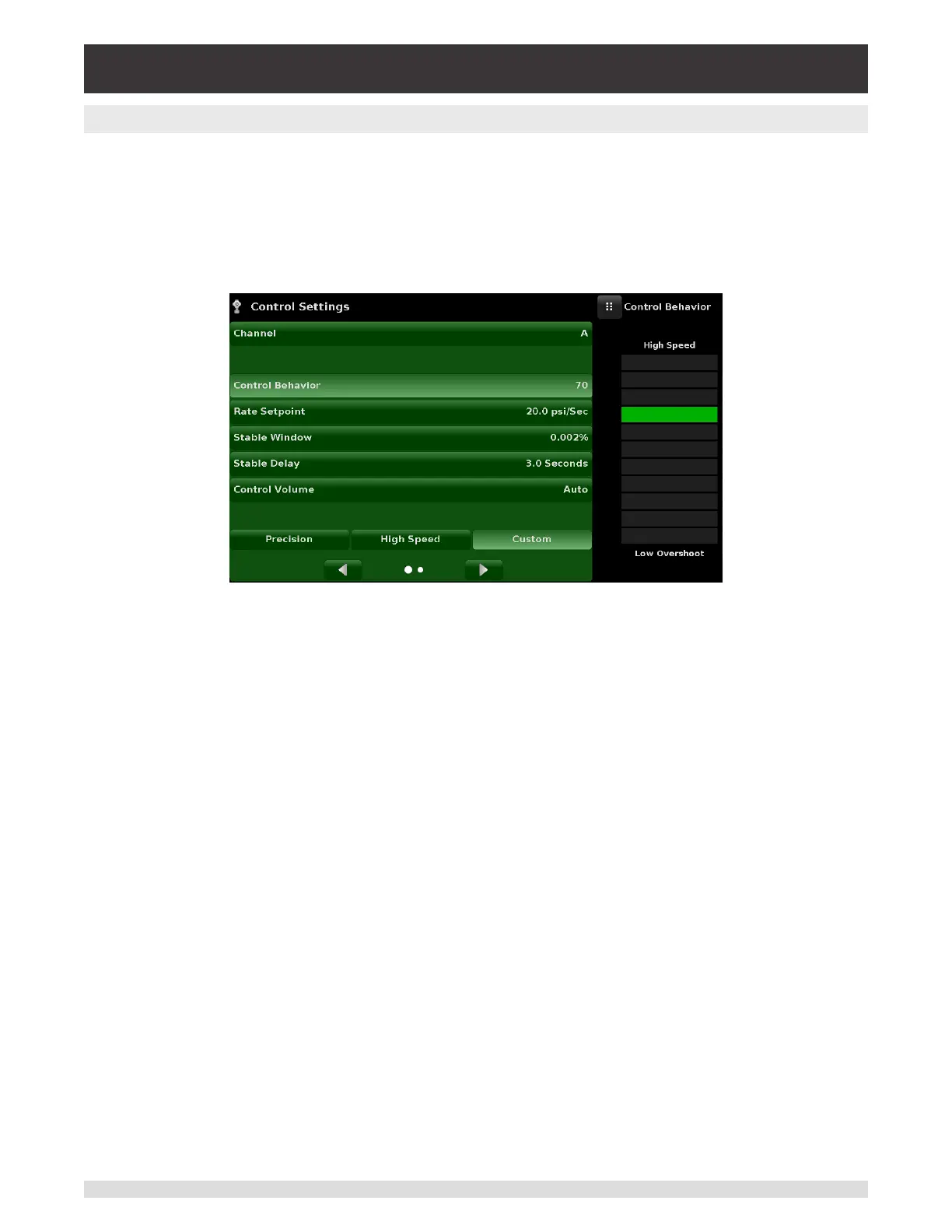

Figure 6.4.3.1 - Control Behavior SVR Module
