6.4.7 Programs Application
The Programs Application is used to create, view and edit programs that are used to automati-
cally run a sequence of commands within the CPC6050. The Programs App screen displays
the contents of the rst written program in read only mode by default (gure 6.4.7-A). User can
load, edit and delete other saved and predened programs by clicking on the title of the current
program and then selecting the desired program sequence from the sidebar (gure 6.4.7-B).

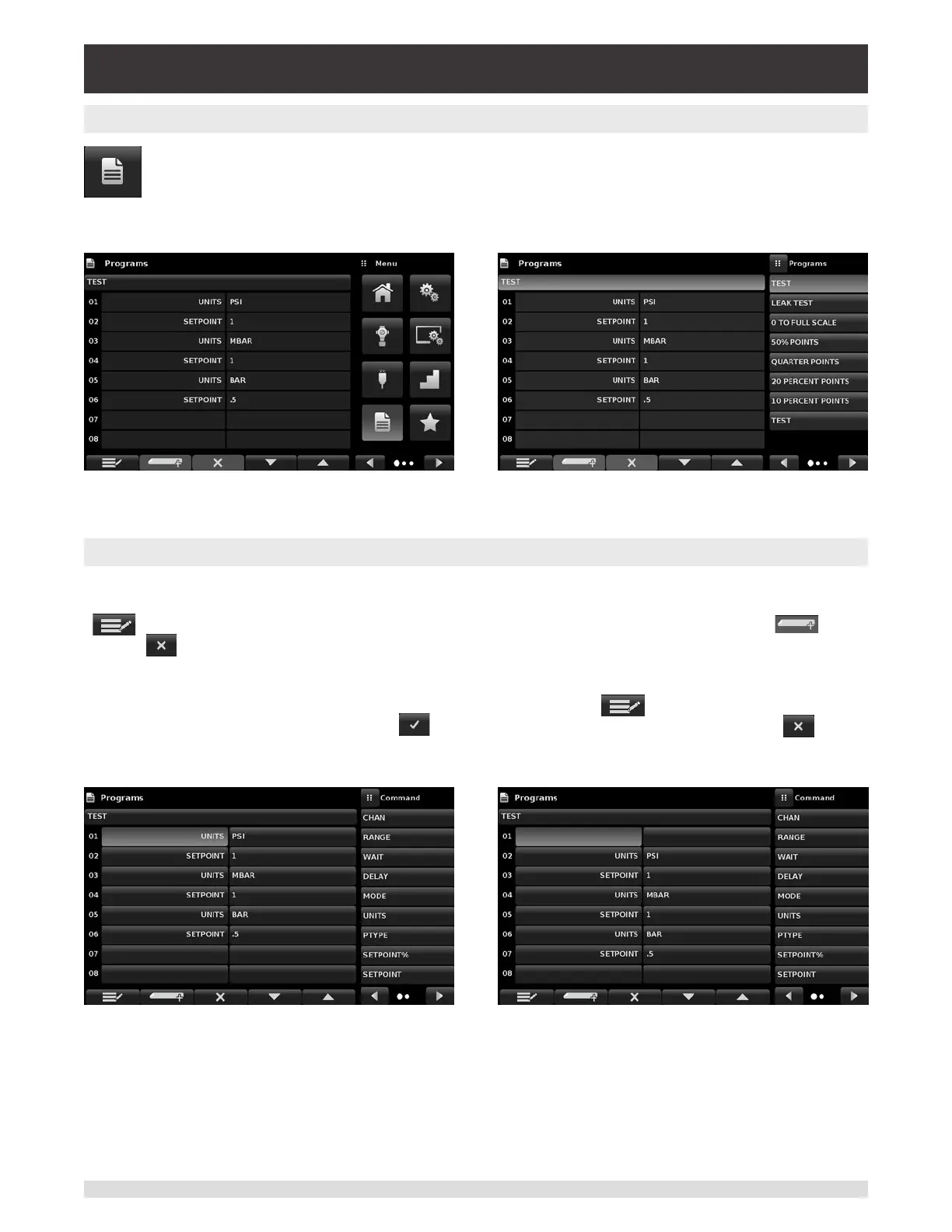

Figure 6.4.7-A – Programs Application Figure 6.4.7-B – Programs Selection
6.4.7.1 Edit Programs
By default the programs are available in read only mode to prevent accidental changes to existing pro-
grams. The users can edit existing programs or create steps in new ones by clicking on Edit Program
[ ] button (gure 6.4.7.1-A). This makes the program editable and also activates the Insert [ ] and
Delete [ ] buttons which are otherwise just labels and can’t be clicked by the user. A series of pre-
dened commands can be chosen to write the steps of a program. Selection of commands and data in
each sequential line will create a draft of resulting command sequence in the selected program (gure
6.4.7.1-B). Upon exiting the edit mode by pressing the Edit Program [ ] button, the system will ask
“Save changed programs?” Pressing the [ ] button will accept the changes, pressing the [ ] will
revert back to the old program. A list of available commands, data values and their functions are listed in
table 6.4.7.1.
Figure 6.4.7.1-A – Editable Programs App Figure 6.4.7.1-B – New Line Creation
